Lumonic Toroidal Transformer, 1000 VA, 2x 12 V + 24 V, 230 V – toroidal transformer, 230 V primary, 2x 12 V + 24 V simultaneously, for amplifier construction, power supplies, lighting

Skip image gallery
Lumonic Toroidal Transformer, 1000 VA, 2x 12 V + 24 V, 230 V – toroidal transformer, 230 V primary, 2x 12 V + 24 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 1000 VA, 2x 12 V + 24 V, 230 V – toroidal transformer, 230 V primary, 2x 12 V + 24 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 1000 VA, 2x 12 V + 24 V, 230 V – toroidal transformer, 230 V primary, 2x 12 V + 24 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 1000 VA, 2x 12 V + 24 V, 230 V – toroidal transformer, 230 V primary, 2x 12 V + 24 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 1000 VA, 2x 12 V + 24 V, 230 V – toroidal transformer, 230 V primary, 2x 12 V + 24 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 1000 VA, 2x 12 V + 24 V, 230 V – toroidal transformer, 230 V primary, 2x 12 V + 24 V simultaneously, for amplifier construction, power supplies, lighting

Available, delivery time: 1-3 days

Article-No.: IT-011527
Shipping weight: 8.3 kg
Shipping Zone: 90
Quantity Unit price
1 - 2
€140.00
3 - 5
€138.60
6 - 10
€137.20
11 - 20
€135.80
21 - 50
€134.40
From 51
€133.00
Content: 1 Stück

Stk
detail.currentStock
Product description
✔ MULTIPLE VOLTAGES, ONE TRANSFORMER: The toroidal transformer provides various output voltages, thereby replacing several individual transformers. This saves space and keeps the wiring organized.

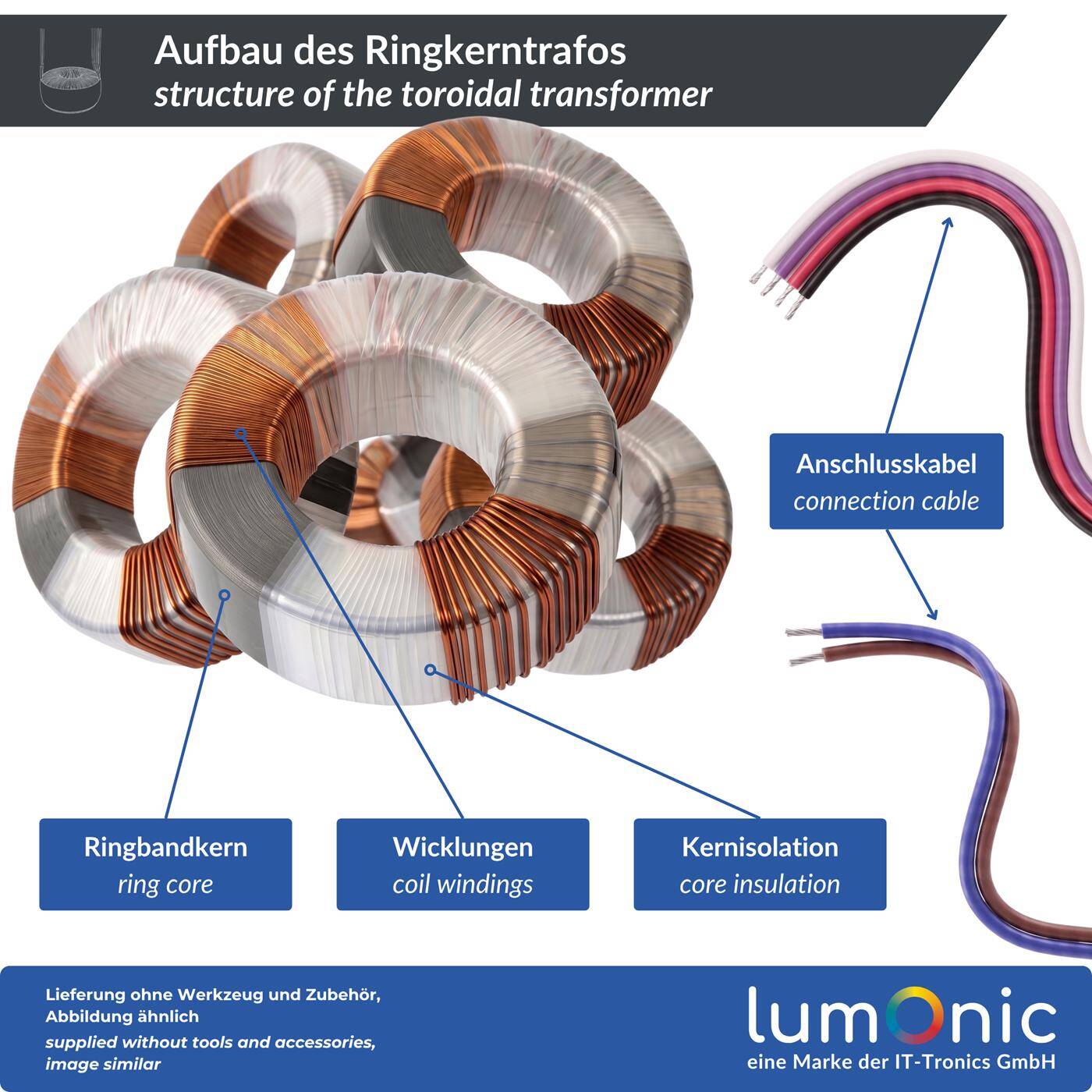

✔ COMPACT TOROIDAL DESIGN: The toroidal design is flat and space-saving, and, due to its construction, generates a low magnetic stray field. ALL voltage specifications refer to alternating current (AC).

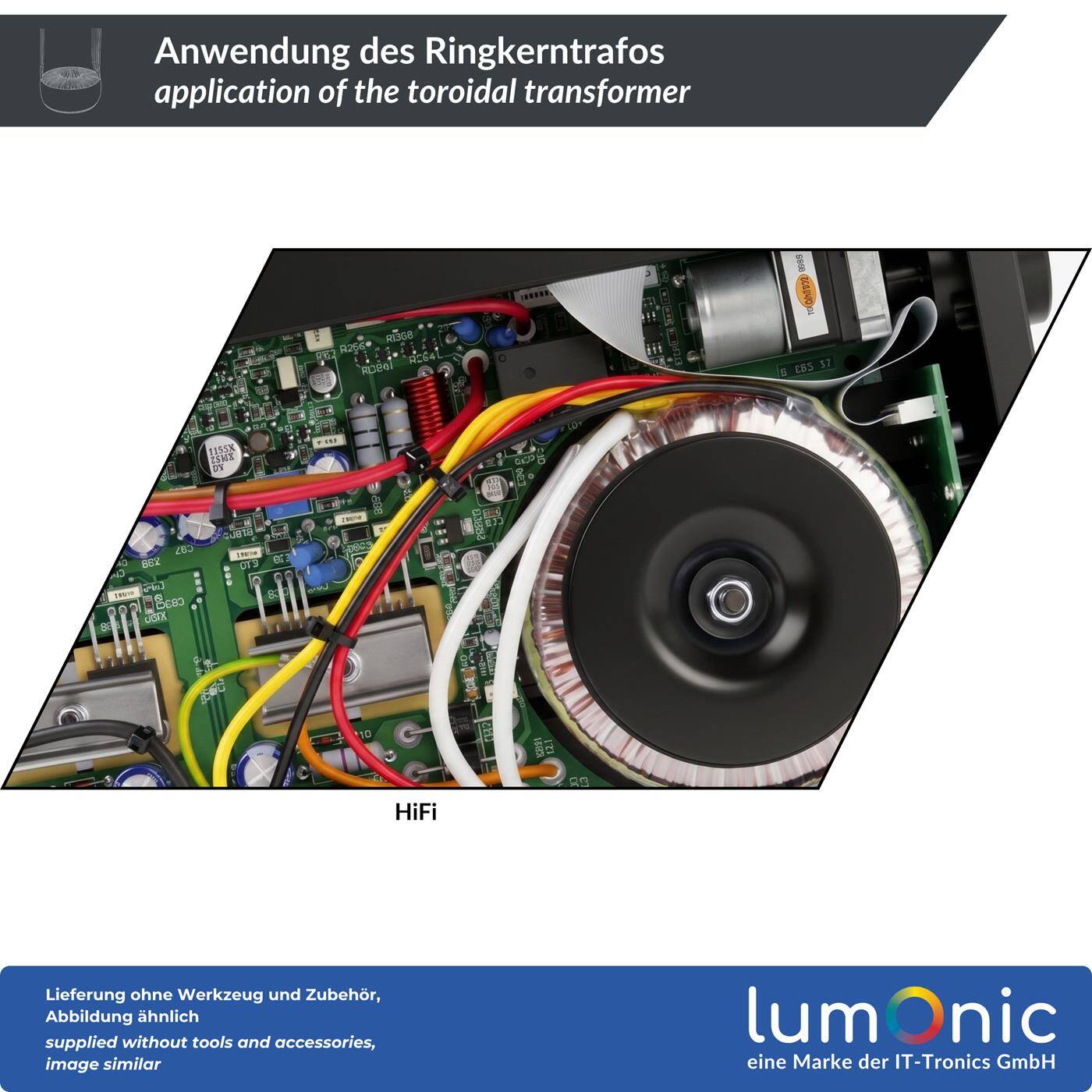

✔ THREE VOLTAGES AT ONCE: Two individual voltages and the double voltage are available simultaneously—not just as options. Suitable, for example, for amplifier construction and lighting.
✔ VOLTAGE RATING 4.4 KV: The primary and secondary windings are insulated from each other at 4.4 kV. The winding is rated for Temperature Class B (up to 130 °C). Open-circuit voltage: 2 × 12.6 V + 25.2 V.

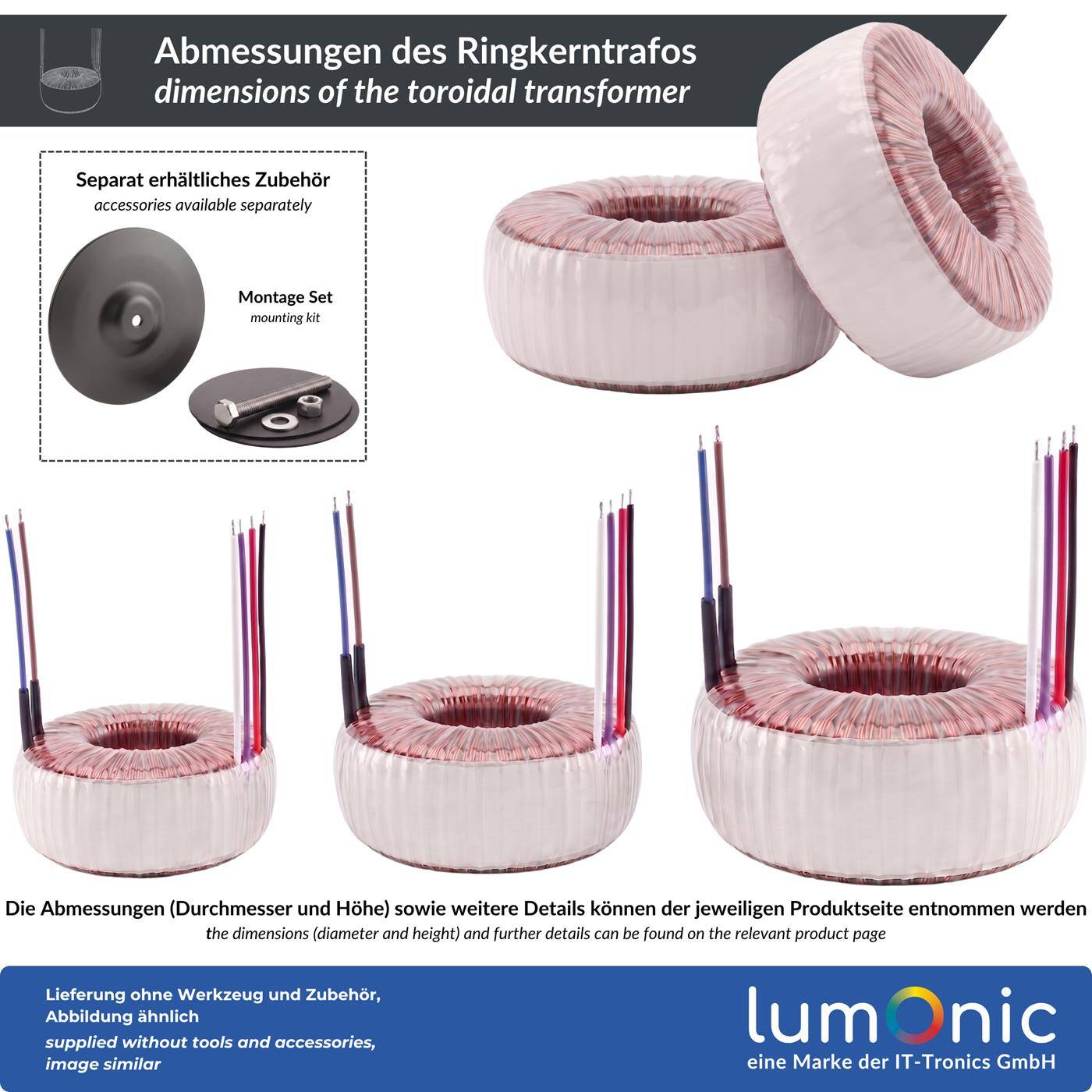

✔ EXACTLY THE MODEL YOU NEED: 1000 VA, secondary output: 2x 12 V and 24 V available simultaneously, 20.83 A per tap. Dimensions: Ø 195 x 65 mm. Includes: 1 transformer (mounting kit sold separately).
