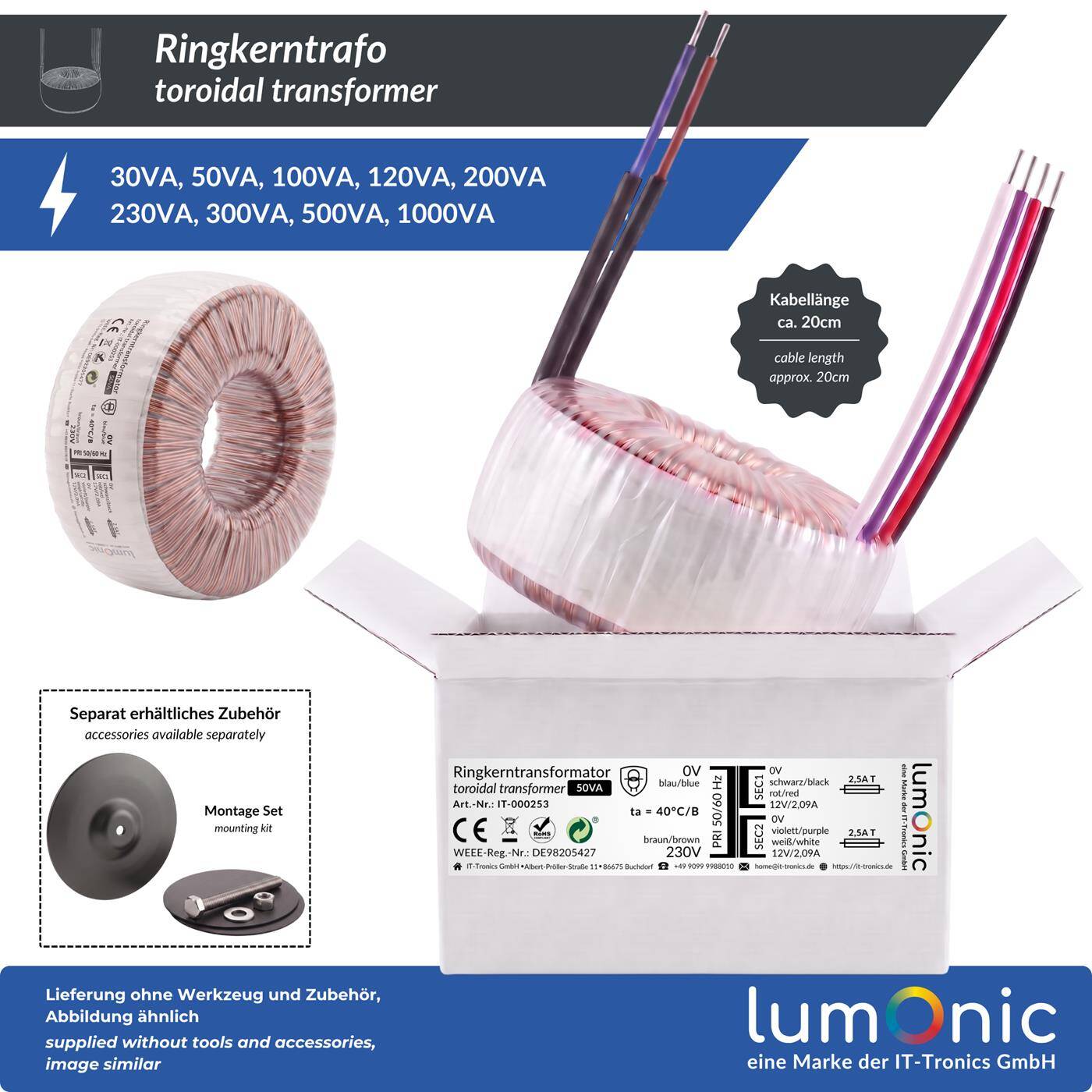

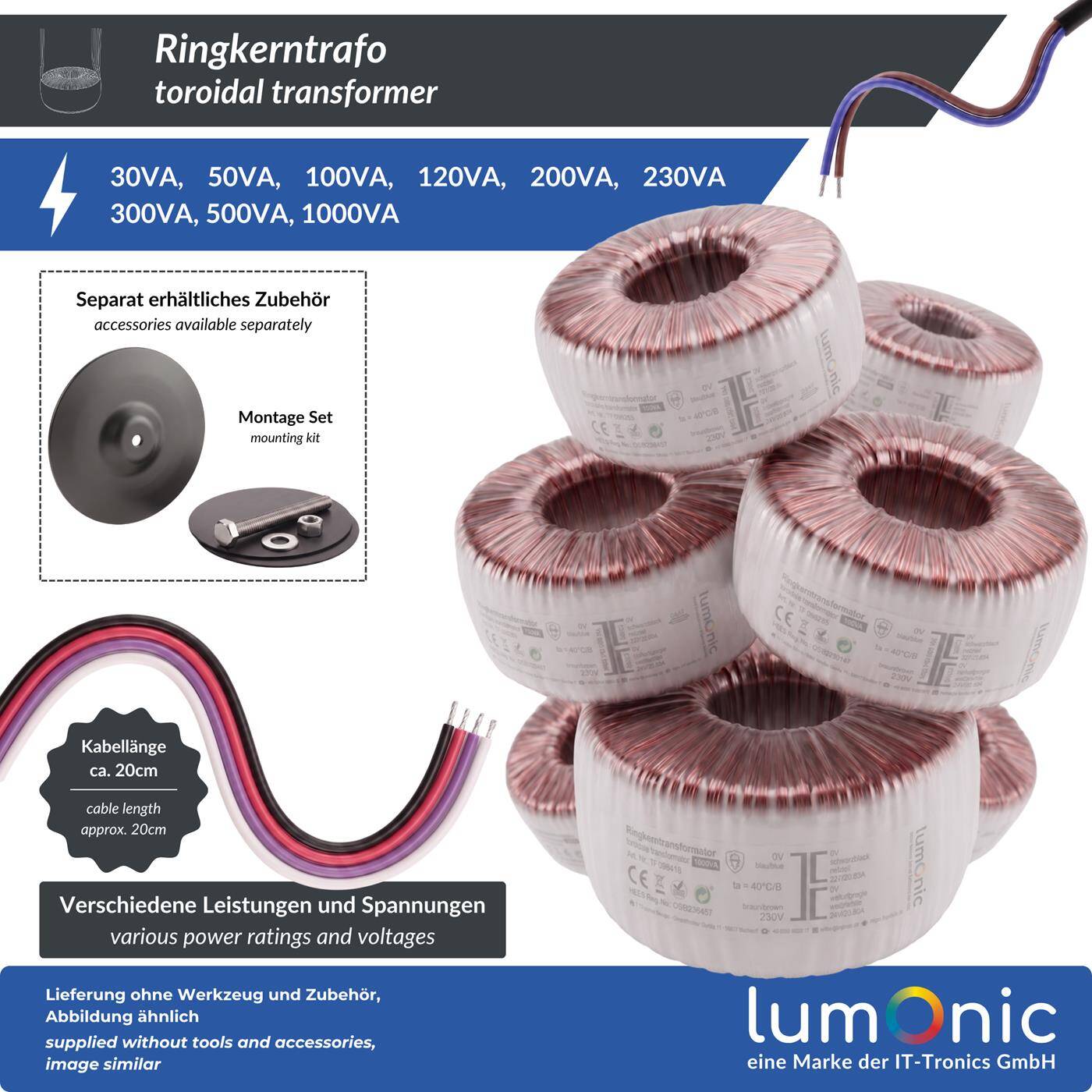

Lumonic Toroidal Transformer, 200 VA, 2x 15 V + 30 V, 230 V - toroidal transformer, 230 V primary, 2x 15 V + 30 V simultaneously, for amplifier construction, power supplies, lighting

Skip image gallery
Lumonic Toroidal Transformer, 200 VA, 2x 15 V + 30 V, 230 V - toroidal transformer, 230 V primary, 2x 15 V + 30 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 200 VA, 2x 15 V + 30 V, 230 V - toroidal transformer, 230 V primary, 2x 15 V + 30 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 200 VA, 2x 15 V + 30 V, 230 V - toroidal transformer, 230 V primary, 2x 15 V + 30 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 200 VA, 2x 15 V + 30 V, 230 V - toroidal transformer, 230 V primary, 2x 15 V + 30 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 200 VA, 2x 15 V + 30 V, 230 V - toroidal transformer, 230 V primary, 2x 15 V + 30 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 200 VA, 2x 15 V + 30 V, 230 V - toroidal transformer, 230 V primary, 2x 15 V + 30 V simultaneously, for amplifier construction, power supplies, lighting

Available, delivery time: 1-3 days

Article-No.: IT-011523
Shipping weight: 2 kg
Shipping Zone: 70
Quantity Unit price
1 - 5
€52.00
6 - 10
€50.96
11 - 20
€49.92
21 - 50
€49.40
51 - 100
€48.88
From 101
€48.36
Content: 1 Stück

Stk
detail.currentStock
Product description
✔ MULTIPLE VOLTAGES, ONE TRANSFORMER: The toroidal transformer provides various output voltages, thereby replacing several individual transformers. This saves space and keeps the wiring organized.

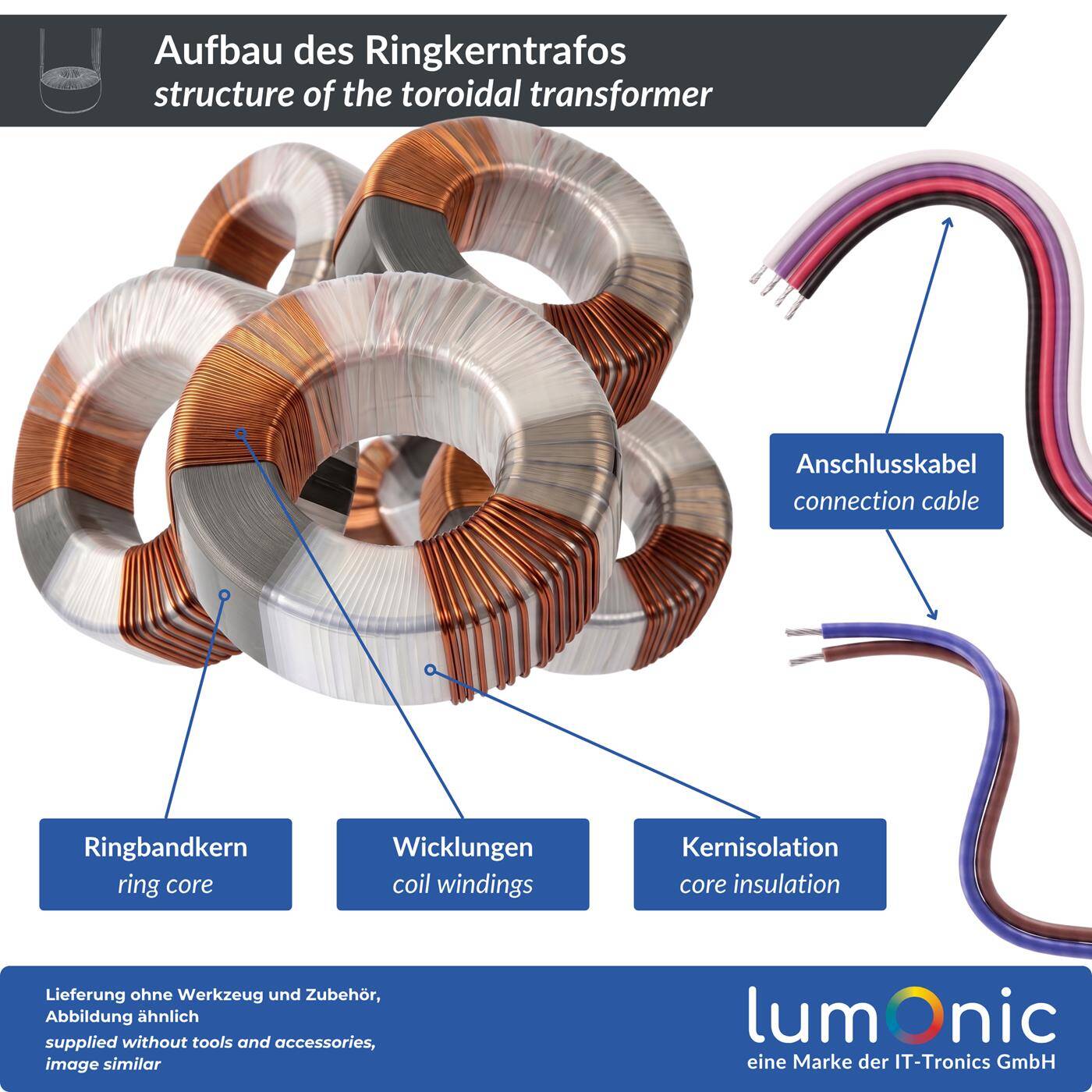

✔ COMPACT TOROIDAL DESIGN: The toroidal design is flat and space-saving, and, due to its construction, generates a low magnetic stray field. ALL voltage specifications refer to alternating current (AC).

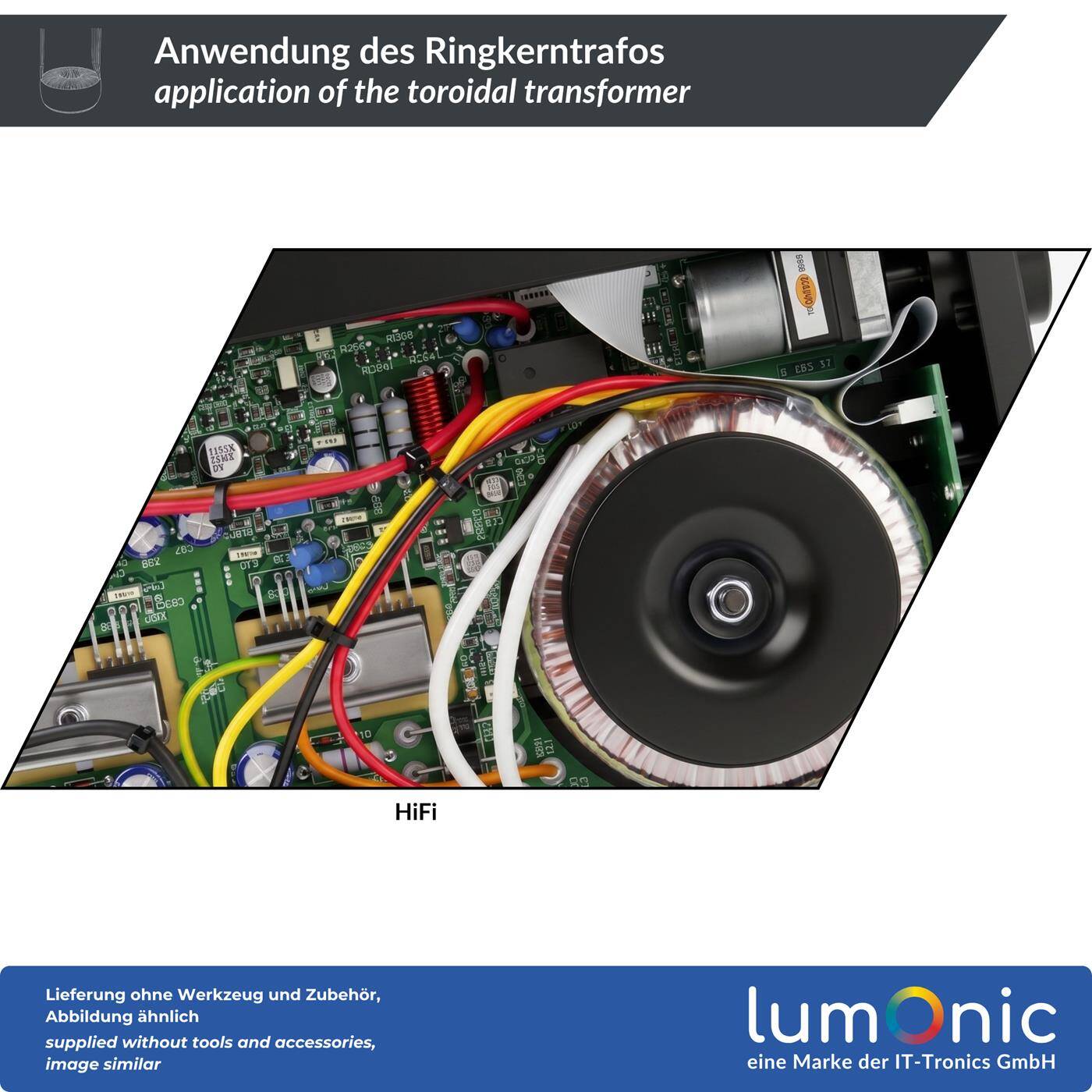

✔ THREE VOLTAGES AT ONCE: Two individual voltages and the double voltage are available simultaneously—not just as options. Suitable, for example, for amplifier construction and lighting.
✔ VOLTAGE RATING 4.4 KV: The primary and secondary windings are insulated from each other at 4.4 kV. The winding is rated for Temperature Class B (up to 130 °C). Open-circuit voltage: 2 × 16.2 V + 32.4 V.

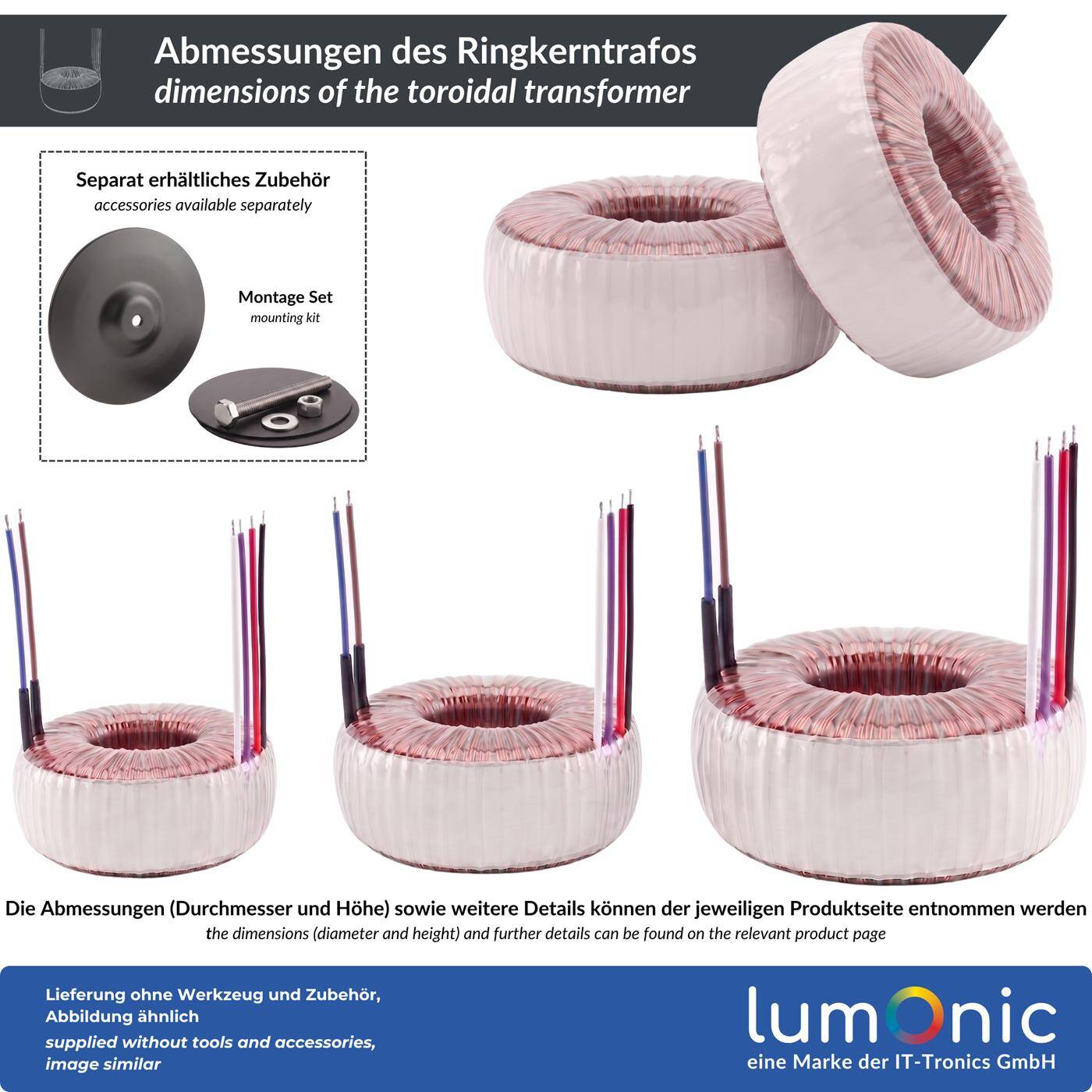

✔ EXACTLY THE MODEL YOU NEED: 200 VA, secondary output: 2x 15 V and 30 V available simultaneously, 3.33 A per tap. Dimensions: Ø 113 x 45 mm. Includes: 1 transformer (mounting kit sold separately).
