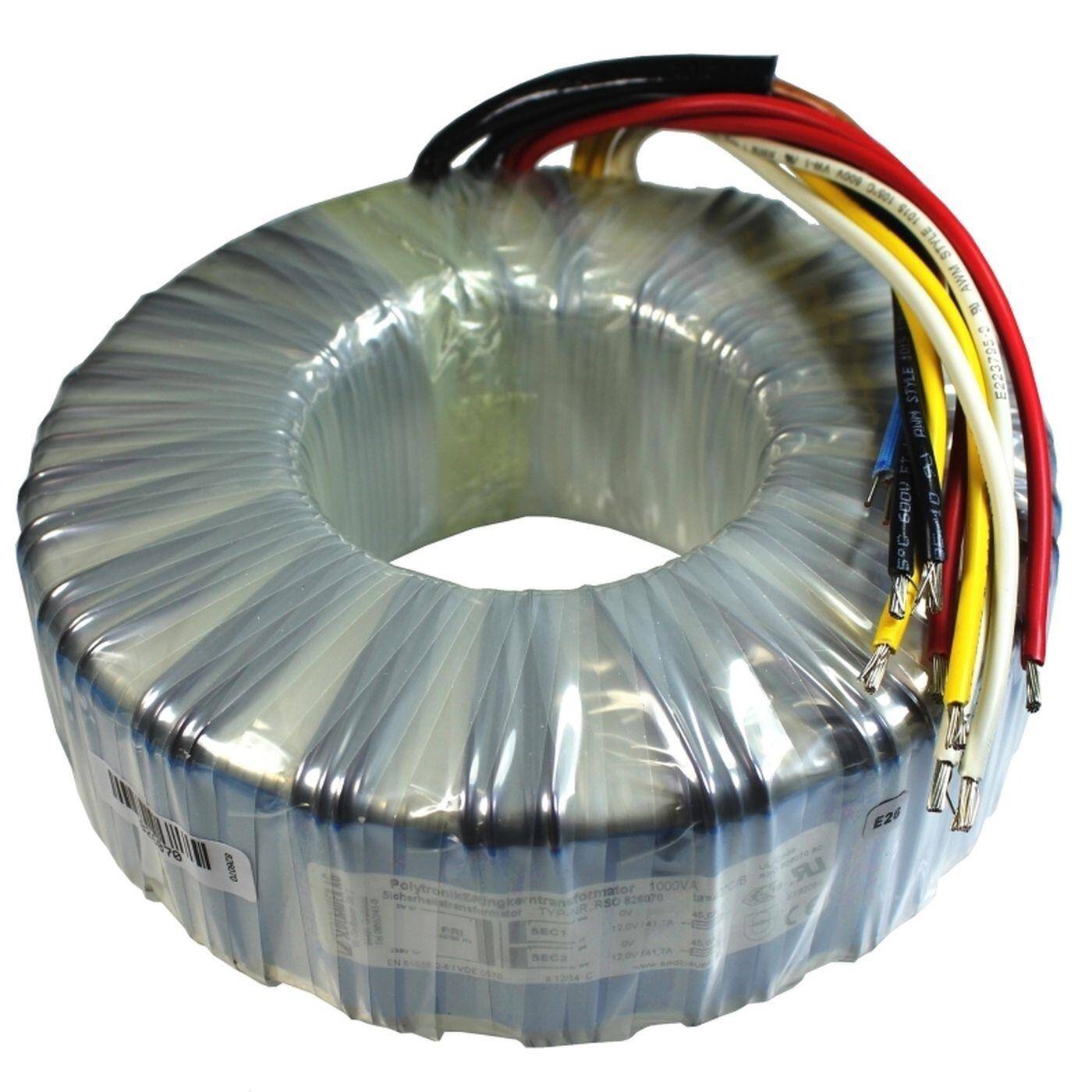

Toroidal transformer 1000VA 230V 2x30V 60V Lumonic RTO-826072
Available, delivery time: 1-3 days
Article-No.:
IT-005419
Model:
RTO-826072
Shipping weight:
8.3 kg
Shipping Zone:
90
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€170.00*
|
| 3 - 5 |
€168.30*
|
| 6 - 10 |
€166.60*
|
| 11 - 20 |
€164.90*
|
| 21 - 50 |
€163.20*
|
| From 51 |
€161.50*
|
Technical specifications
| Power: | 1000VA |
|---|---|

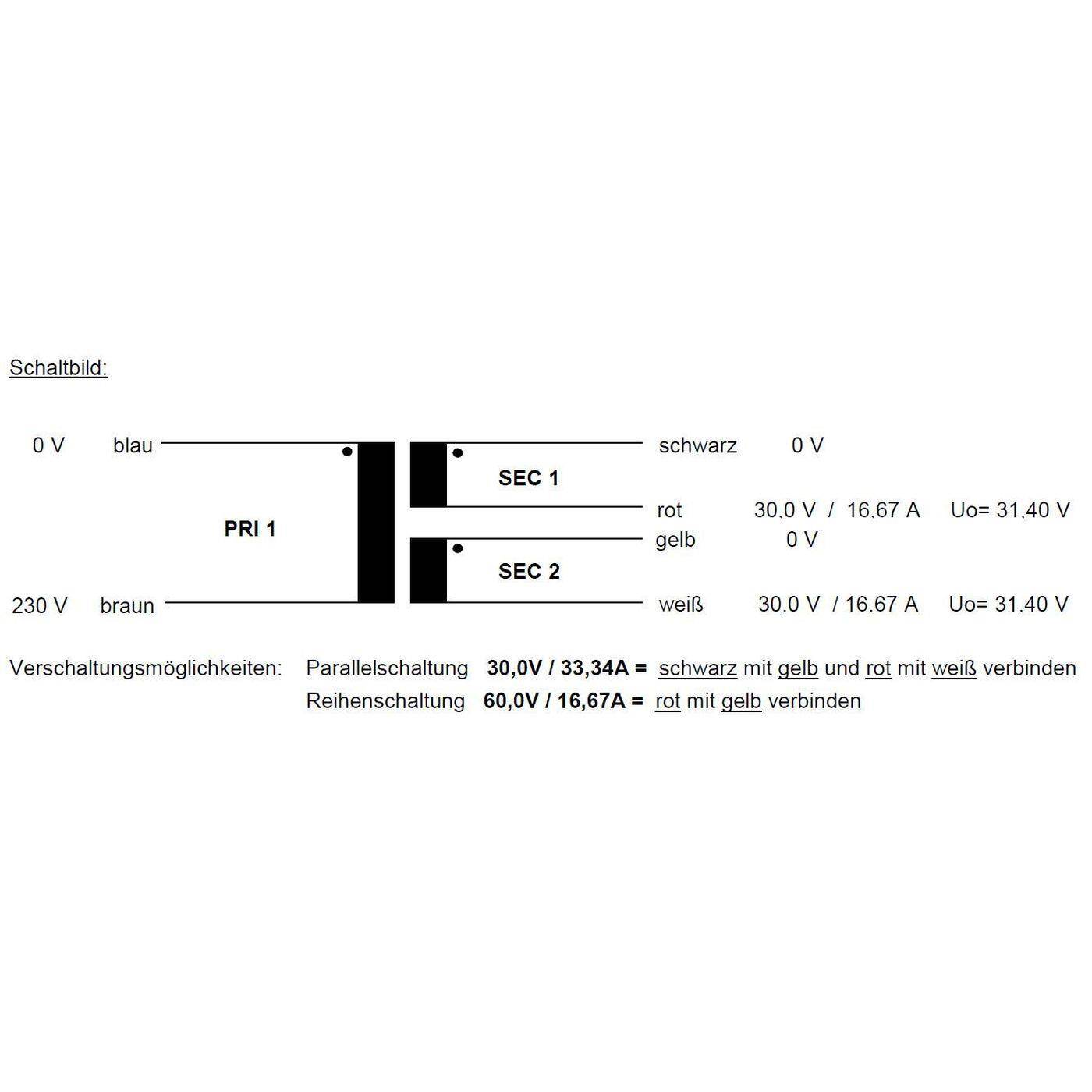

| Output voltage: | 2x30V 60V |
| Output current: | 2x16,67A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |

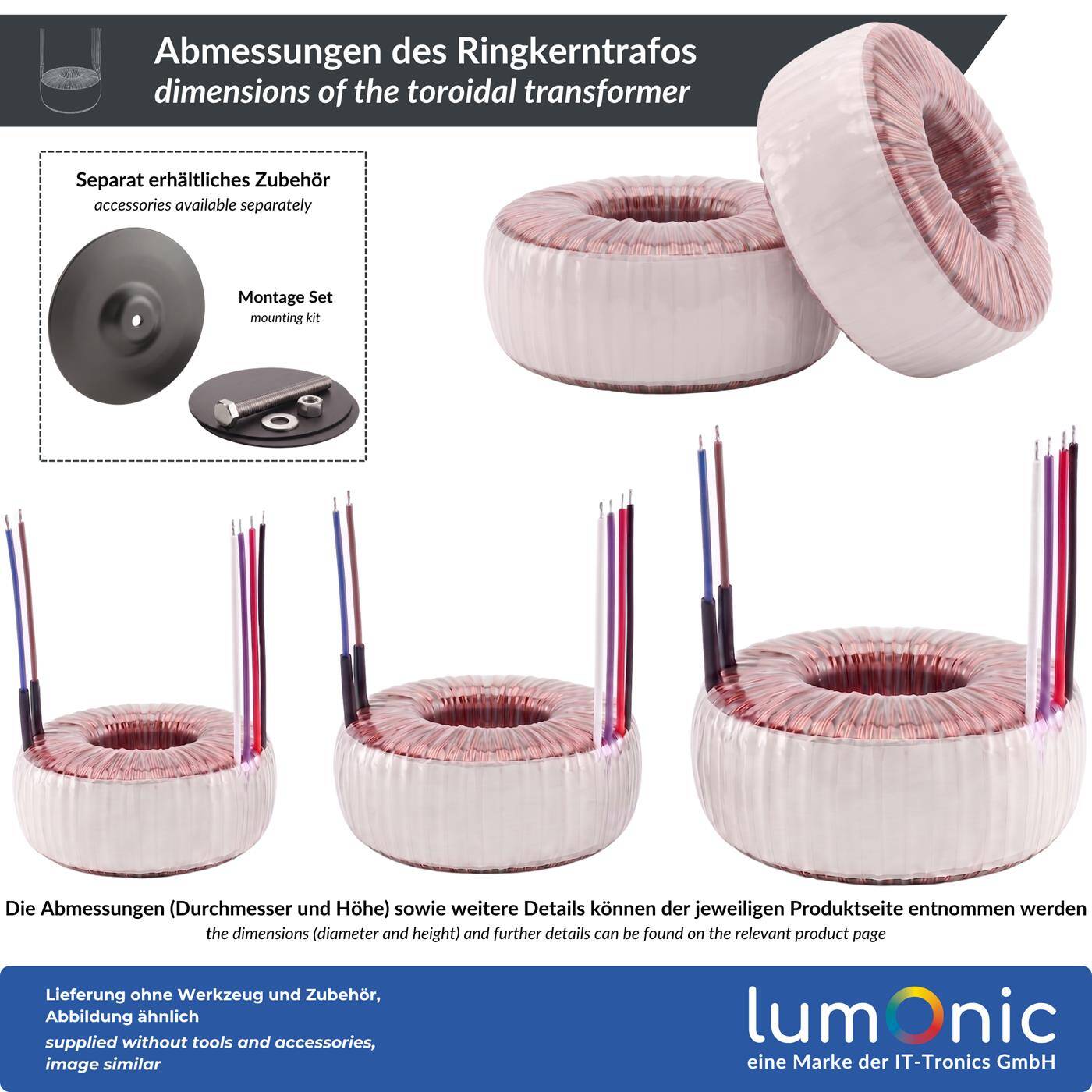

| Diameter: | 195mm |
| Height: | 65mm |
| Weight: | 8,5kg |
| Open circuit voltage: | 2x31,40V |
| No-load loss: | 7,5VA |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
| Efficiency: | 93% |
