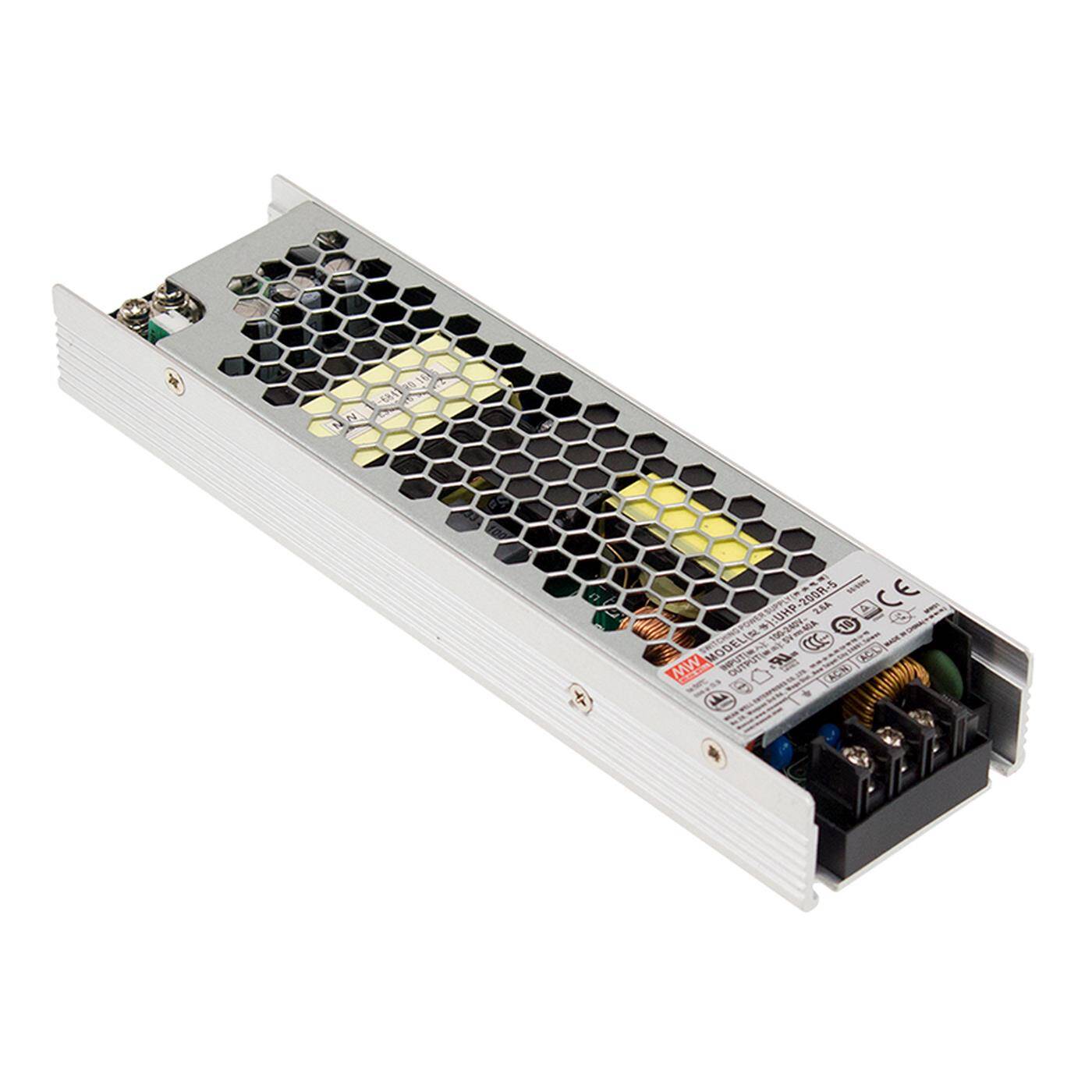

UHP-200-5 200W 5V 40A Industrial power supply
Available, delivery time 1-3 days
Article-No.:
IT-009550
Model:
UHP-200-5
Shipping weight:
0.47 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€54.80*
|
| 6 - 10 |
€53.70*
|
| From 11 |
€52.61*
|
Product description
| ✔ closed design (U-bracket) |
| ✔ Universal input |
| ✔ built-in PFC circuit |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against overload, overvoltage and overtemperature |
| ✔ EMC standards: EN 55032 Class B, EN 55014 |
| ✔ Safety standards: UL 62368-1, EN 62368-1, EN 60335-1 |
| ✔ 3-year manufacturer's warranty |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 5V |
| Output current: | 40A |
| Power: | 200W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 4,5…5,5VDC |
| Efficiency: | 91% |

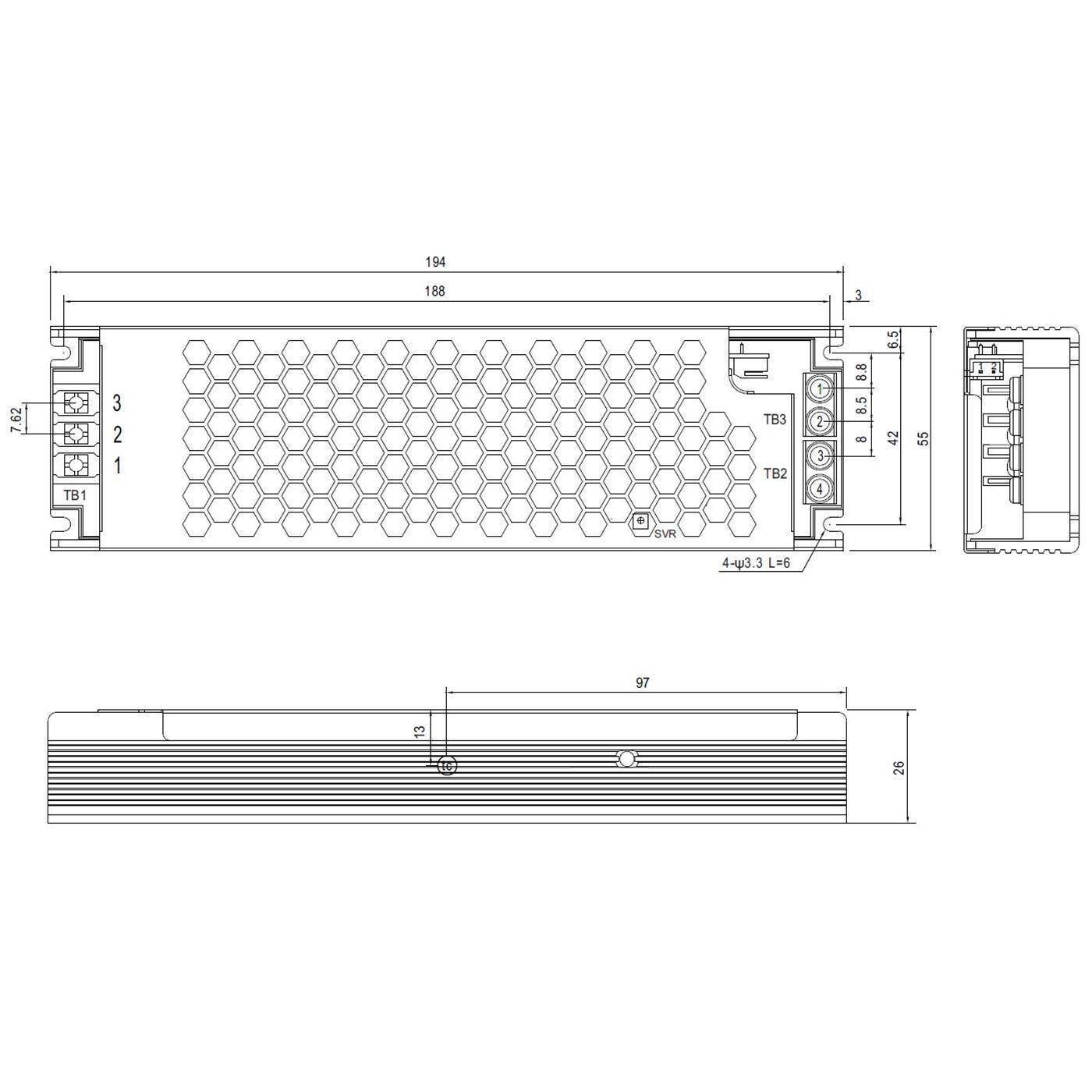

| Length: | 194mm |
| Width: | 55mm |
| Height: | 26mm |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
