Toroidal transformer 500VA 2x115V 2x15V 30V Lumonic RSO-825058

Available, delivery time: 1-3 days

Article-No.: IT-001461

Model: RSO-825058

Shipping weight: 4.5 kg

Shipping Zone: 80

ROHS: Ja

Datasheet:

€100.00

(€0.00* / )

Content: 1 Stück

Stk

detail.currentStock

Product description

✔ Mark of conformity: EN61558-2 / VDE 0570 with ENEC and UL

✔ Galvanically separated primary and secondary winding (isolating transformer!)

✔ Very low stray magnetic field

✔ Very low no-load losses

✔ Very high efficiency

✔ Maximum ambient temperature ta = 60°C, Temperature class B (130°C)

✔ Temperature switch 130°C integrated in primary winding - Automatically resetting, i.e. the transformer is not destroyed in the event of a short circuit!

✔ Toroidal transformer encapsulated on mounting plate with central through-hole - No further fastening material necessary

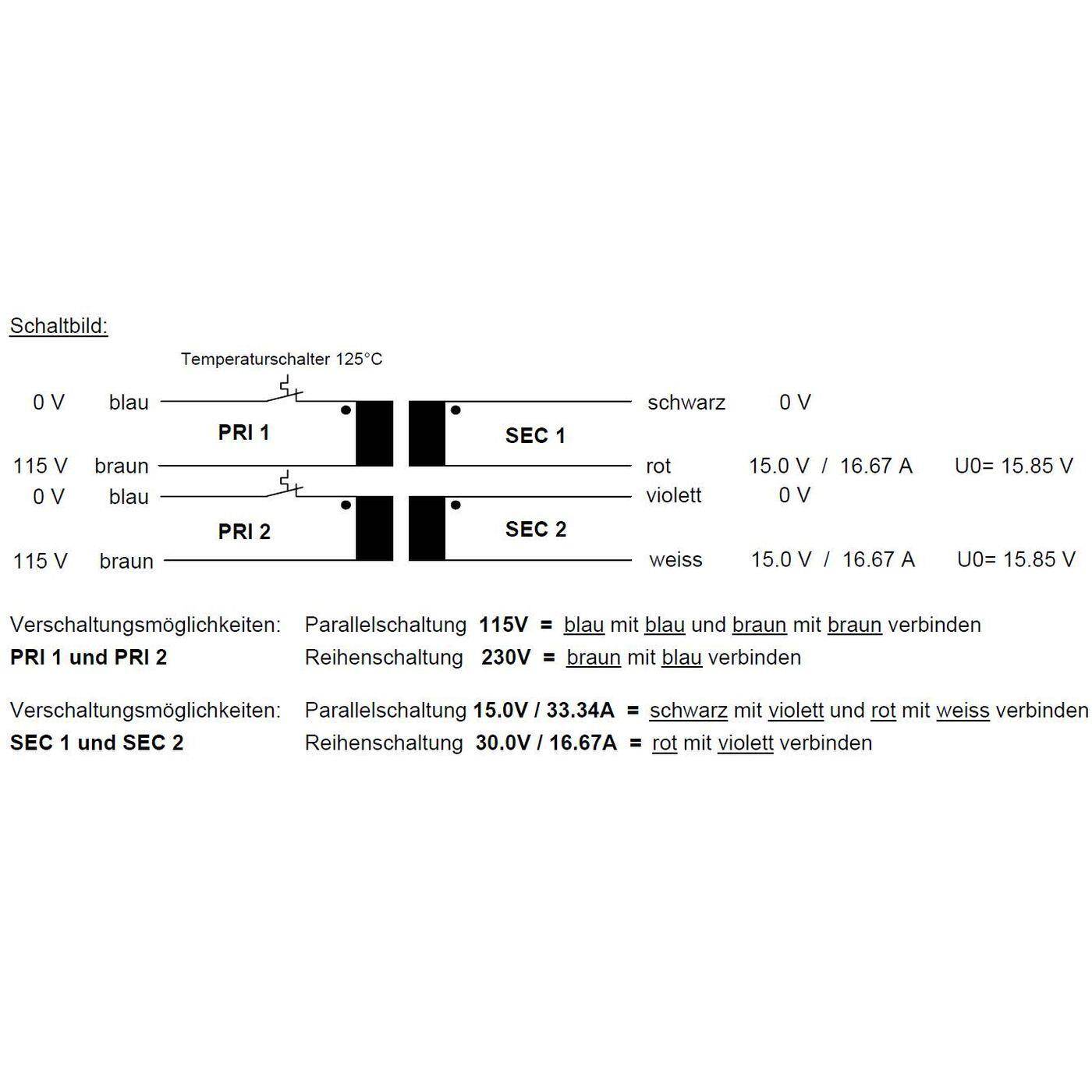

Technical specifications

Power:	500VA
Output voltage:	2x15V 30V
Output current:	2x16,67A
Input voltage:	2x115V
Frequency:	50/60Hz
Diameter:	156mm
Height:	70mm
Weight:	4,5kg
Open circuit voltage:	2x15,60V
No-load loss:	2,86VA
Max. Temperature:	60°C
Connection Entrance:	Strands, 200mm
Connection Entrance:	Strands, 200mm
Dielectric strength PRI-SEK:	4400V / 4,4kV
Temperature class:	B (130°C)
Thermoswitches:	130°C (automatically resetting)
Transformer grouted:	Yes
Efficiency:	94%
