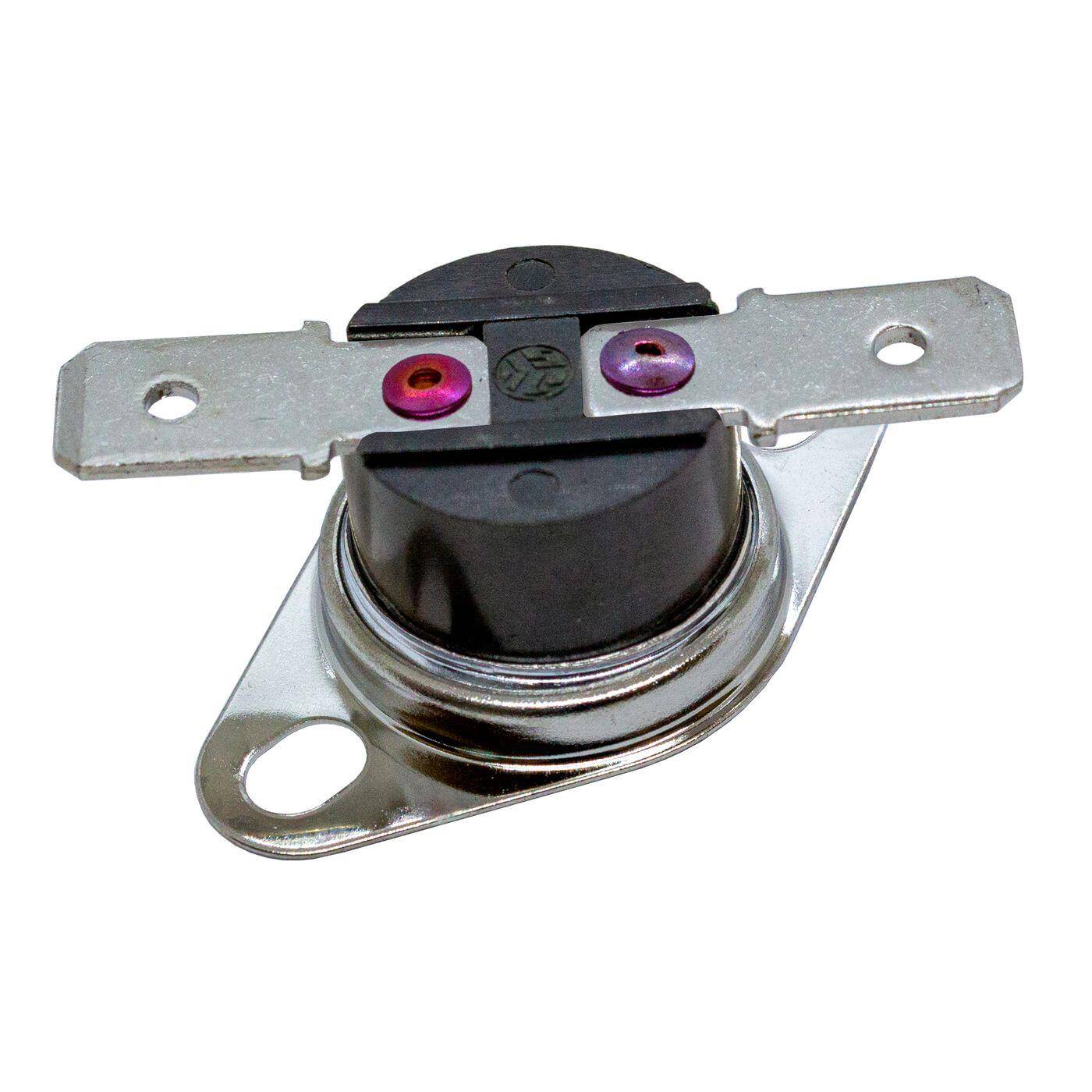

Thermal switch 45°C NO contact 250V 10A Temperature switch thermostat KSD301 Bimetal Thermal protection
Available, delivery time 1-3 days
Article-No.:
IT-008307
Shipping weight:
0.007 kg
Shipping Zone:
30
ROHS:
Ja
Product description
| Type | Temperature switch KSD301 |
| Switching contact | NO contact |
| Switching temperature | 45°C |
| Switching temperature Tolerance | ± 5°C |
| Reset temperature | 30°C |
| Reset temperature Tolerance | ± 8°C |
| Maximum load capacity AC | 250V 10A |
| Contact resistance | 50mOhm |
| Material Casing | Metal & Ceramic |
| Dimensions Casing | d15x12mm |
| Connection | Flat plug 6,3x0,8mm |
Technical specifications
| Type: | Temperature switch KSD301 |
|---|---|
| Switching contact: | NO contact |
| Switching temperature: | 45°C |
| Switching temperature Tolerance: | ± 5°C |
| Reset temperature: | 30°C |
| Reset temperature Tolerance: | ± 8°C |
| Maximum load capacity AC: | 250V 10A |
| Contact resistance: | 50mOhm |
| Material Casing: | Metal & Plastic |
| Dimensions Casing: | d15x12mm |
| Connection: | Flat plug 6,3x0,8mm |
