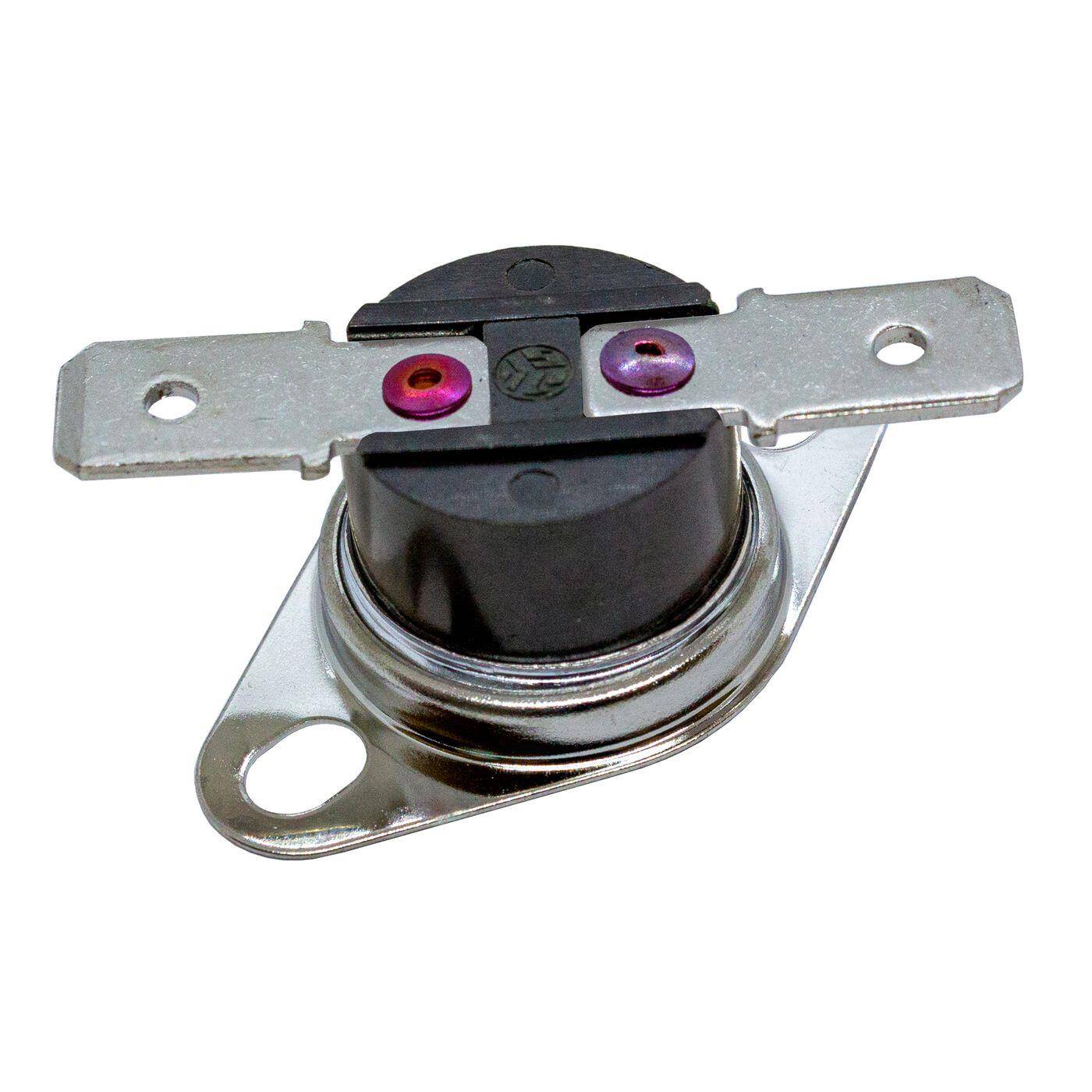

Thermal switch 45°C NC contact 250V 10A Temperature switch thermostat KSD301 Bimetal Thermal protection
Available, delivery time 1-3 days
Article-No.:
IT-008306
Shipping weight:
0.007 kg
Shipping Zone:
30
ROHS:
Ja
Quantity | Unit price |
---|---|
1 - 10 |
€2.38*
|
11 - 20 |
€2.33*
|
21 - 50 |
€2.28*
|
51 - 100 |
€2.26*
|
101 - 200 |
€2.24*
|
From 201 |
€2.21*
|
Product description
Type | Temperature switch KSD301 |
Switching contact | NC contact |
Switching temperature | 45°C |
Switching temperature Tolerance | ± 5°C |
Reset temperature | 30°C |
Reset temperature Tolerance | ± 8°C |
Maximum load capacity AC | 250V 10A |
Contact resistance | 50mOhm |
Material Casing | Metal & Ceramic |
Dimensions Casing | d15x12mm |
Connection | Flat plug 6,3x0,8mm |
Technical specifications
Type: | Temperature switch KSD301 |
---|---|
Switching contact: | NC contact |
Switching temperature: | 45°C |
Switching temperature Tolerance: | ± 5°C |
Reset temperature: | 30°C |
Reset temperature Tolerance: | ± 8°C |
Maximum load capacity AC: | 250V 10A |
Contact resistance: | 50mOhm |
Material Casing: | Metal & Plastic |
Dimensions Casing: | d15x12mm |
Connection: | Flat plug 6,3x0,8mm |
