Stainless steel Pressure switch domed Ø22mm Ring LED Cold White IP65 2,8x0,5mm Pins 250V 3A Vandal-proof
Available, delivery time: 1-3 days
Article-No.:
IT-008384000058
Shipping weight:
0.025 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 10 |
€4.80
|
| 11 - 20 |
€4.75
|
| 21 - 50 |
€4.70
|
| 51 - 100 |
€4.66
|
| 101 - 200 |
€4.66
|
| From 201 |
€4.66
|
Content:
1 Stück
Product description
| ✔ Hohe Flexibilität |
| ✔ Erfüllt: RoHS, Sony-SS-00259 |
| ✔ Min. Schrumpftemperatur: +70°C |
| ✔ Min. Temperatur zur vollständigen Schrumpfung: +100°C |
Technical specifications
| Switch Type: | Stainless steel Pressure switch |
|---|---|

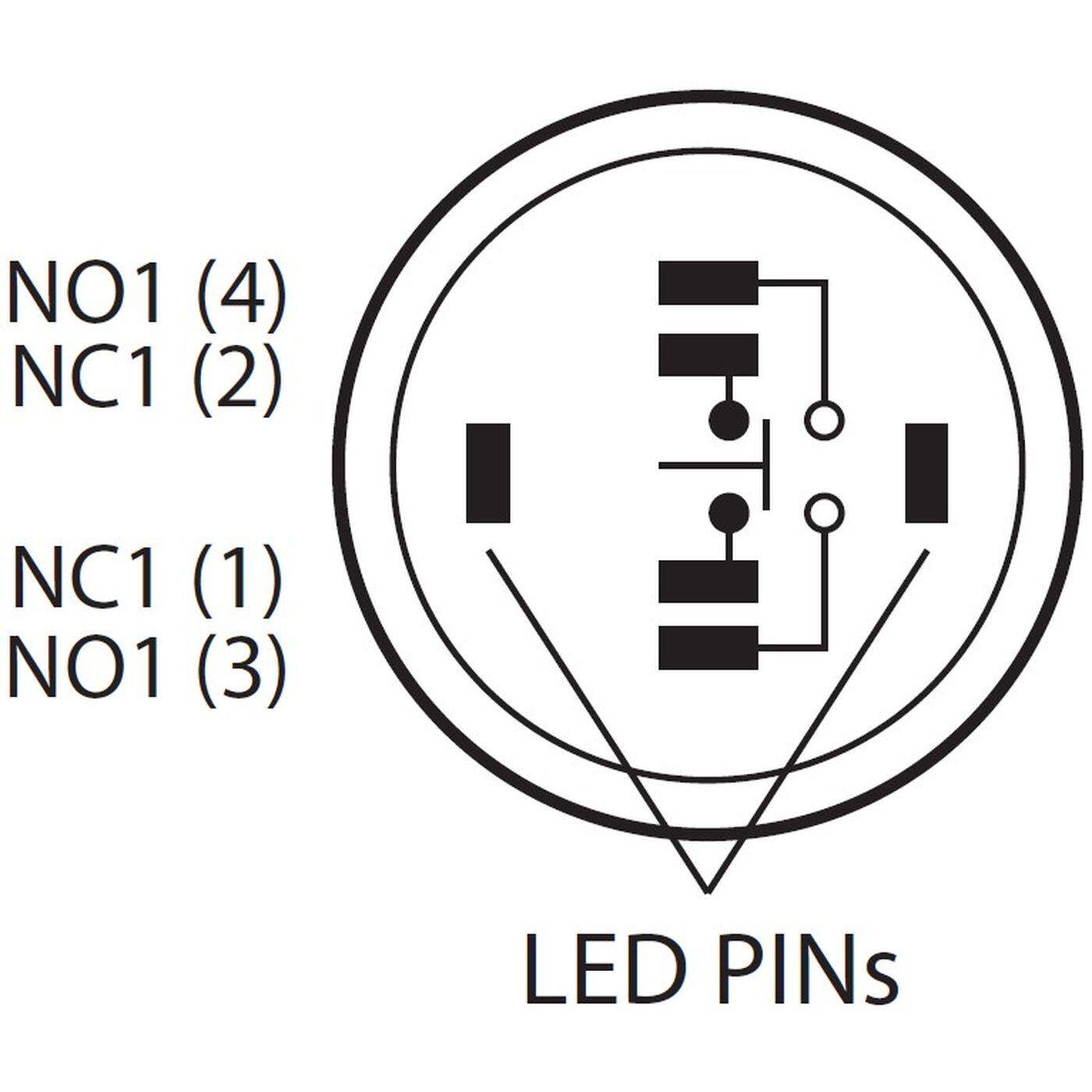

| Version: | Changeover contact |
| Voltage: | 250V |
| Current: | 3A |
| Head shape: | domed |
| Colour: | Silver |
| Number of poles: | 1 |
| External dimensions: | Ø25x33mm |
| Installation dimension: | Ø22mm |
| Thread length: | 18mm |
| Material: | Stainless steel |
| LED Colour: | Cold White |
| LED Shape: | Ring |
| LED Voltage: | 9...24V AC/DC |

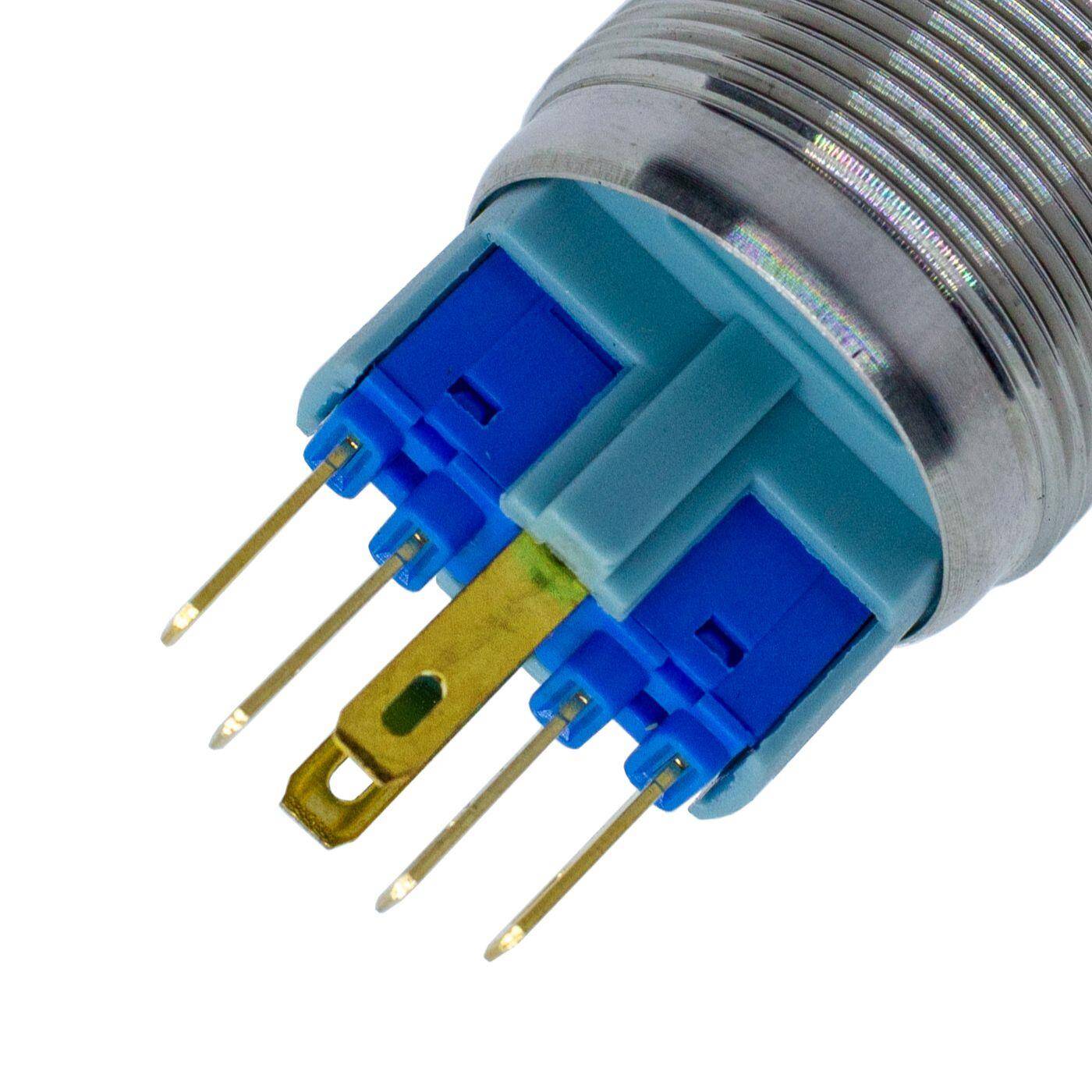

| Connection: | 2,8x0,5mm Pins |
| Installation depth: | 40mm |
| Protection class: | IP65 |
| Operating temperature: | -25...+70°C |
| Special feature: | Vandal-proof |
