SLD-50-12 50W 12V 4,2A LED power supply Transformer Driver for furniture extremely flat
Available, delivery time 1-3 days
Article-No.:
IT-007603
Model:
SLD-50-12
Shipping weight:
0.19 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€22.00*
|
| 6 - 10 |
€21.78*
|
| 11 - 20 |
€21.56*
|
| 21 - 50 |
€21.34*
|
| 51 - 100 |
€21.34*
|
| From 101 |
€21.34*
|
Product description
| ✔ Universal input 110...305V AC |
| ✔ Plastic housing IP30 |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ for LED and lighting applications |
| ✔ Safety standards: EN61347-1, EN61347-2-13 and others |
| ✔ EMC standards: EN61000-3-2 Class C, EN55015 and others |
| ✔ 3-year manufacturer's warranty |
| ✔ CV+CC (Mixed Mode) |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 4,2A |
| Power: | 50W |
| Input voltage (min...max): | 105...305VAC |
| Efficiency: | 88% |

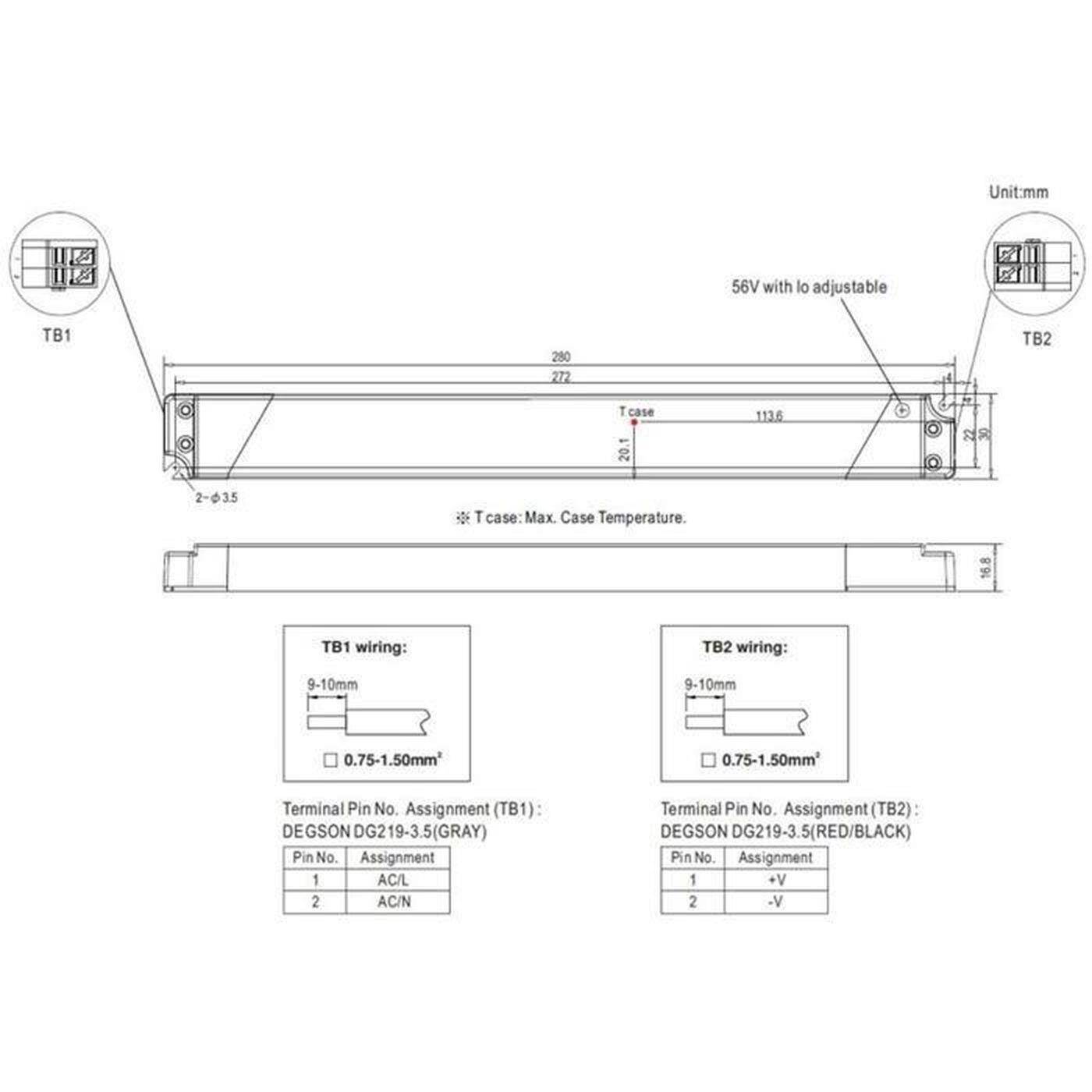

| Length: | 280mm |
| Width: | 30mm |
| Height: | 16,8mm |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
