SDR-240-24 240W 24V 10A Din Rail power supply
Available, delivery time 1-3 days
Article-No.:
IT-007399
Model:
SDR-240-24
Shipping weight:
1.1 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€95.00*
|
| 3 - 5 |
€94.05*
|
| 6 - 10 |
€93.10*
|
| 11 - 20 |
€92.15*
|
| 21 - 50 |
€91.20*
|
| From 51 |
€90.25*
|
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ Overload protection by current limiting, switch-off after 3s |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ LED display for DC OK |
| ✔ DC-OK relay output |
| ✔ Peak load function |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 10A |
| Power: | 240W |
| Input voltage (min...max): | 88...264VAC |
| Output voltage (min...max): | 24...28VDC |
| Efficiency: | 94% |

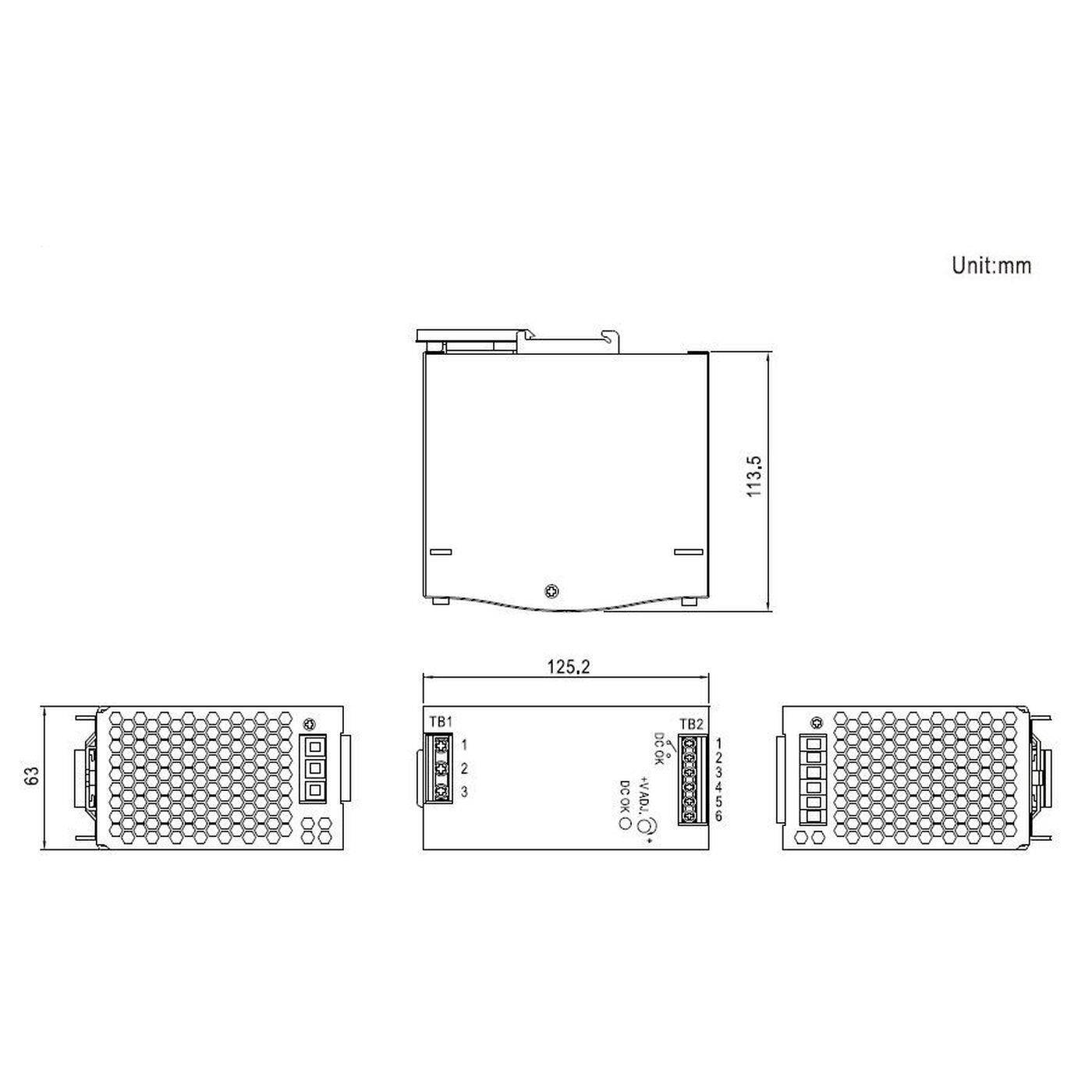

| Length: | 125,5mm |
| Width: | 63mm |
| Height: | 113,5mm |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
