Proximity switch Inductive 12mm M12 NPN NO contact 6...36V DC IP67 Sensor Brass nickel-plated -30...+65°C
Available, delivery time 1-3 days
Article-No.:
IT-008234
Shipping weight:
0.05 kg
Shipping Zone:
30
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 10 |
€4.75*
|
| 11 - 20 |
€4.66*
|
| 21 - 50 |
€4.56*
|
| From 51 |
€4.51*
|
Product description
| Diameter | 12mm M12 |
| Sensor technology | Inductive |
| Polarity | NPN |
| Switching contact | NO contact |
| Voltage | 6...36V DC |
| Total length | 62mm |

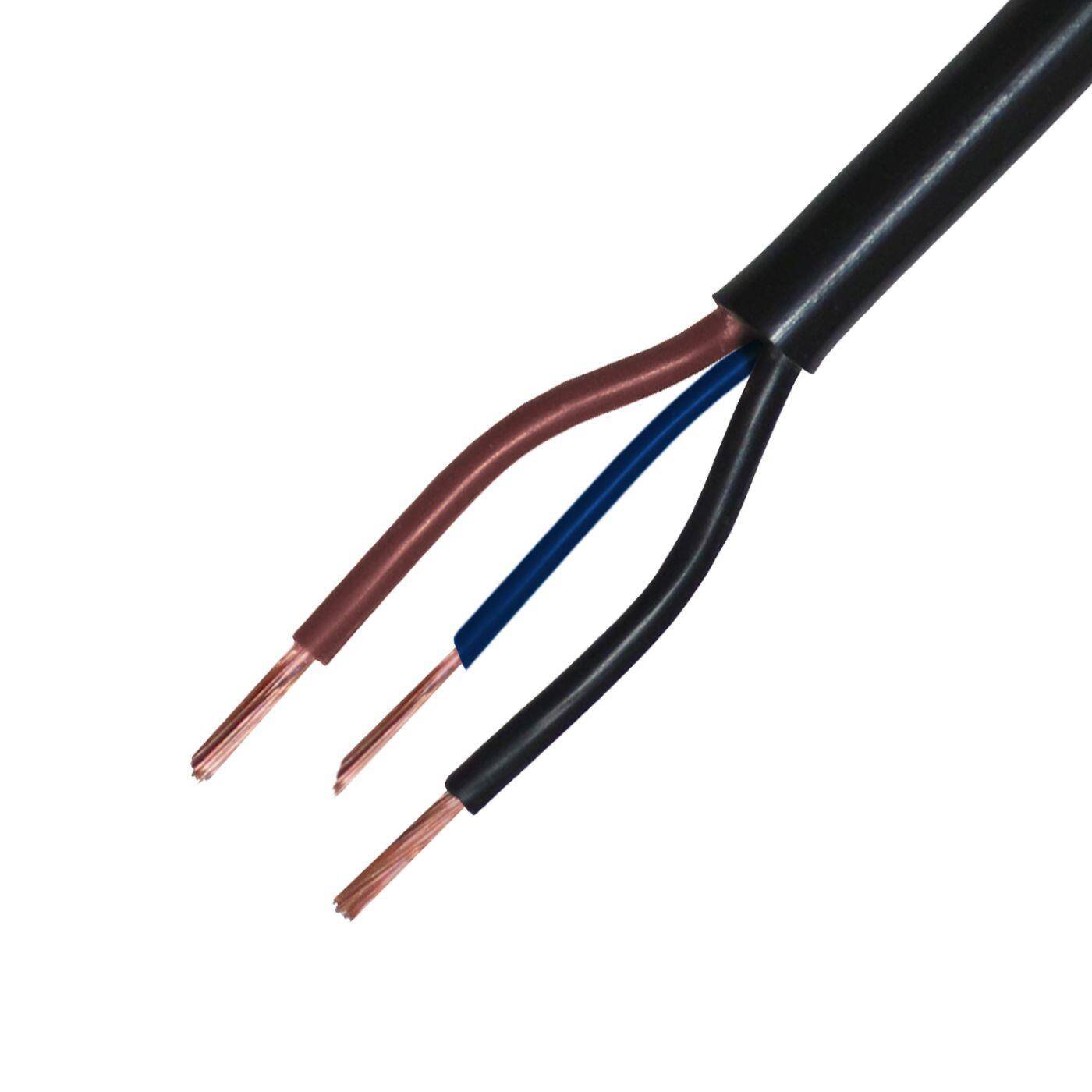

| Connection | Cable 120cm (3 wire) |
| Detection range | < 4mm |
| Switching current | 300mA |
| Insulation resistance | 50 MOhm |
| Protection class | IP67 |
| Casing Material | Brass nickel-plated |
| Temperature range | -30...+65°C |
Technical specifications
| Diameter: | 12mm M12 |
|---|---|
| Sensor technology: | Inductive |
| Polarity: | NPN |
| Switching contact: | NO contact |
| Voltage: | 6...36V DC |
| Total length: | 62mm |
| Connection: | Cable 120cm (3 wire) |
| Detection range: | < 4mm |
| Switching current: | 300mA |
| Insulation resistance: | 50 MOhm |
| Protection class: | IP67 |
| Casing Material: | Brass nickel-plated |
| Temperature range: | -30...+65°C |
