Lumonic Toroidal Transformer, 50 VA, 2x 18 V + 36 V, 230 V - Toroidal transformer, 230 V primary, 2x 18 V + 36 V simultaneously, for amplifier construction, power supplies, lighting

Skip image gallery
Lumonic Toroidal Transformer, 50 VA, 2x 18 V + 36 V, 230 V - Toroidal transformer, 230 V primary, 2x 18 V + 36 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 50 VA, 2x 18 V + 36 V, 230 V - Toroidal transformer, 230 V primary, 2x 18 V + 36 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 50 VA, 2x 18 V + 36 V, 230 V - Toroidal transformer, 230 V primary, 2x 18 V + 36 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 50 VA, 2x 18 V + 36 V, 230 V - Toroidal transformer, 230 V primary, 2x 18 V + 36 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 50 VA, 2x 18 V + 36 V, 230 V - Toroidal transformer, 230 V primary, 2x 18 V + 36 V simultaneously, for amplifier construction, power supplies, lighting
Lumonic Toroidal Transformer, 50 VA, 2x 18 V + 36 V, 230 V - Toroidal transformer, 230 V primary, 2x 18 V + 36 V simultaneously, for amplifier construction, power supplies, lighting

Available, delivery time: 1-3 days

Article-No.: IT-011517
Shipping weight: 0.65 kg
Shipping Zone: 50
Quantity Unit price
1 - 5
€25.00
6 - 10
€24.50
11 - 20
€24.00
21 - 50
€23.75
51 - 100
€23.50
From 101
€23.25
Content: 1 Stück

Stk
detail.currentStock
Product description
✔ MULTIPLE VOLTAGES, ONE TRANSFORMER: The toroidal transformer provides various output voltages, thereby replacing several individual transformers. This saves space and keeps the wiring organized.

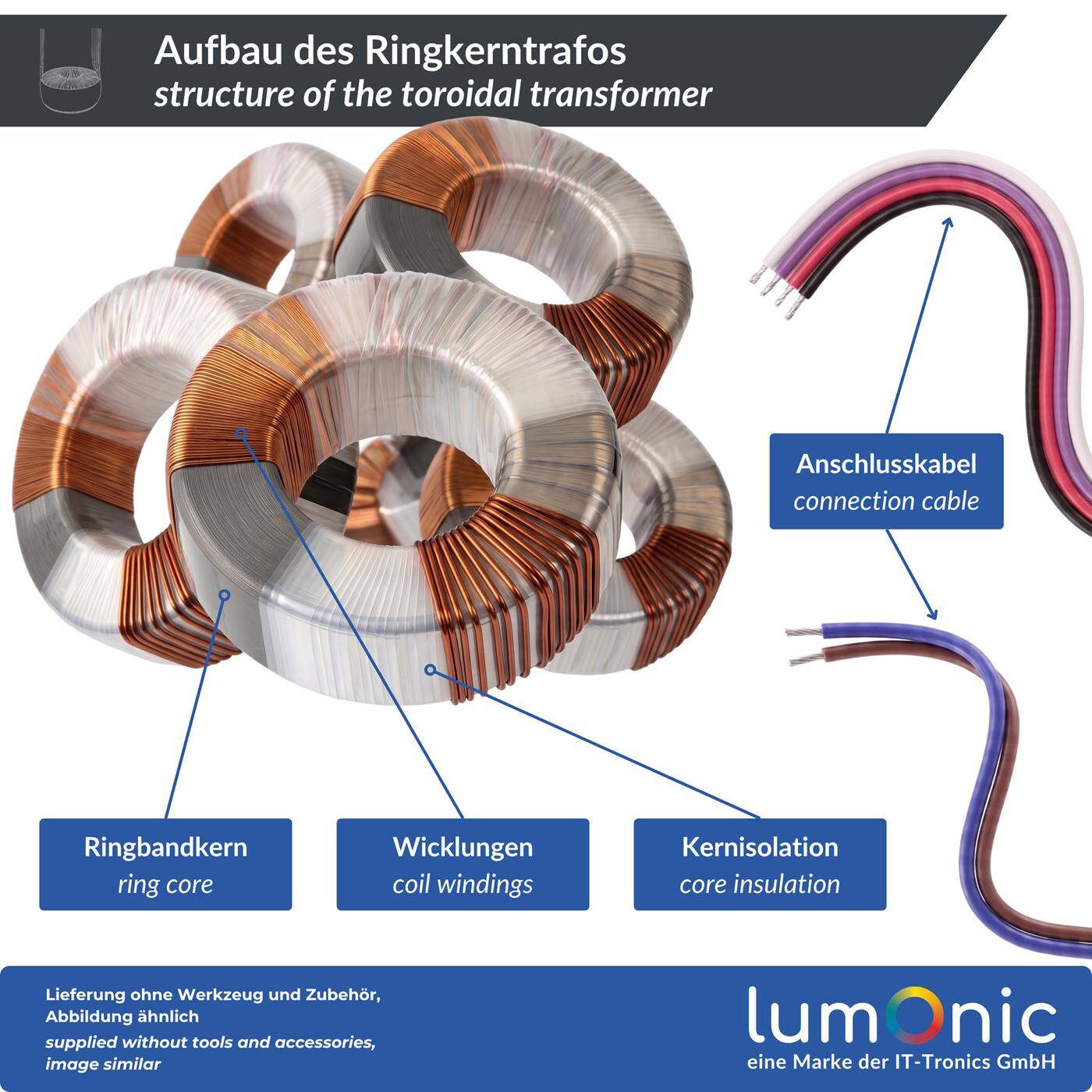

✔ COMPACT TOROIDAL DESIGN: The toroidal design is flat and space-saving, and, due to its construction, generates a low magnetic stray field. ALL voltage specifications refer to alternating current (AC).

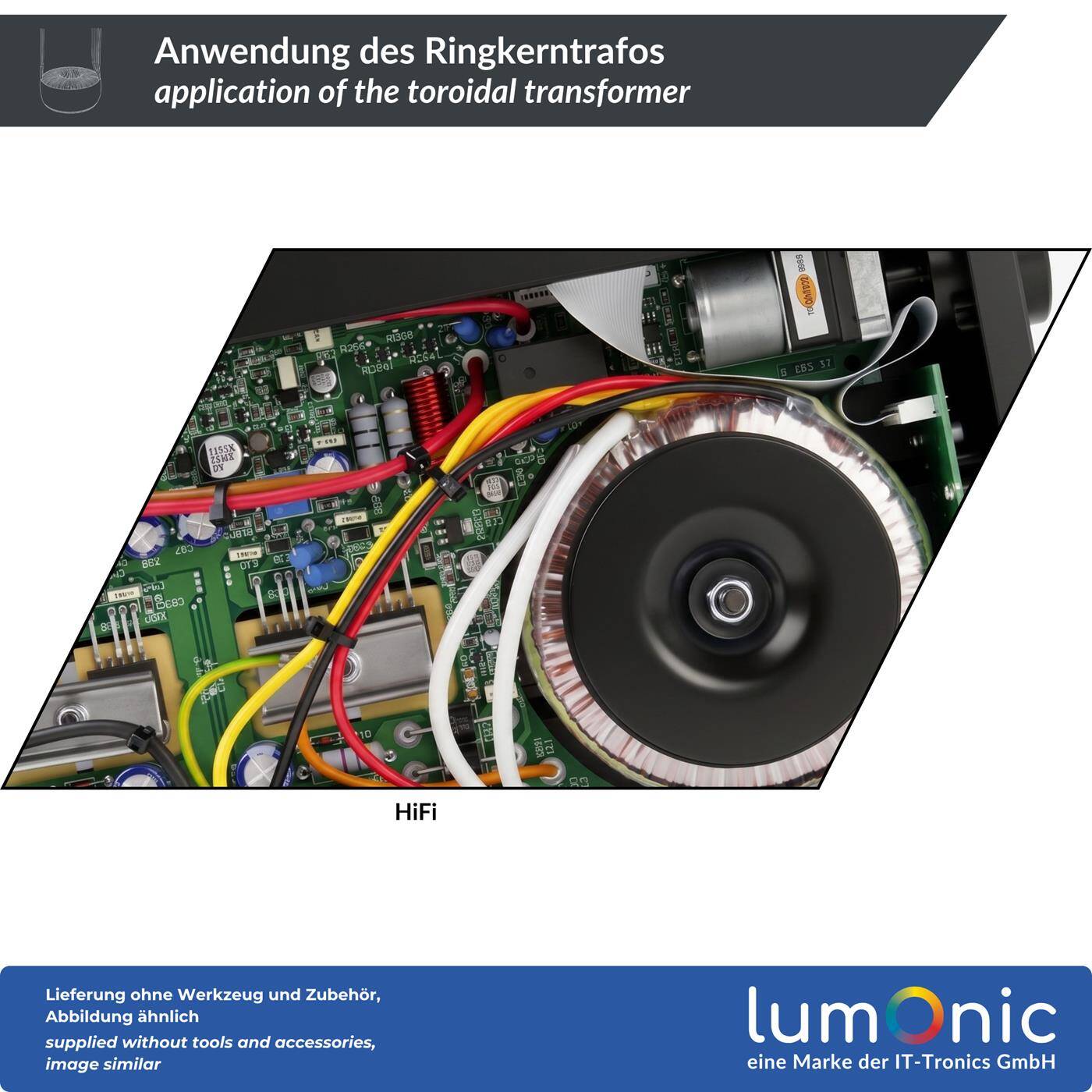

✔ THREE VOLTAGES AT ONCE: Two individual voltages and the double voltage are available simultaneously—not just as options. Suitable, for example, for amplifier construction and lighting.
✔ VOLTAGE RATING 4.4 KV: The primary and secondary windings are insulated from each other at 4.4 kV. The winding is rated for temperature class B (up to 130 °C). Open-circuit voltage: 2 × 20.7 V + 41.4 V.

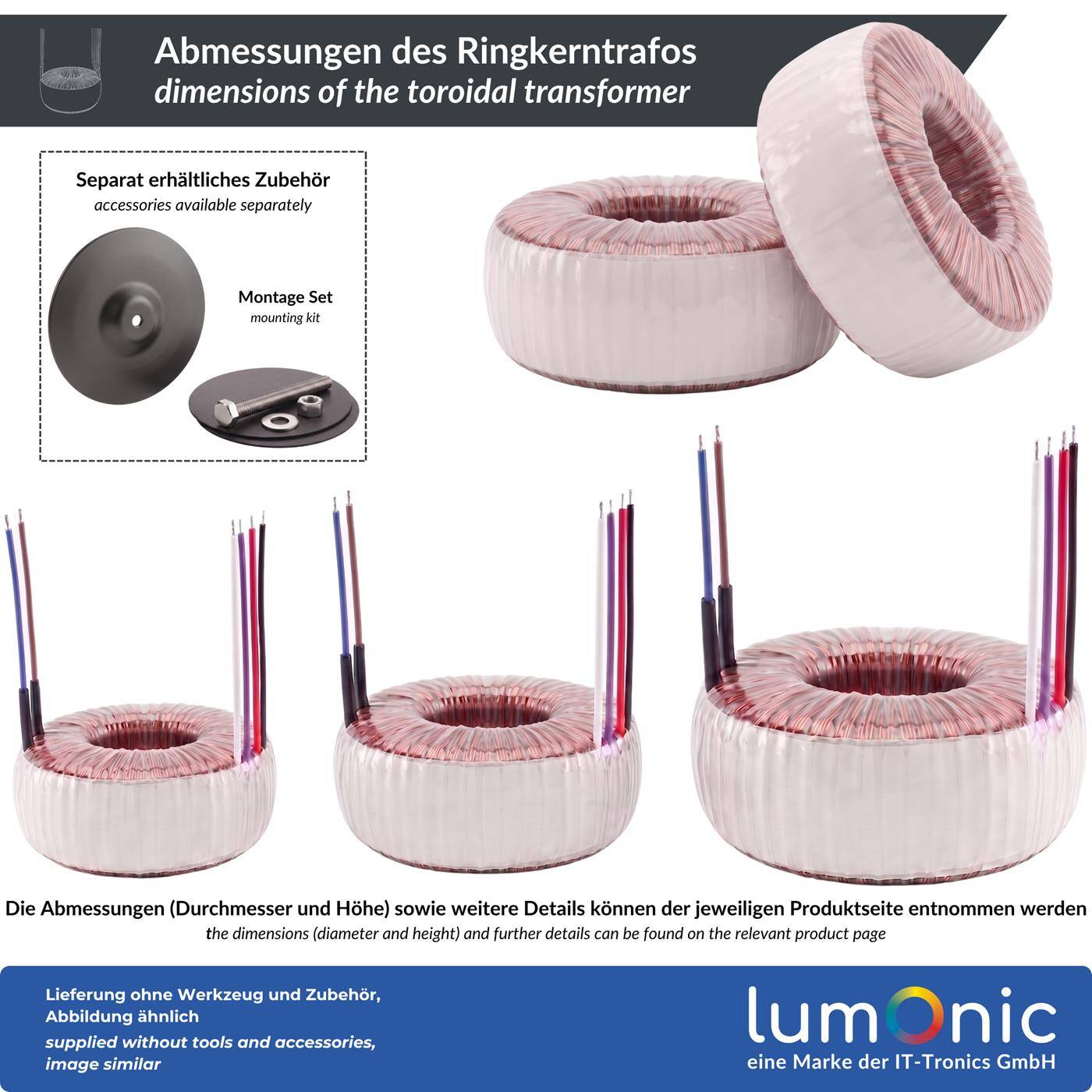

✔ EXACTLY THE MODEL YOU NEED: 50 VA, secondary output of 2x 18 V and 36 V available simultaneously, 0.694 A per tap. Dimensions: Ø 80 x 33 mm. Package contents: 1 transformer (mounting kit sold separately).
