5x Supercap 0,33F 5,5V C-Type, EDLC for direct use, high capacity, 5.5V monoblock - no balancing necessary, flicker protection, backup, Arduino, PLC, heating
Available, delivery time: 1-3 days
Article-No.:
IT-010609
Model:
LUGC0,33F5,5V-C
Shipping weight:
0.018 kg
Shipping Zone:
30
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€8.00*
|
| 6 - 10 |
€7.84*
|
| 11 - 20 |
€7.68*
|
| 21 - 50 |
€7.60*
|
| 51 - 100 |
€7.52*
|
| From 101 |
€7.44*
|
Product description

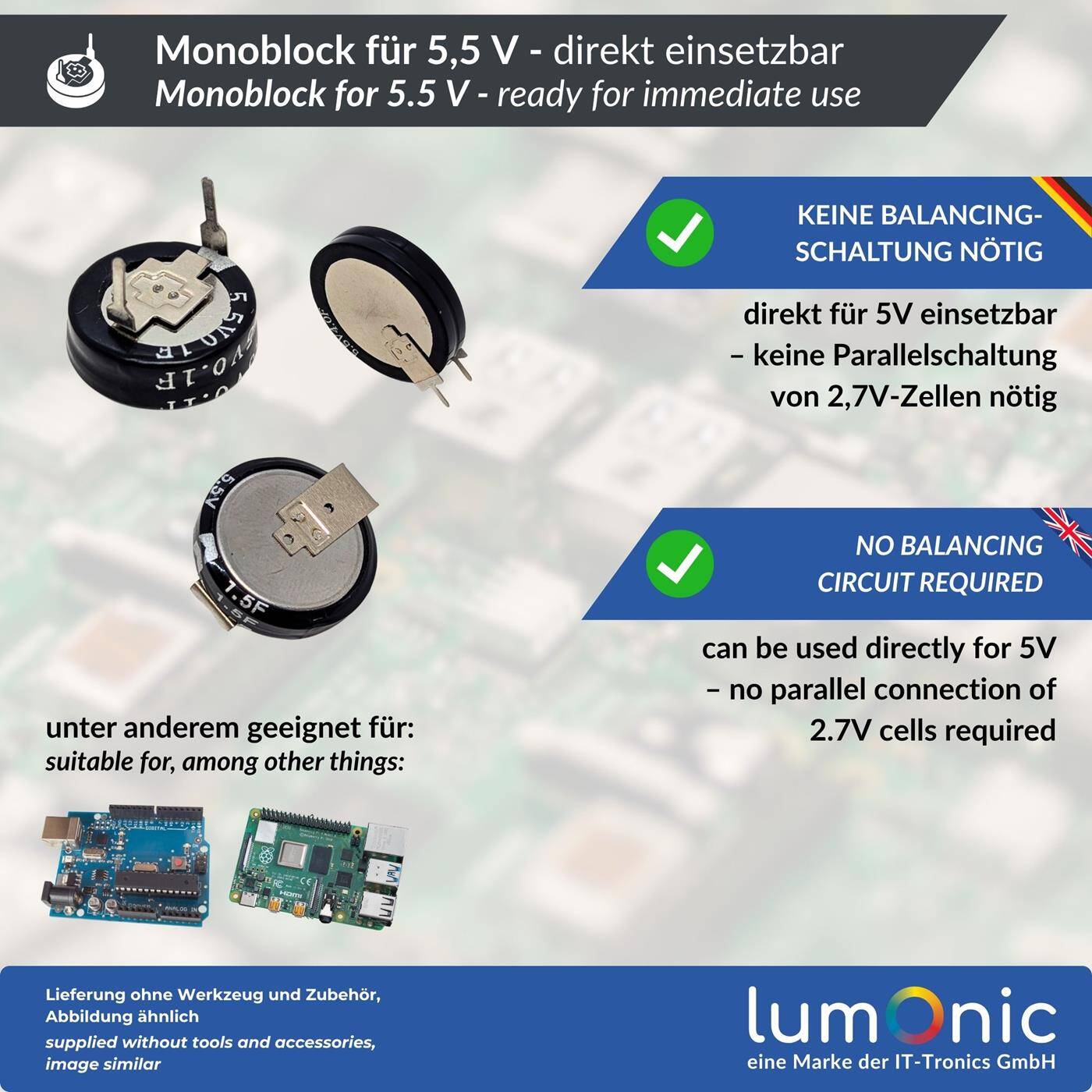

| ✔ READY TO GO IMMEDIATELY: 5.5V monoblock can be used directly at 5 V - no complex balancing circuit required as with 2.7V cells. |
| ✔ LONG LASTING: Over 500,000 charge/discharge cycles and passed 1000h durability test at +70°C according to IEC62391-1. |
| ✔ VERSATILE IN USE: Double-layer capacitors function as small energy storage devices and protect Arduino/Raspberry Pi from data loss in the event of brief power failures, prevent flickering in model railroad LEDs and save SRAM data in controllers. |

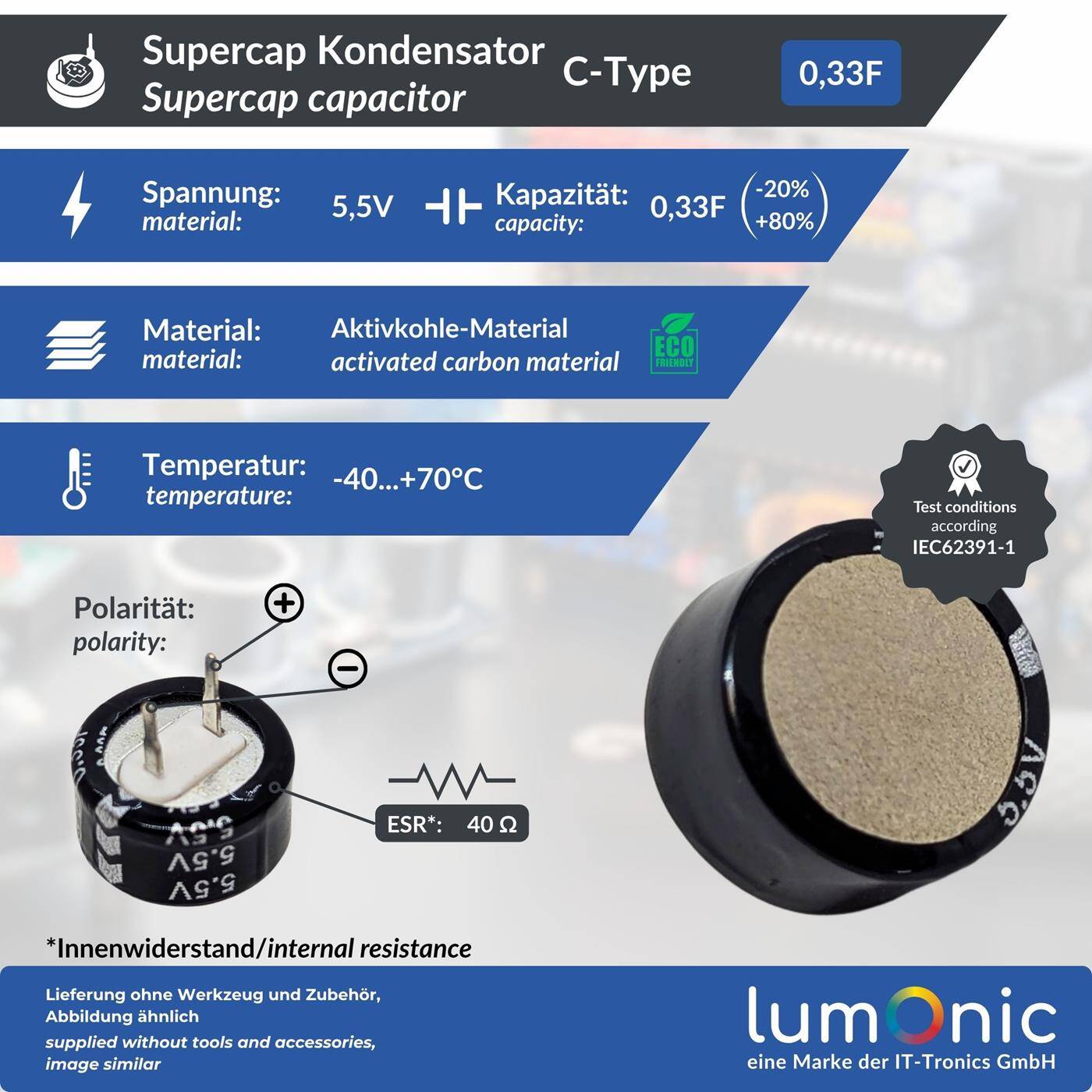

| ✔ STABLE UNDER LOAD: ESR (internal resistance) only 40O (see article images) - your circuit gets enough power even at peak loads and runs stably through short power failures. |

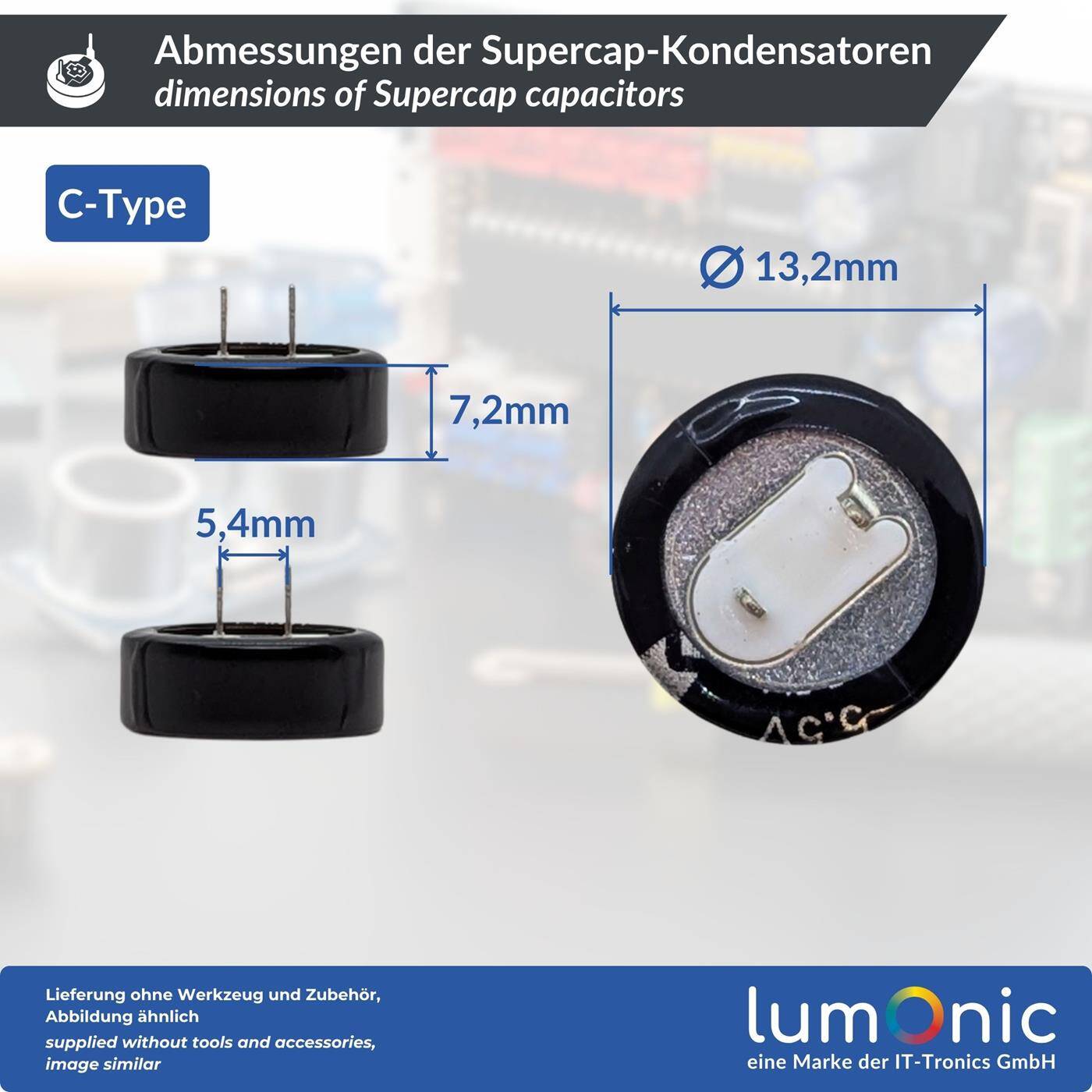

| ✔ PROFESSIONAL QUALITY: Works from -40°C to +70°C, environmentally friendly due to activated carbon, scope of delivery 5 x Ultracap 0.33F 5.5V C-Type. Also known as Goldcap. Dimensions: 13.2x7.2mm (diameter x height). |
Technical specifications
| Capacitor Type: | Goldcap double layer capacitor |
|---|---|
| Design Type: | Radial C-Type |
| Capacity: | 0,33F |
| Voltage DC: | 5,5V |
| Tolerance: | -20...+80% |
| Temperature: | 70°C |
| Connection: | 2-Pin |
| Connection dimension: | 6 |
| Pitch: | 5,4mm |
| Height: | 7,2mm |
| Diameter: | 13,2mm |
