5x Supercap 4,0F 5,5V H-Type, EDLC for direct use, high capacity, 5.5V monoblock - no balancing necessary, flicker protection, backup, Arduino, PLC, heating
Available, delivery time: 1-3 days
Article-No.:
IT-010620
Model:
LUGC4,00F5,5V-H
Shipping weight:
0.039 kg
Shipping Zone:
30
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€9.00*
|
| 6 - 10 |
€8.82*
|
| 11 - 20 |
€8.64*
|
| 21 - 50 |
€8.55*
|
| 51 - 100 |
€8.46*
|
| From 101 |
€8.37*
|
Product description

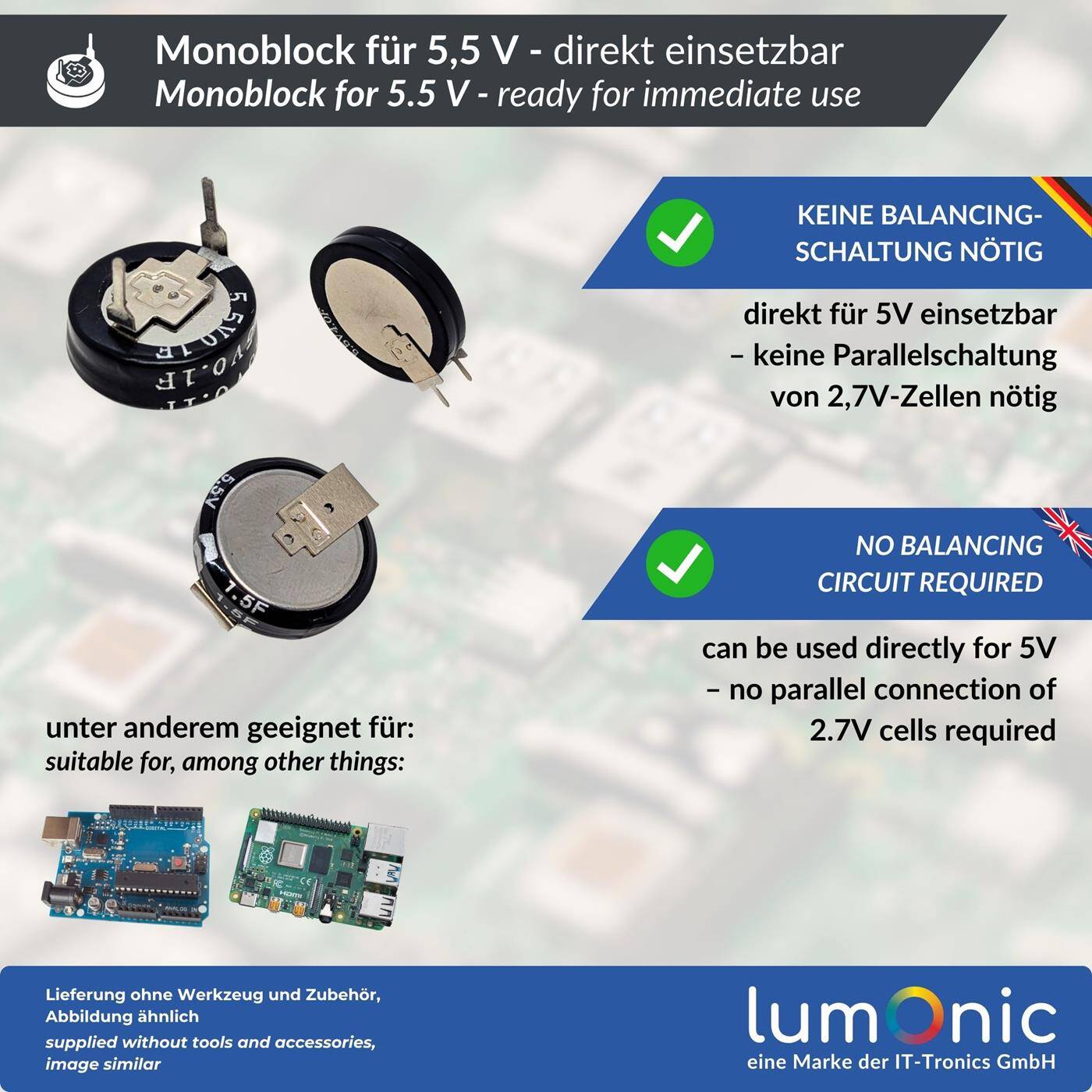

| ✔ READY TO GO IMMEDIATELY: 5.5V monoblock can be used directly at 5 V - no complex balancing circuit required as with 2.7V cells. |
| ✔ LONG LASTING: Over 500,000 charge/discharge cycles and passed 1000h durability test at +70°C according to IEC62391-1. |
| ✔ VERSATILE IN USE: Double-layer capacitors function as small energy storage devices and protect microcontrollers from data loss in the event of brief power failures, prevent flickering in model railroad LEDs and save SRAM data in control systems. |
| ✔ STABLE UNDER LOAD: ESR (internal resistance) only 15O (see article pictures) - your circuit gets enough power even during load peaks and runs stably through short power failures. |
| ✔ PROFESSIONAL QUALITY: Works from -40°C to +70°C, environmentally friendly due to activated carbon, scope of delivery 5 x Ultracap 4.0F 5.5V H-Type. Also known as Goldcap. Dimensions: 24.5x6mm (diameter x height). |

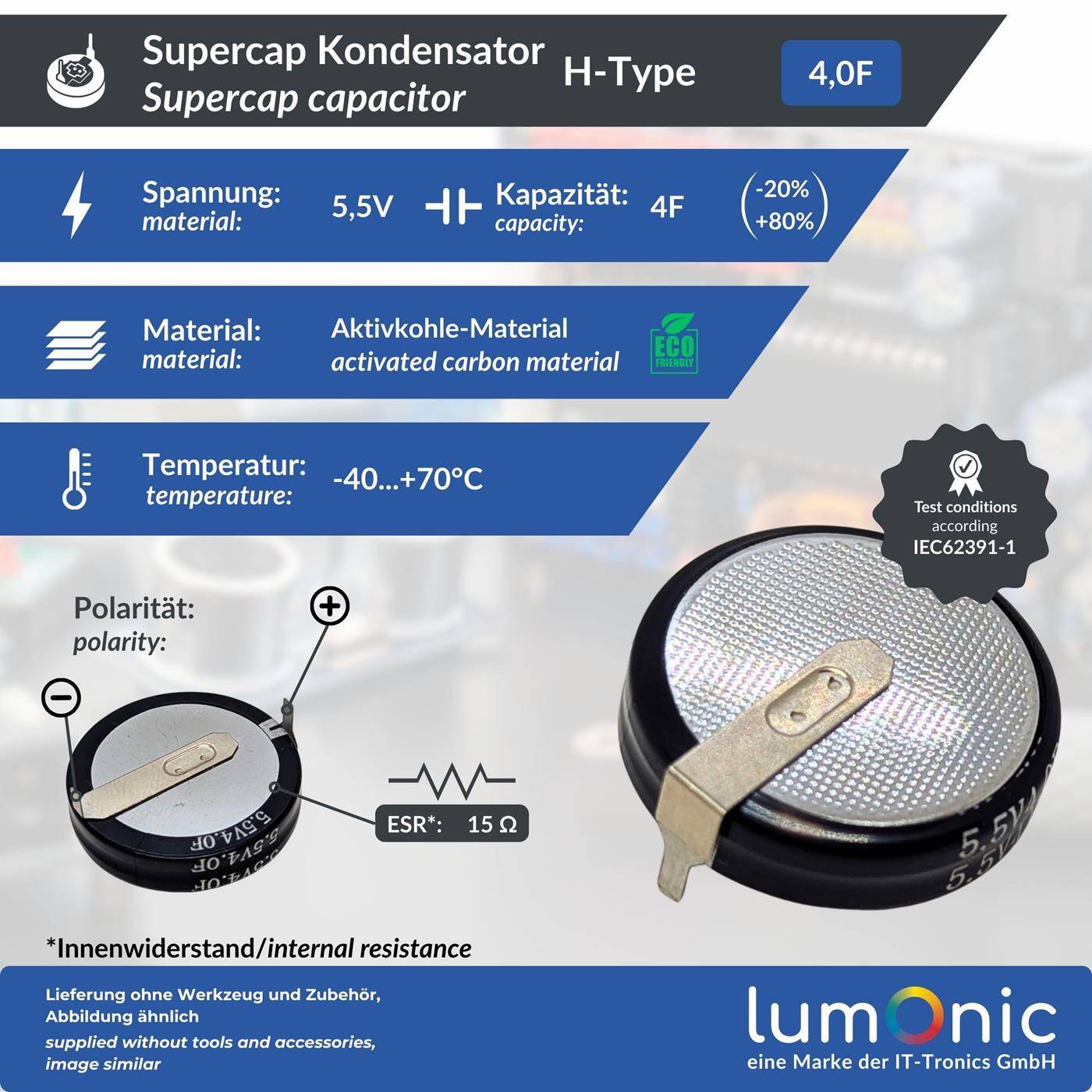

Technical specifications
| Capacitor Type: | Goldcap double layer capacitor |
|---|---|

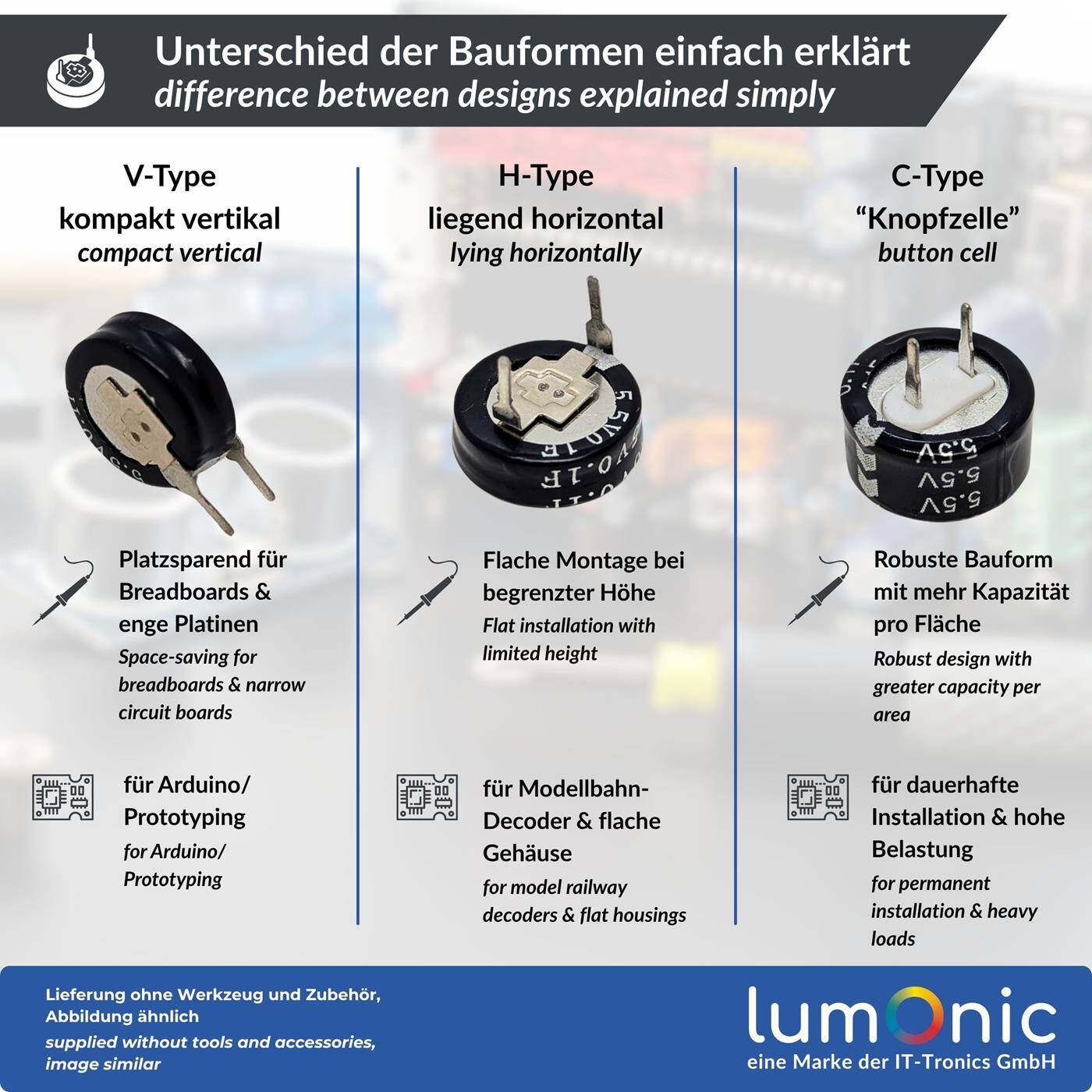

| Design Type: | Radial H-Type |
| Capacity: | 4F |
| Voltage DC: | 5,5V |
| Tolerance: | -20...+80% |
| Temperature: | 70°C |
| Connection: | 2-Pin |
| Connection dimension: | 3,8 |

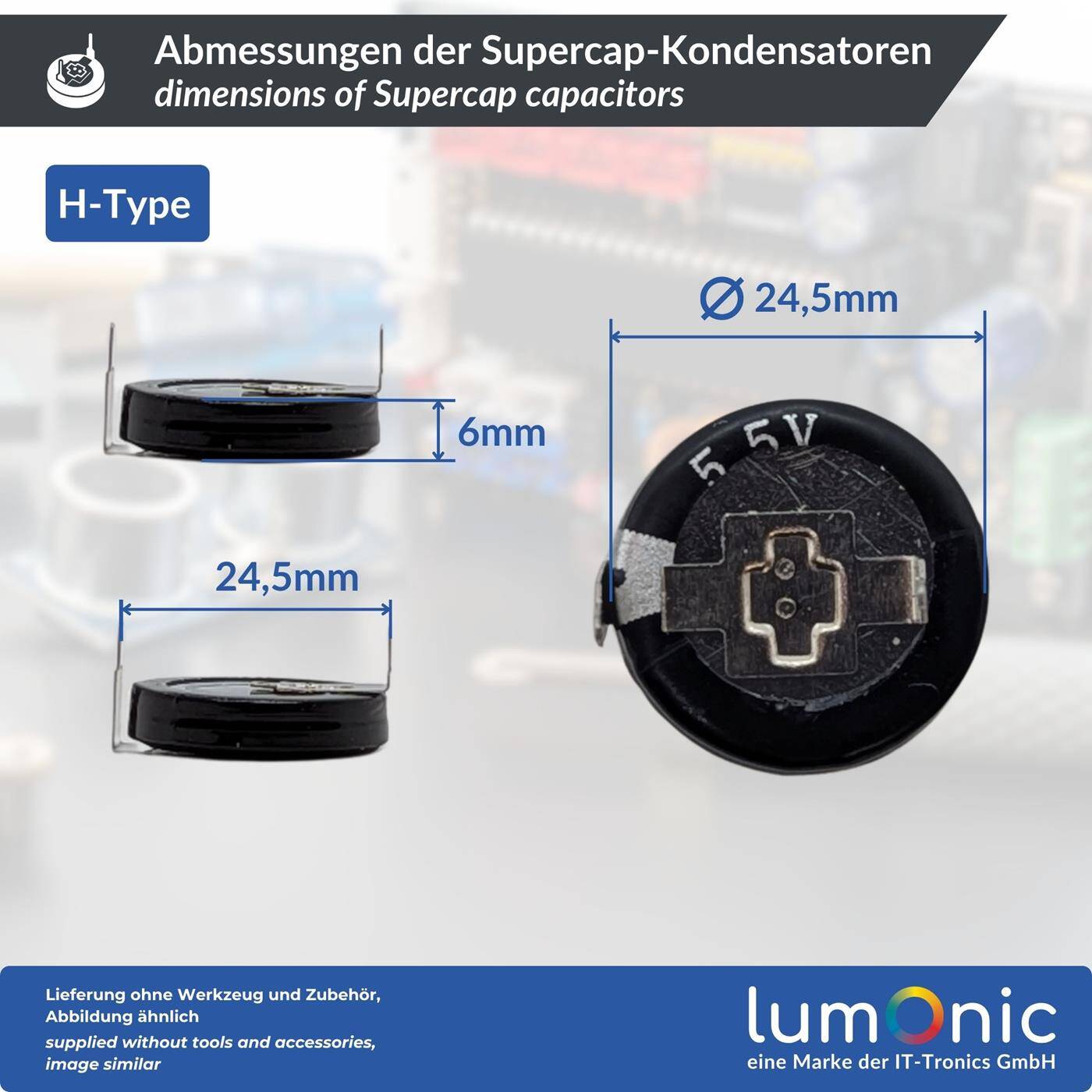

| Pitch: | 24,5mm |
| Height: | 6mm |
| Diameter: | 24,5mm |
