UHP-750-36 752,4W 36V 20,9A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-009567
Model:
UHP-750-36
Shipping weight:
1.4 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
Product description
| ✔ closed design (U-bracket) |
| ✔ Wide range input |
| ✔ slim and low profile (41mm) |
| ✔ contact cooled, fanless design |
| ✔ built-in PFC circuit |
| ✔ protected against short circuit, overload, overvoltage, overtemperature |
| ✔ Operating altitude up to 5000m |
| ✔ LED indicator for power on |
| ✔ EN 60335-1, EN61558-1 |
| ✔ 3 years warranty |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 36V |
| Output current: | 20,9A |
| Power: | 752,4W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 36…43,2VDC |
| Efficiency: | 95% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

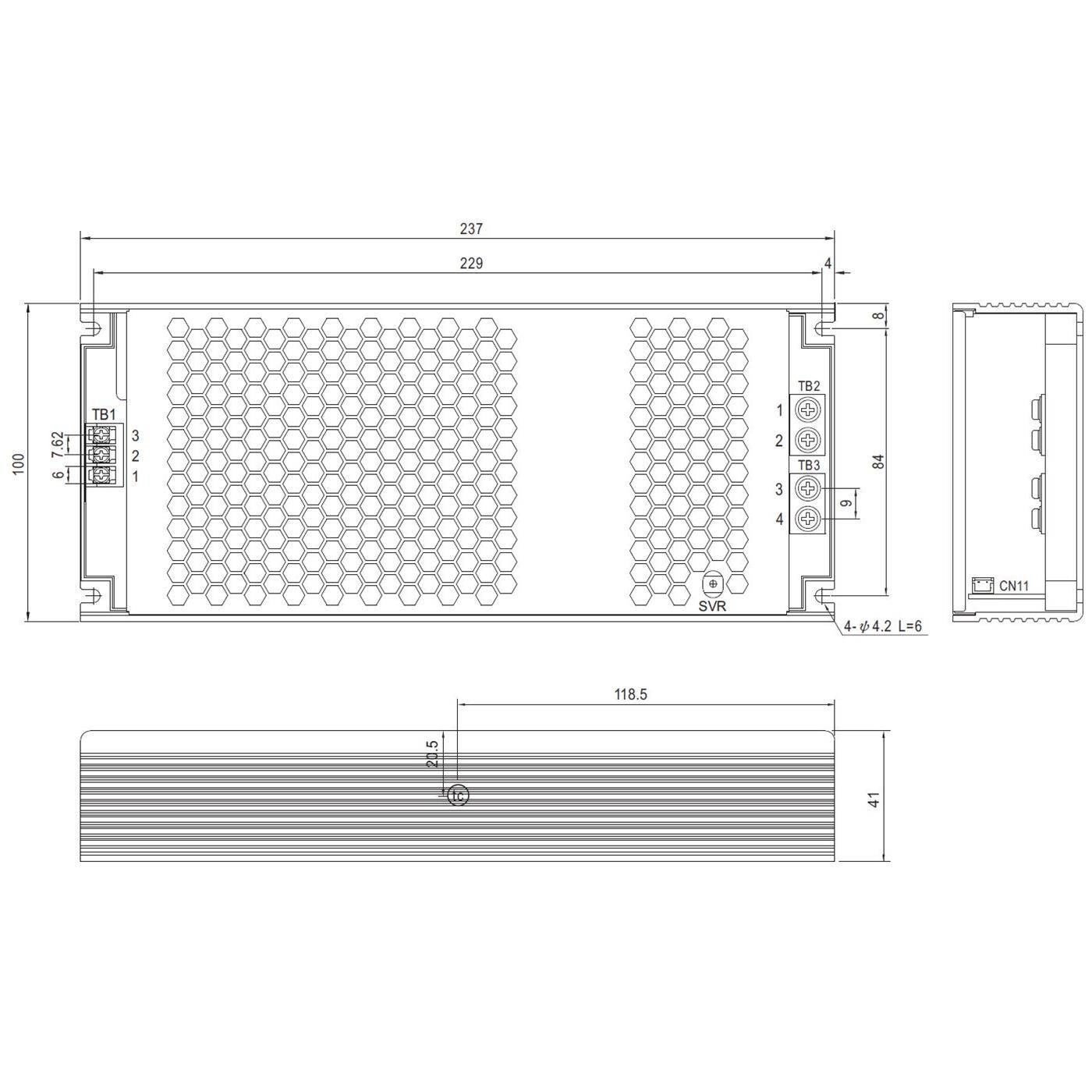

| Length: | 237mm |
| Width: | 100mm |
| Height: | 41mm |
