UHP-500-36 500,4W 36V 13,9A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-009563
Model:
UHP-500-36
Shipping weight:
0.9 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€98.00*
|
| 3 - 5 |
€97.02*
|
| 6 - 10 |
€96.04*
|
| 11 - 20 |
€95.06*
|
| 21 - 50 |
€94.08*
|
| From 51 |
€93.10*
|
Product description
| ✔ closed design (U-bracket) |
| ✔ Universal input |
| ✔ slim and flat profile (31mm) |
| ✔ Fanless design, 500W convection |
| ✔ built-in PFC circuit |
| ✔ 150% peak load capacity (100ms) |
| ✔ Operating altitude up to 5000m |
| ✔ LED indicator for power on |
| ✔ Overload protection by shutdown (hiccup), auto-recovery |
| ✔ protected against overload, overvoltage and overtemperature |
| ✔ EMC standards: EN 55032 Class B |
| ✔ Safety standards: UL 62368-1, EN 62368-1, EN 60335-1 (except 55V) |
| ✔ 3-year manufacturer's warranty |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 36V |
| Output current: | 13,9A |
| Power: | 500,4W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 34,2…37,8VDC |
| Efficiency: | 95% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

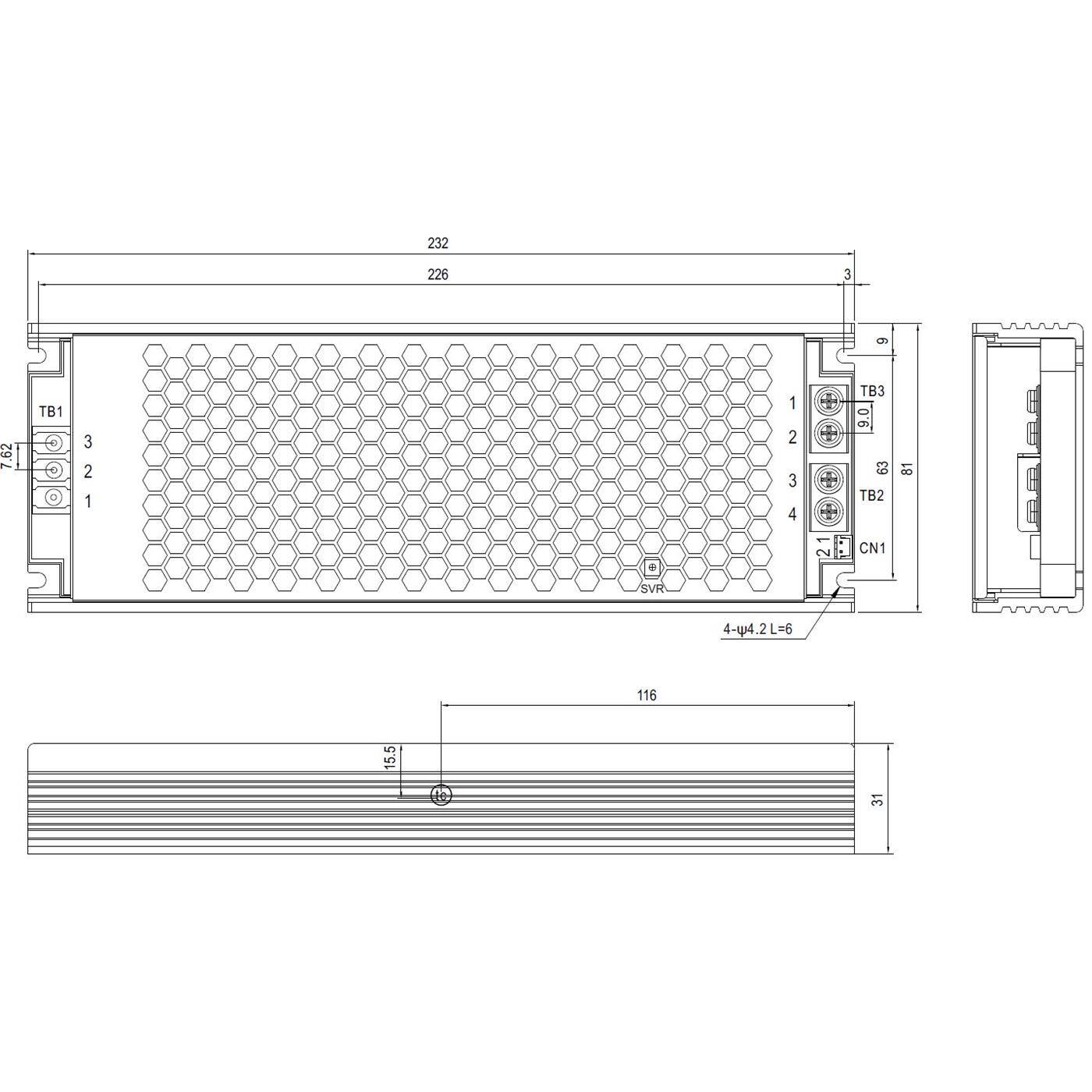

| Length: | 232mm |
| Width: | 81mm |
| Height: | 31mm |
