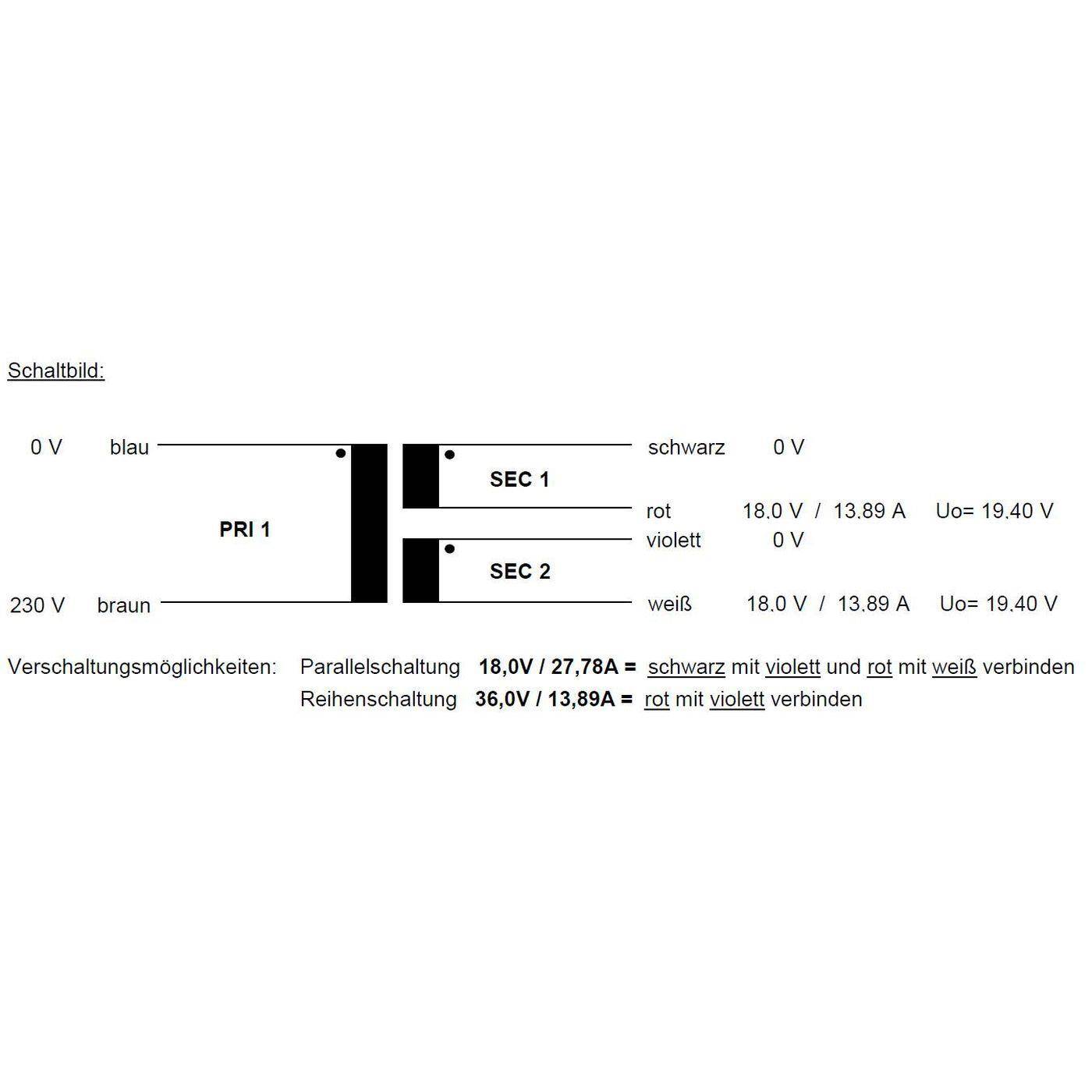

Toroidal transformer 500VA 230V 2x18V 36V Lumonic RSO-826058
Available, delivery time: 1-3 days
Article-No.:
IT-005413
Model:
RSO-826058
Shipping weight:
4.2 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€98.00*
|
| 3 - 5 |
€97.02*
|
| 6 - 10 |
€96.04*
|
| 11 - 20 |
€95.06*
|
| 21 - 50 |
€95.06*
|
| From 51 |
€95.06*
|
Technical specifications
| Power: | 500VA |
|---|---|
| Output voltage: | 2x18V 36V |
| Output current: | 2x13,89A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |
| Diameter: | 142mm |
| Height: | 70mm |
| Weight: | 4,2kg |
| Open circuit voltage: | 2x19,40V |
| No-load loss: | 3,7VA |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
| Efficiency: | 93% |
Zubehör
Inrush current limiter 230V 16A for Transformers Power supplies LED Lumonic SESB-535742
€50.00*
incl. VAT
plus shipping costs

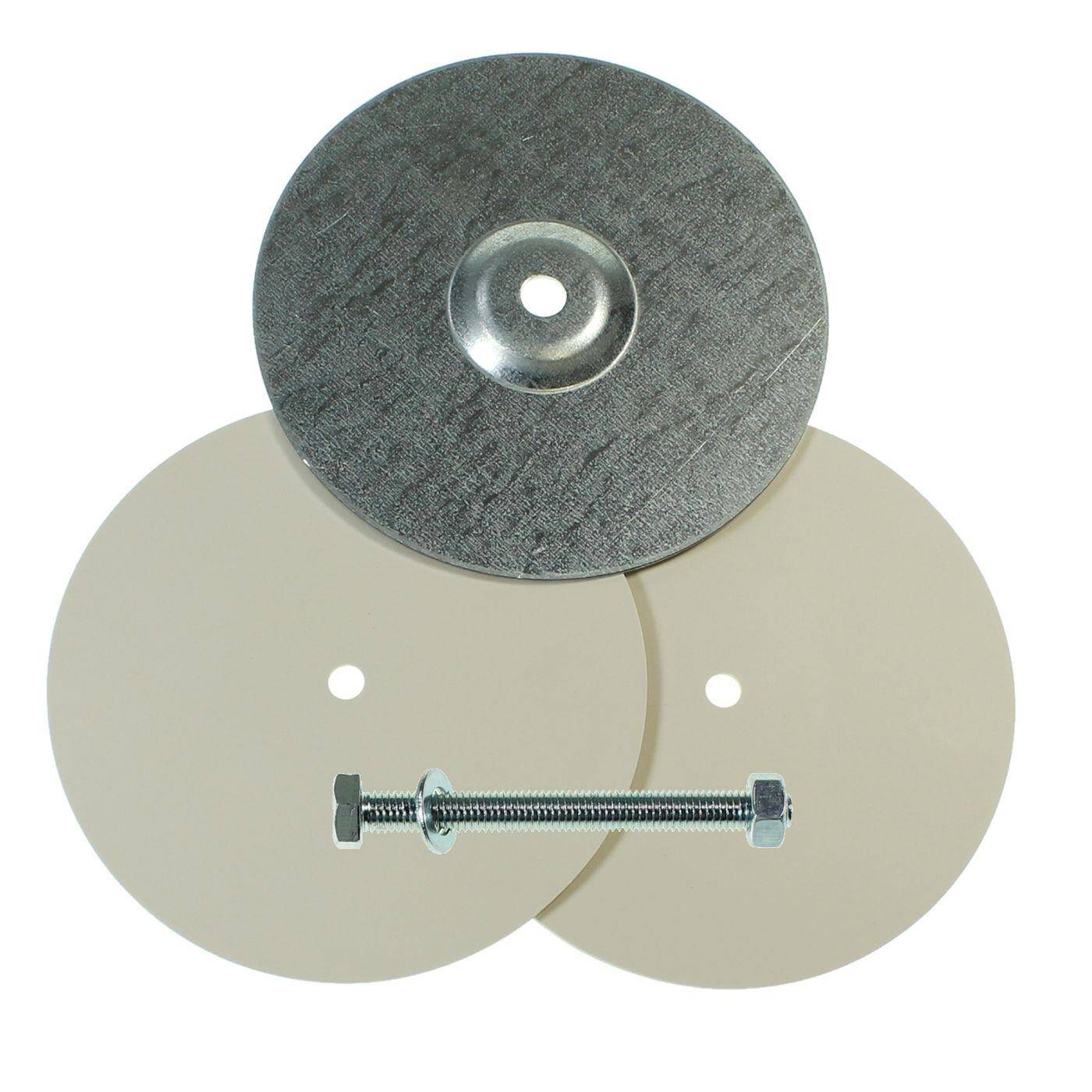

Toroidal transformer Mounting set 110mm Mounting accessories Mounting
