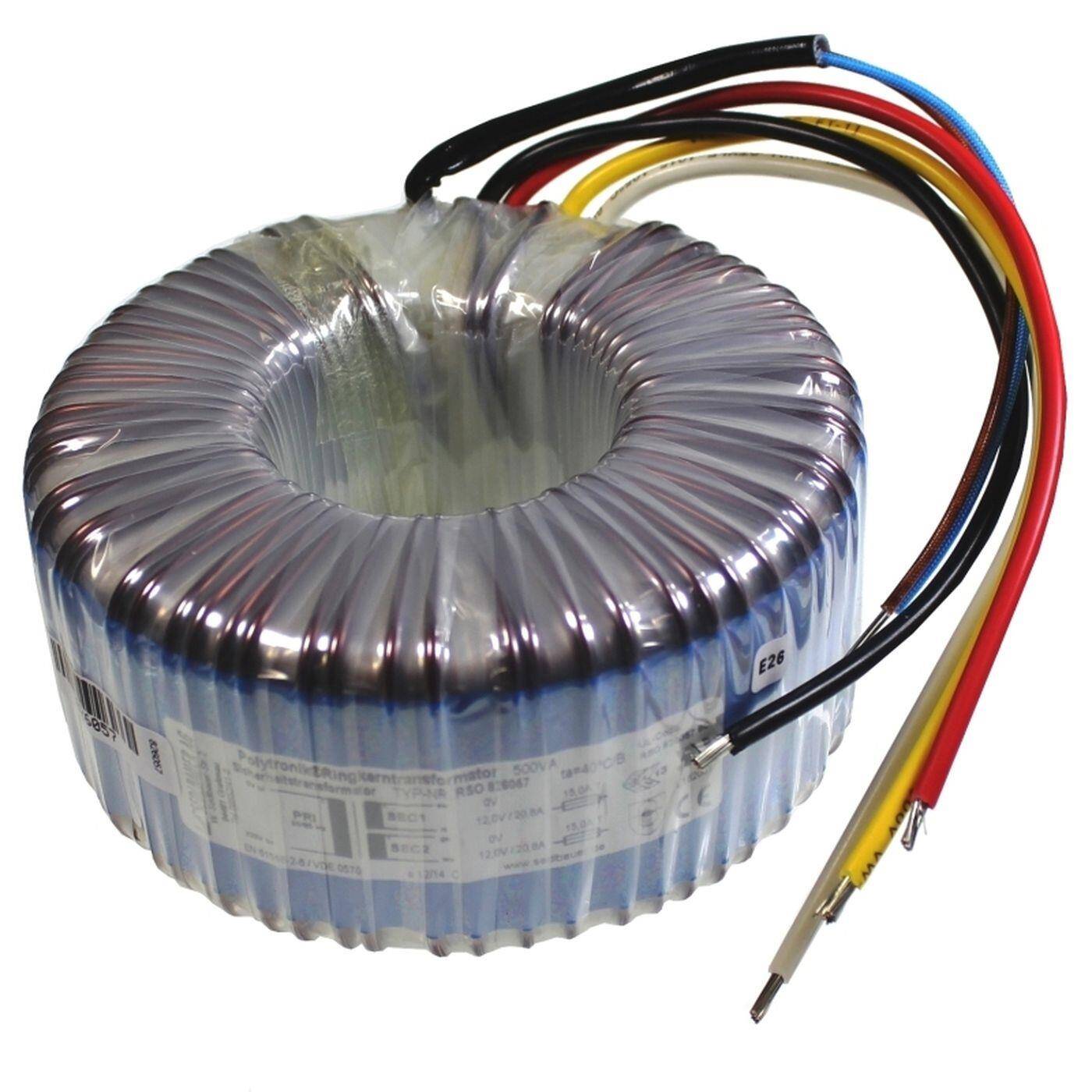

Toroidal transformer 500VA 230V 2x115V 230V Lumonic RTO-826061
No longer available
Article-No.:
IT-005416
Model:
RTO-826061
Shipping weight:
4.2 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€105.00*
|
| 3 - 5 |
€103.95*
|
| 6 - 10 |
€102.90*
|
| 11 - 20 |
€101.85*
|
| 21 - 50 |
€100.80*
|
| From 51 |
€99.75*
|
Technical specifications
| Power: | 500VA |
|---|---|
| Output voltage: | 2x115V 230V |
| Output current: | 2x2,18A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |
| Diameter: | 142mm |
| Height: | 70mm |
| Weight: | 4,2kg |
| Open circuit voltage: | 2x122,10V |
| No-load loss: | 3,7VA |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
| Efficiency: | 93% |
