Toroidal transformer 30VA 230V 2x15V 30V Lumonic RSO-826009
Available, delivery time: 1-3 days
Article-No.:
IT-003251
Model:
RSO-826009
Shipping weight:
0.5 kg
Shipping Zone:
50
ROHS:
Ja

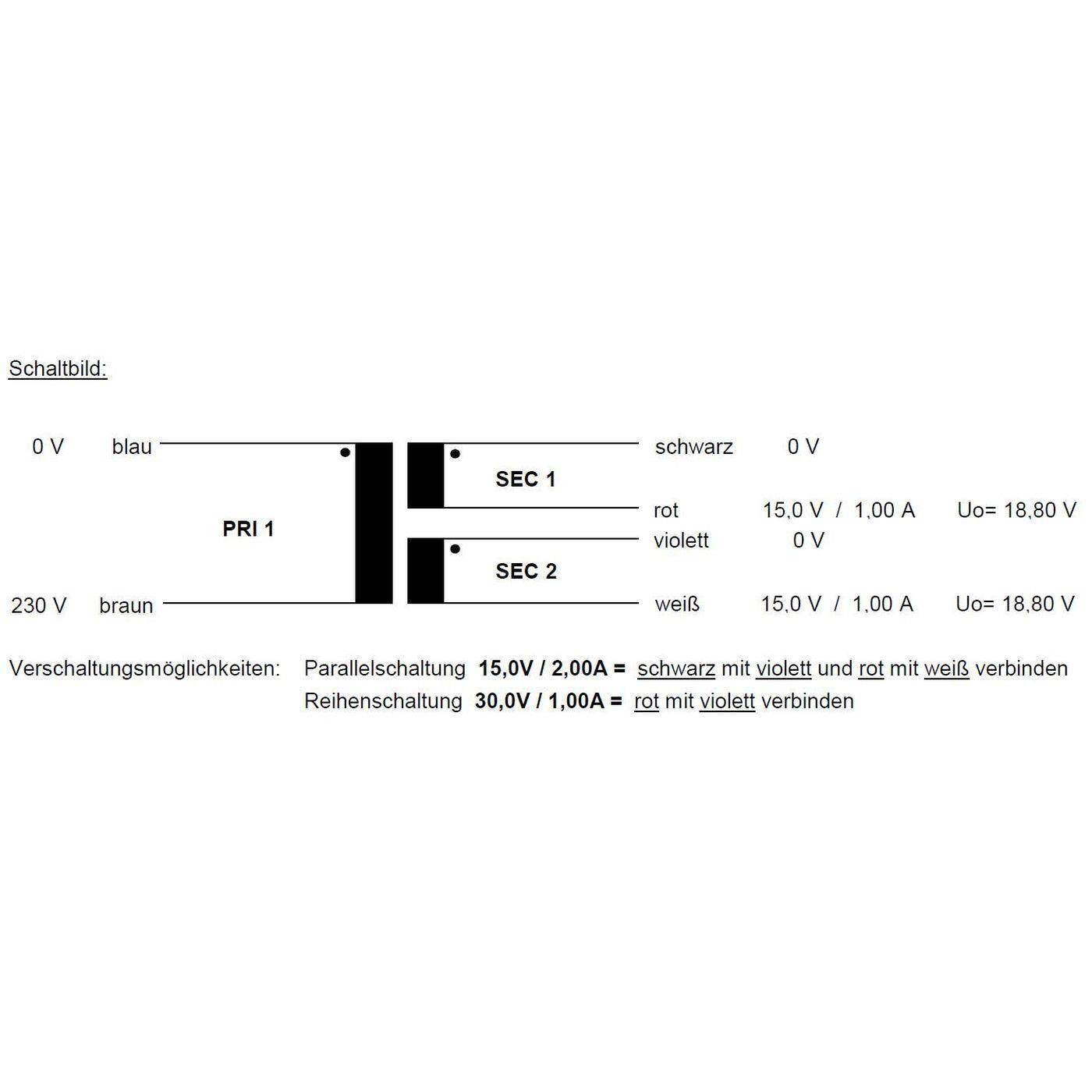

Datasheet:
Technical specifications
| Power: | 30VA |
|---|---|
| Output voltage: | 2x15V 30V |
| Output current: | 2x1,00A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |
| Diameter: | 72mm |
| Height: | 31mm |
| Weight: | 0,45kg |
| Open circuit voltage: | 2x17,20V |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
