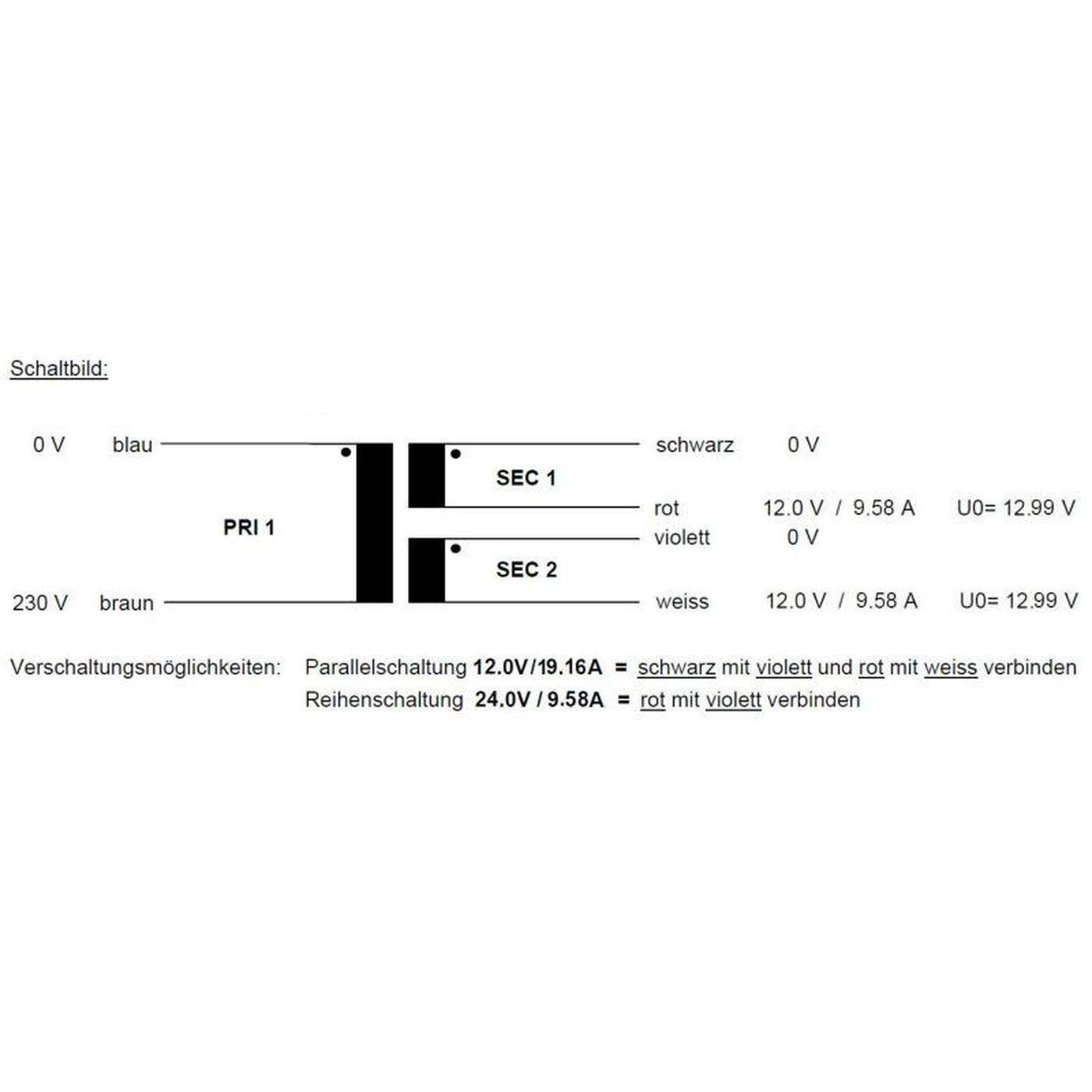

Toroidal transformer 230VA 230V 2x12V 24V Lumonic RSO-861757
Available, delivery time: 1-3 days
Article-No.:
IT-000250
Model:
RSO-861757
Shipping weight:
2.25 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
Technical specifications
| Power: | 230VA |
|---|---|
| Output voltage: | 2x12V 24V |
| Output current: | 2x9,58A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |
| Diameter: | 115mm |
| Height: | 51mm |
| Weight: | 2,2kg |
| Open circuit voltage: | 2x12,99V |
| Max. Temperature: | 40°C |
| Connection Entrance: | Solid wires, 200mm |
| Connection Entrance: | Strands, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
Zubehör
Inrush current limiter 230V 16A for Transformers Power supplies LED Lumonic SESB-535742
€50.00*
incl. VAT
plus shipping costs
Toroidal transformer Mounting set 90mm Mounting accessories Mounting
€5.00*
incl. VAT
plus shipping costs
Ihr Produktverlauf
5x Superbright LEDs 5mm Cold White 6000K for 5V 20cm Cable 10000…15000mcd 45°
€2.00*
(€0.37* / Stück)
incl. VAT
plus shipping costs
100x Cable tie 450 x 7,6mm White Natural 55kg PA6.6 Polyamide Industrial quality
€6.00*
(€0.06* / Stück)
incl. VAT
plus shipping costs
20x Superbright LEDs 5mm Warm White 3000K 20mA 3,2V 10000…15000mcd 45° Conventional LED
€1.40*
(€0.06* / Stück)
incl. VAT
plus shipping costs
Top-hat rail power supply unit BDR-15-5 5V 12W Input 100-240VAC Overload protection DIN-Rail switching power supply Switch cabinet
€7.20*
incl. VAT
plus shipping costs
100x Cable tie 200 x 3,6mm Black 18,2kg PA6.6 Polyamide Industrial quality
€1.50*
(€0.01* / Stück)
incl. VAT
plus shipping costs
Thermal switch 100°C NO contact 250V 10A Temperature switch thermostat KSD301 Bimetal Thermal protection
€2.50*
incl. VAT
plus shipping costs

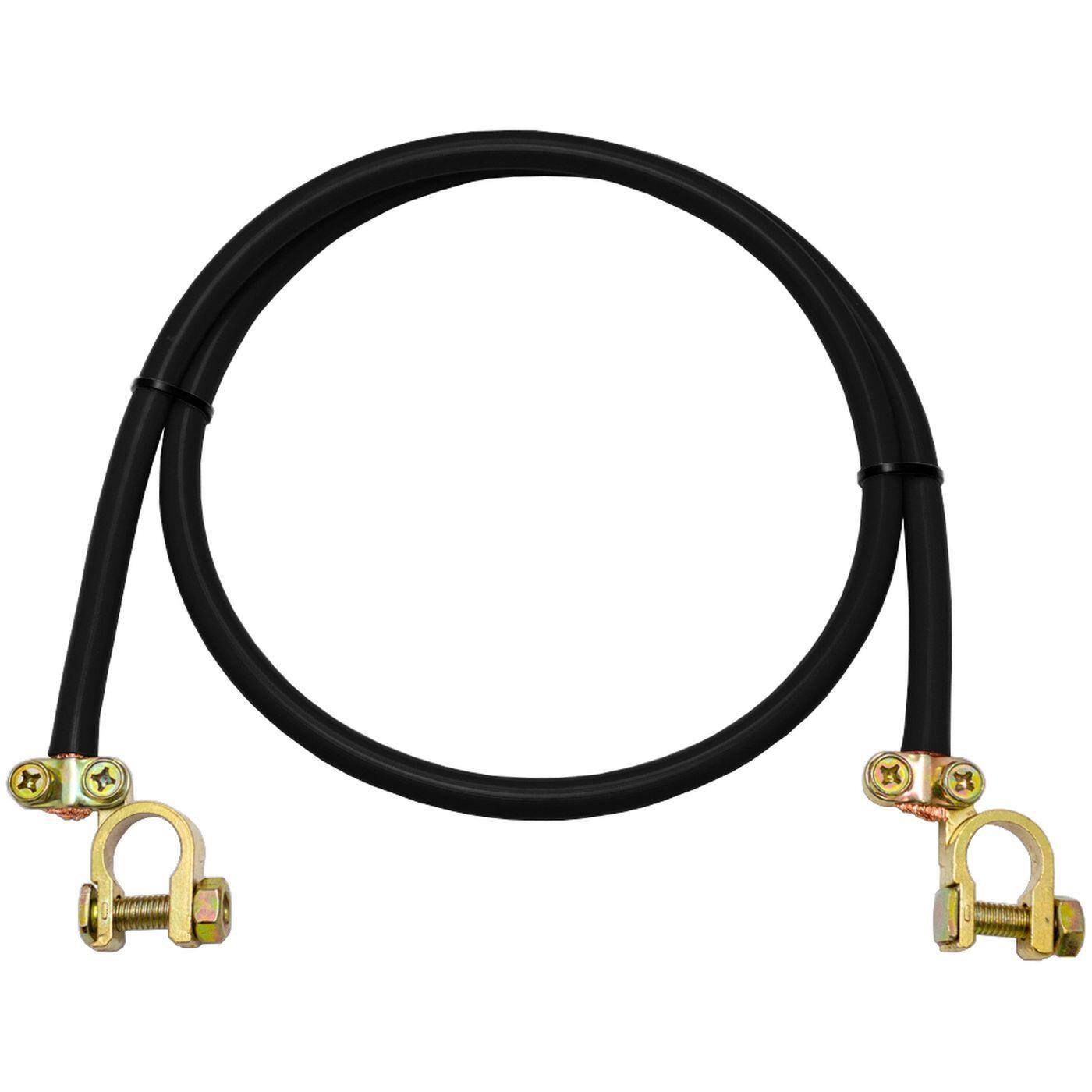

1m Battery cable Earth cable 16mm² Black CAR Power cable 2x Pole terminal 100cm
€10.80*
incl. VAT
plus shipping costs

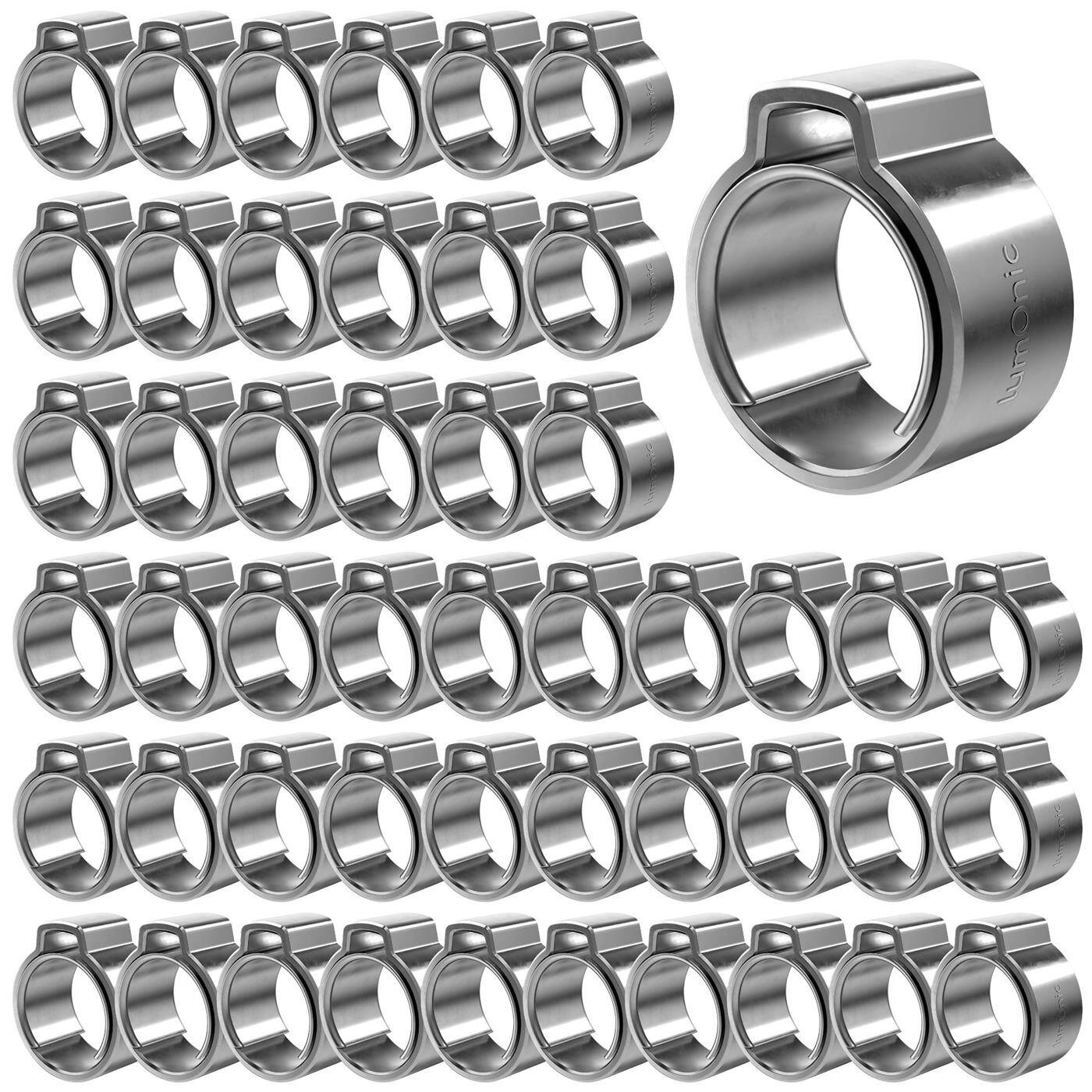

50x 1-ear clip 9,6-11,3mm V2A Stainless steel Single ear clip Hose clamp for Compressed air, Pipe systems, Garden, CAR
