Lumonic Toroidal transformer 200VA | Primary 230V AC | Secondary 2x 30V AC or 1x 60V AC | Humming arm | Transformer for HiFi audio amplifiers

Quantity	Unit price
1 - 5	€48.00*
6 - 10	€47.04*
11 - 20	€46.08*
21 - 50	€45.60*
51 - 100	€45.12*
From 101	€44.64*

Prices incl. VAT plus shipping costs

Stk

aktueller
Bestand

Product description

✔ EFFICIENT: Low power loss and heat generation in continuous operation. Efficiency up to 90% at nominal load, no-load voltage approx. 32.77V (30V nominal voltage), no-load power consumption approx. 2.2W. Suitable for industrial and audio applications..

✔ LOW HUM & TROUBLE-FREE: The toroidal core technology minimizes electromagnetic radiation. No periodic humming that disturbs your hi-fi system. Ideally suited for audiophile DIY projects.

✔ SAFETY: Designed for rated operation with max. temperature rise of 63°C to ambient temperature and dielectric strength of 4kV AC.

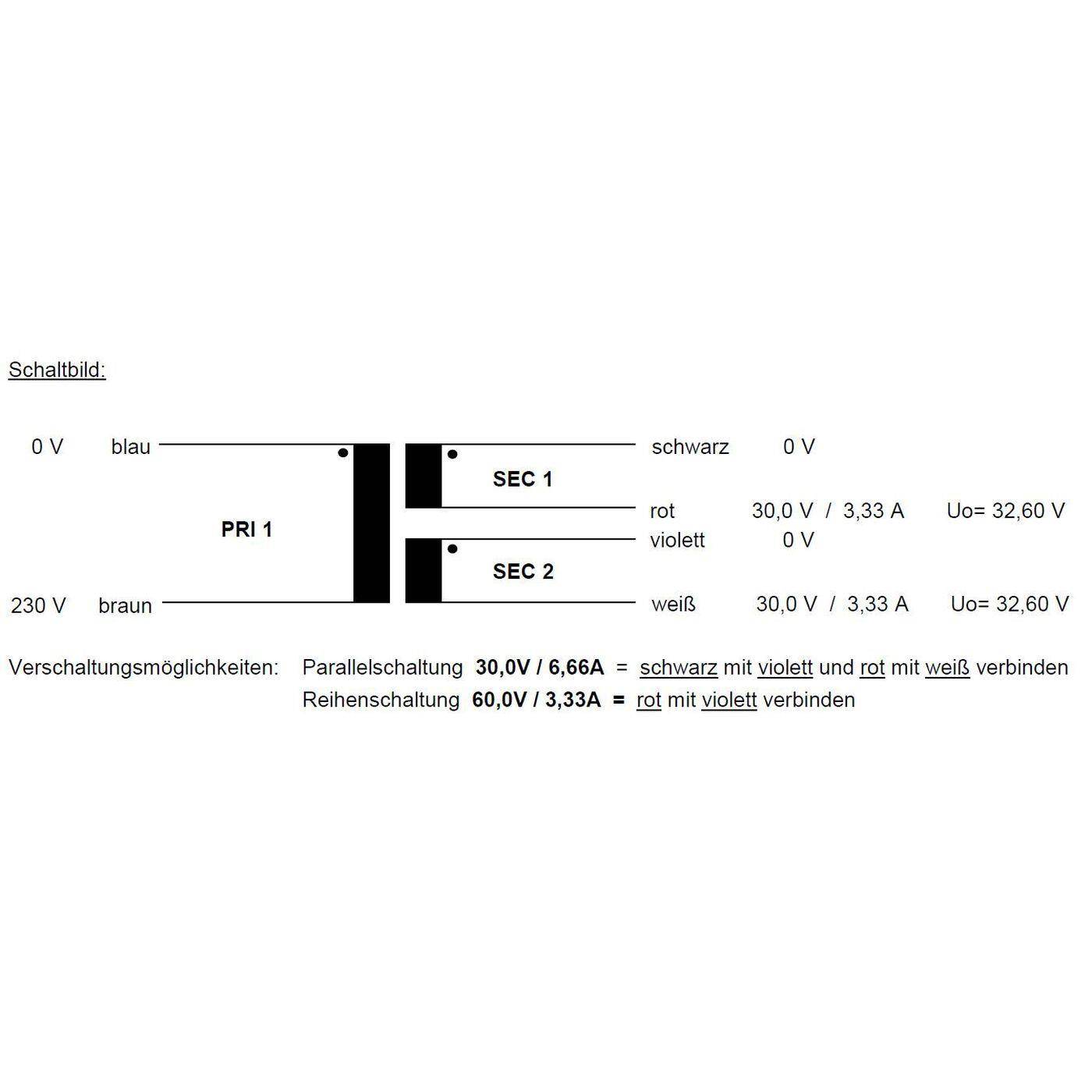

✔ : Compatible with 230V AC networks (50/60Hz) on the primary side. Output voltage on the secondary side is 2x 30V AC or 1x 60V AC. Maximum power 200W.

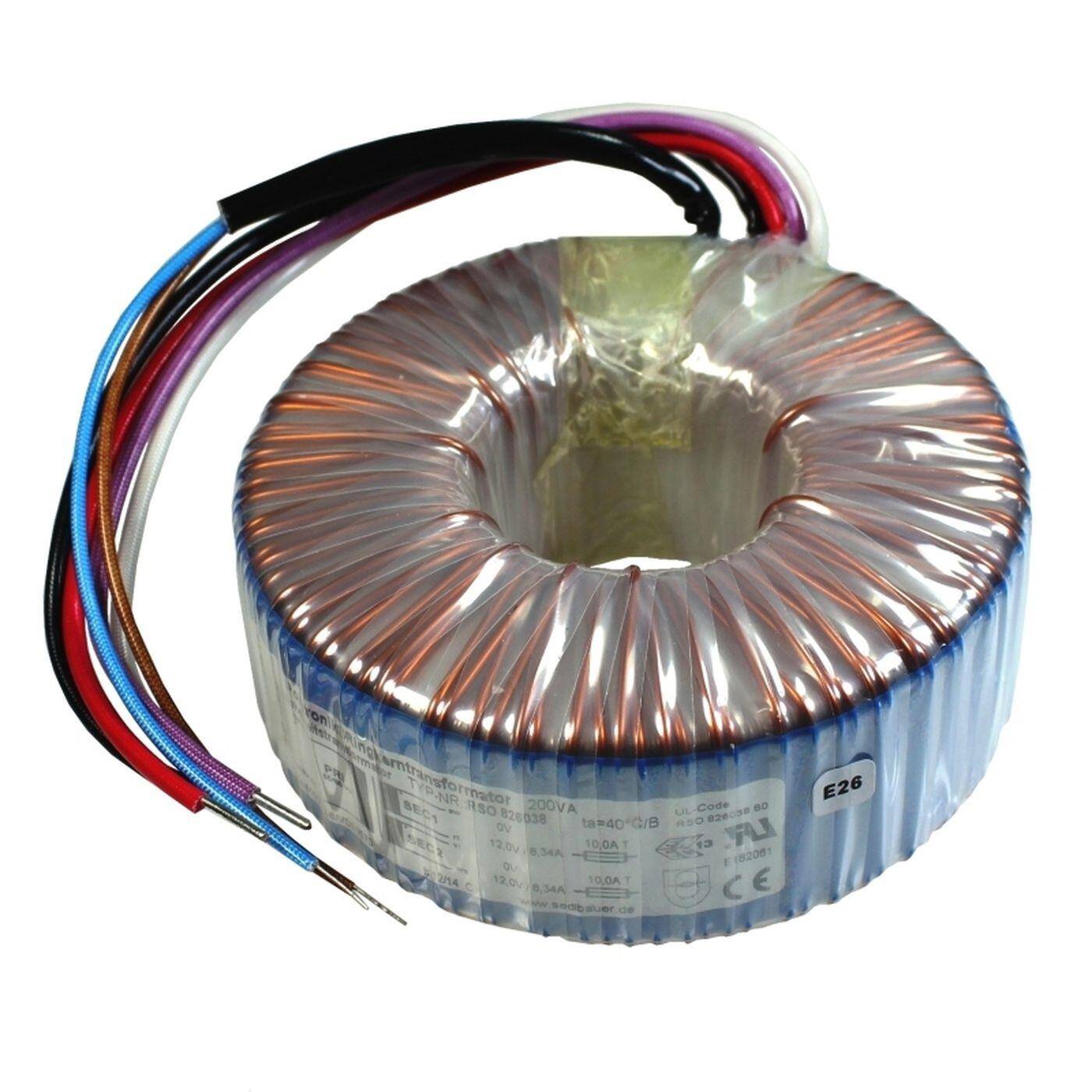

✔ SCOPE OF DELIVERY: 1x Lumonic toroidal transformer 200VA, dimensions 109mm Ø × 52mm height, connection cable 20cm each. Select the appropriate variant depending on the application and ambient conditions.

Technical specifications

Power:	200VA
Output voltage:	2x30V 60V
Output current:	2x3,33A
Input voltage:	230V
Frequency:	50/60Hz
Diameter:	113mm
Height:	45mm
Weight:	1,9kg
Open circuit voltage:	2x32,60V
No-load loss:	1,86VA
Max. Temperature:	40°C
Connection Entrance:	Strands, 200mm
Connection Entrance:	Solid wires, 200mm
Dielectric strength PRI-SEK:	4400V / 4,4kV
Temperature class:	B (130°C)
Transformer grouted:	No
Efficiency:	89%
