Toroidal transformer 200VA 230V 2x24V 48V Lumonic RTO-826040
Available, delivery time: 1-3 days
Article-No.:
IT-005404
Model:
RTO-826040
Shipping weight:
2 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€52.00*
|
| 6 - 10 |
€50.96*
|
| 11 - 20 |
€49.92*
|
| 21 - 50 |
€49.40*
|
| 51 - 100 |
€48.88*
|
| From 101 |
€48.36*
|

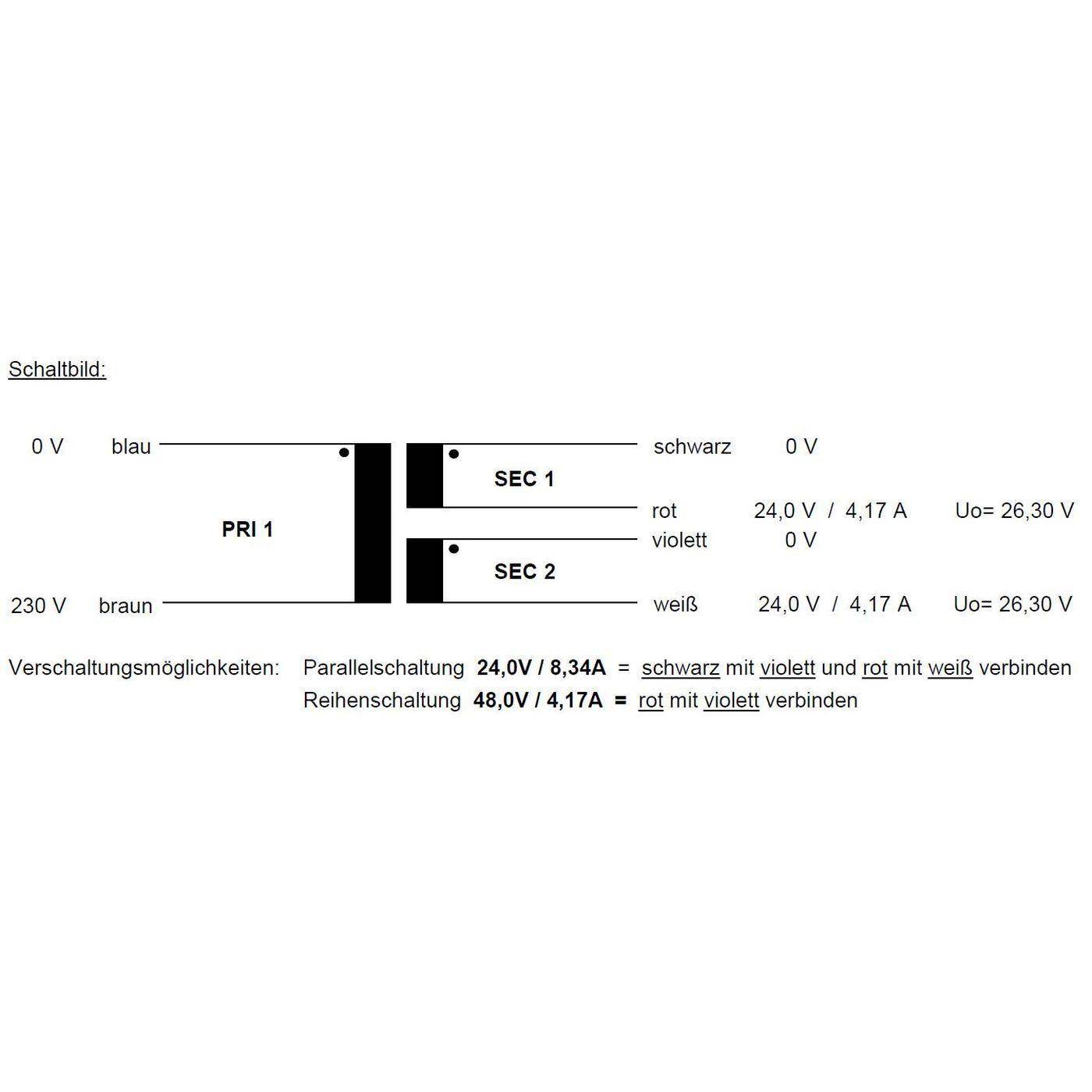

Technical specifications
| Power: | 200VA |
|---|---|
| Output voltage: | 2x24V 48V |
| Output current: | 2x4,17A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |

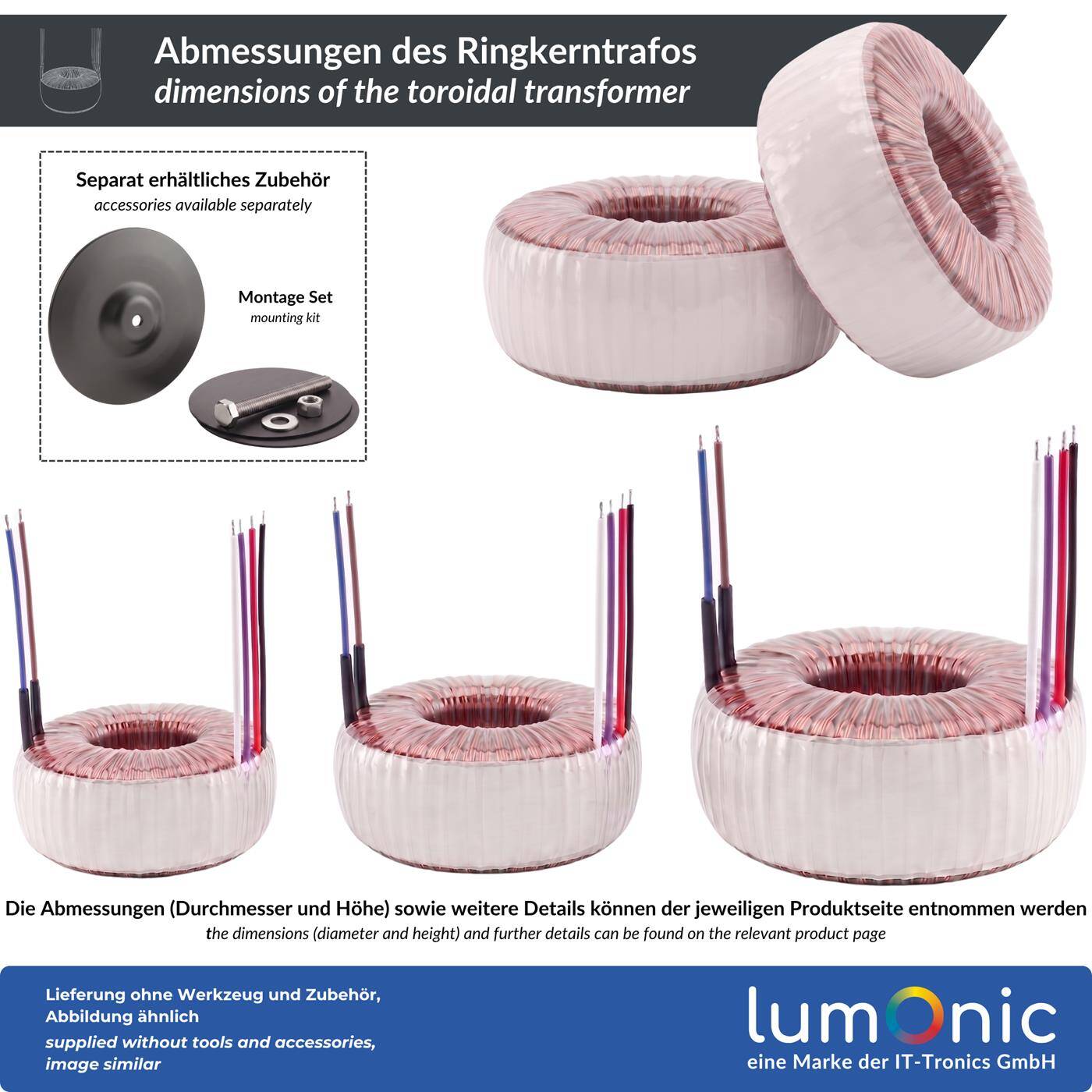

| Diameter: | 113mm |
| Height: | 48mm |
| Weight: | 1,9kg |
| Open circuit voltage: | 2x26,30V |
| No-load loss: | 1,86VA |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
| Efficiency: | 90% |
