Toroidal transformer 150VA 2x115V 2x6V 12V Lumonic RSO-825030
Available, delivery time: 1-3 days
Article-No.:
IT-001442
Model:
RSO-825030
Shipping weight:
1.6 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€65.00*
|
| 3 - 5 |
€64.35*
|
| 6 - 10 |
€63.70*
|
| 11 - 20 |
€63.05*
|
| 21 - 50 |
€62.40*
|
| From 51 |
€61.75*
|
Product description
| ✔ Mark of conformity: EN61558-2 / VDE 0570 with ENEC and UL |
| ✔ Galvanically separated primary and secondary winding (isolating transformer!) |
| ✔ Very low stray magnetic field |
| ✔ Very low no-load losses |
| ✔ Very high efficiency |
| ✔ Maximum ambient temperature ta = 60°C, Temperature class B (130°C) |
| ✔ Temperature switch 130°C integrated in primary winding - Automatically resetting, i.e. the transformer is not destroyed in the event of a short circuit! |
| ✔ Toroidal transformer encapsulated on mounting plate with central through-hole - No further fastening material necessary |

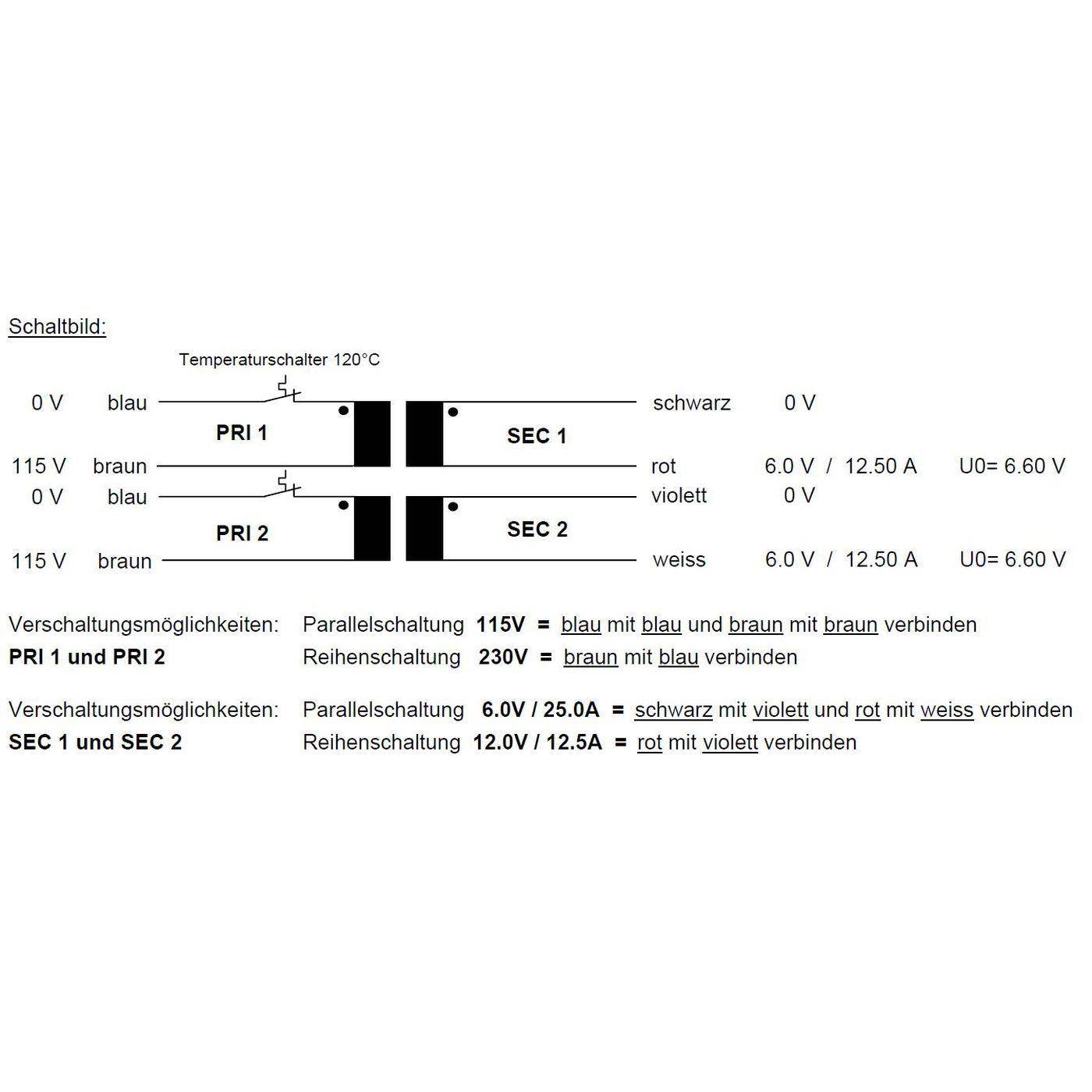

Technical specifications
| Power: | 150VA |
|---|---|
| Output voltage: | 2x6V 12V |
| Output current: | 2x12,50A |
| Input voltage: | 2x115V |
| Frequency: | 50/60Hz |
| Diameter: | 115mm |
| Height: | 47mm |
| Weight: | 1,6kg |
| Open circuit voltage: | 2x6,60 |
| No-load loss: | 1,12VA |
| Max. Temperature: | 60°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Strands, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Thermoswitches: | 130°C (automatically resetting) |
| Transformer grouted: | Yes |
| Efficiency: | 91% |
