Toroidal transformer 100VA 230V 2x9V 18V Lumonic RSO-826025
Available, delivery time: 1-3 days
Article-No.:
IT-005393
Model:
RSO-826025
Shipping weight:
1 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:

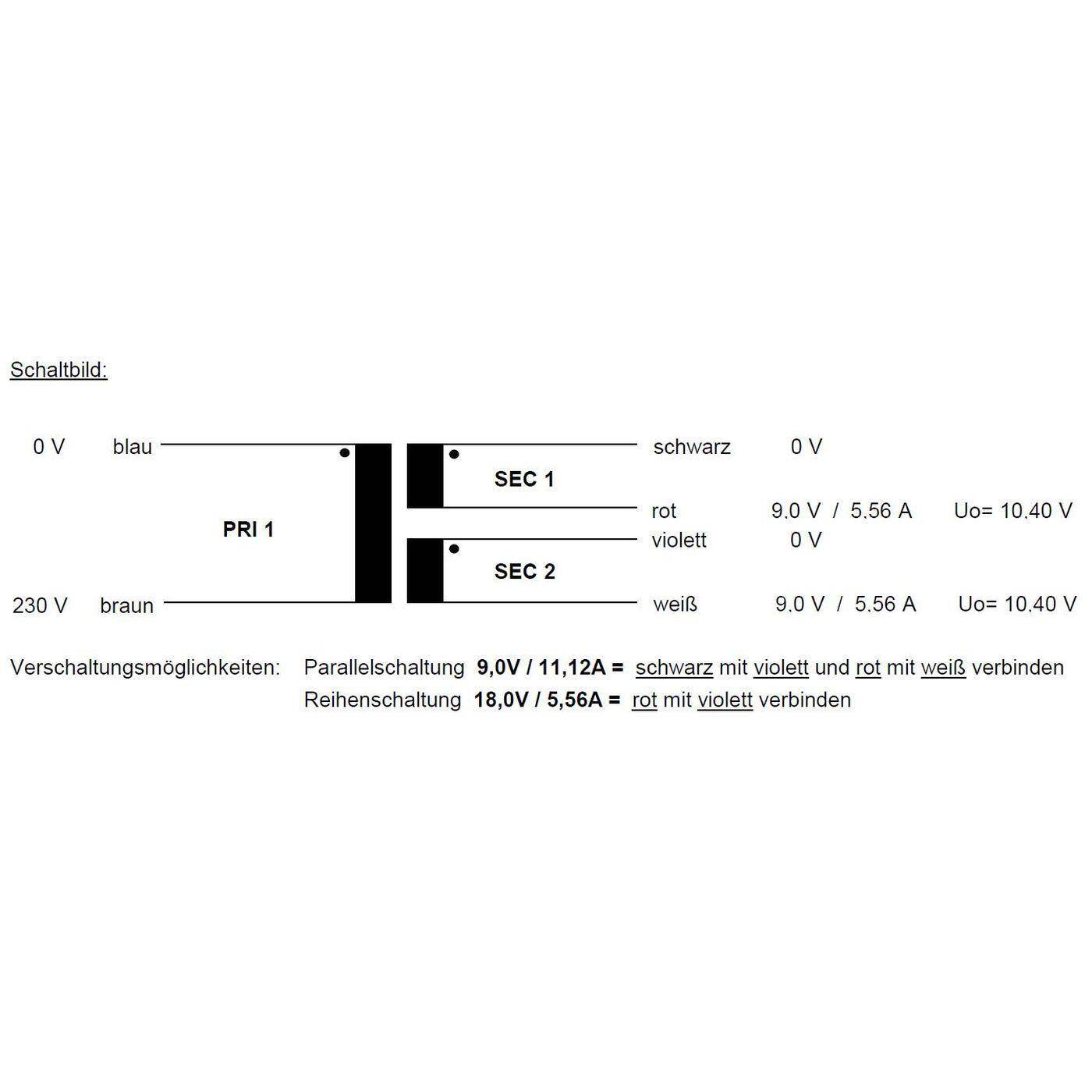

Technical specifications
| Power: | 100VA |
|---|---|
| Output voltage: | 2x9V 18V |
| Output current: | 2x5,56A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |
| Diameter: | 92mm |
| Height: | 42mm |
| Weight: | 0,6kg |
| Open circuit voltage: | 2x10,40V |
| No-load loss: | 0,97VA |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
| Efficiency: | 85% |
