Toroidal transformer 100VA 230V 2x18V 36V Lumonic RSO-826028
No longer available
Article-No.:
IT-005396
Model:
RSO-826028
Shipping weight:
1 kg
Shipping Zone:
60
ROHS:
Ja

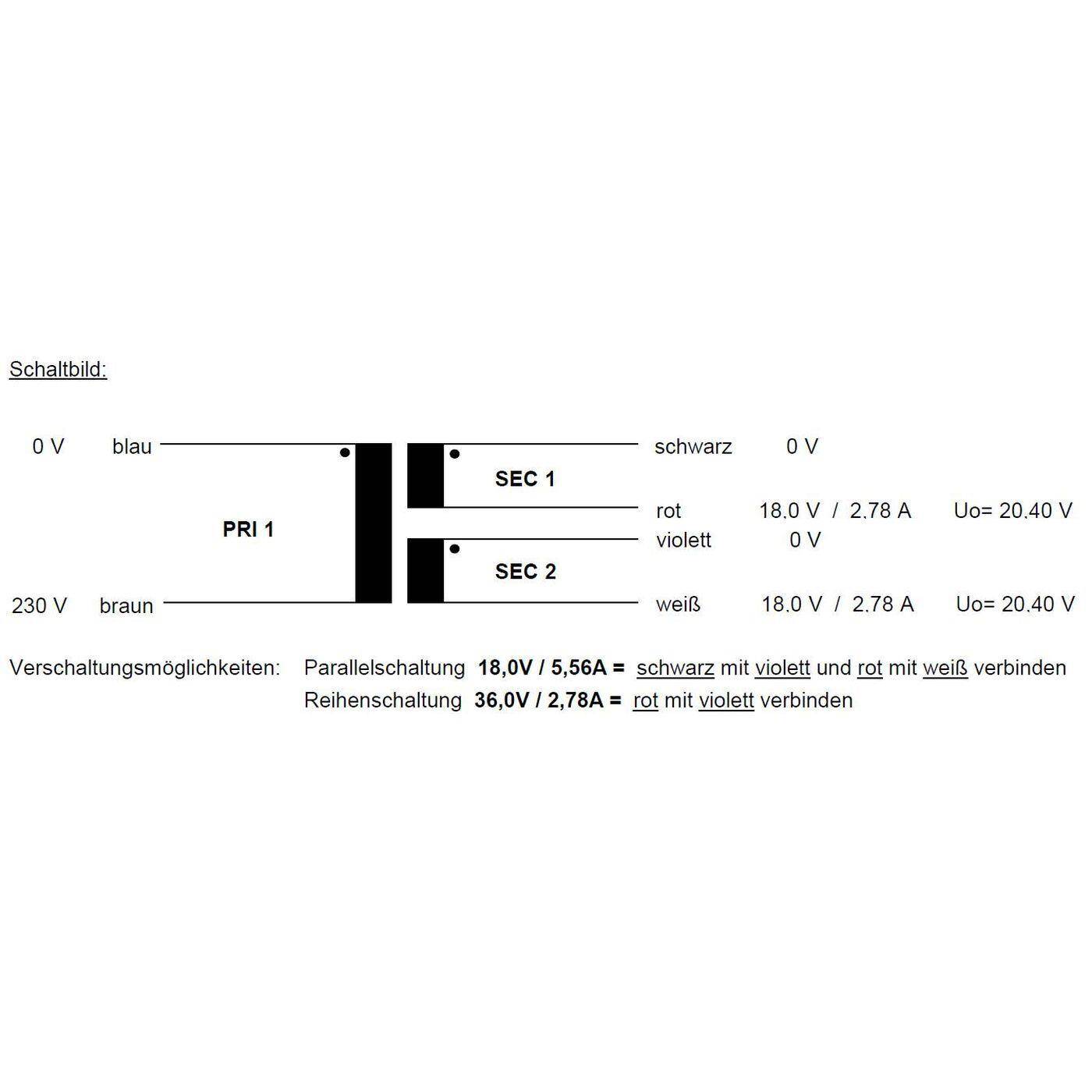

Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€35.00*
|
| 6 - 10 |
€34.65*
|
| 11 - 20 |
€34.30*
|
| 21 - 50 |
€33.95*
|
| 51 - 100 |
€33.95*
|
| From 101 |
€33.95*
|
Technical specifications
| Power: | 100VA |
|---|---|
| Output voltage: | 2x18V 36V |
| Output current: | 2x2,78A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |
| Diameter: | 92mm |
| Height: | 42mm |
| Weight: | 0,6kg |
| Open circuit voltage: | 2x20,40V |
| No-load loss: | 0,99VA |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
| Efficiency: | 85% |
