Toroidal transformer 100VA 230V 2x18V 36V Lumonic RSO-825028

Available, delivery time: 1-3 days

Article-No.: IT-001441

Model: RSO-825028

Shipping weight: 1.2 kg

Shipping Zone: 70

ROHS: Ja

Datasheet:

€45.00*

Content: 1 Stück

Prices incl. VAT plus shipping costs

Stk

aktueller
Bestand

Product description

✔ Mark of conformity: EN61558-2 / VDE 0570 with ENEC and UL

✔ Galvanically separated primary and secondary winding (isolating transformer!)

✔ Very low stray magnetic field

✔ Very low no-load losses

✔ Very high efficiency

✔ Maximum ambient temperature ta = 60°C, Temperature class B (130°C)

✔ Temperature switch 130°C integrated in primary winding - Automatically resetting, i.e. the transformer is not destroyed in the event of a short circuit!

✔ Toroidal transformer encapsulated on mounting plate with central through-hole - No further fastening material necessary

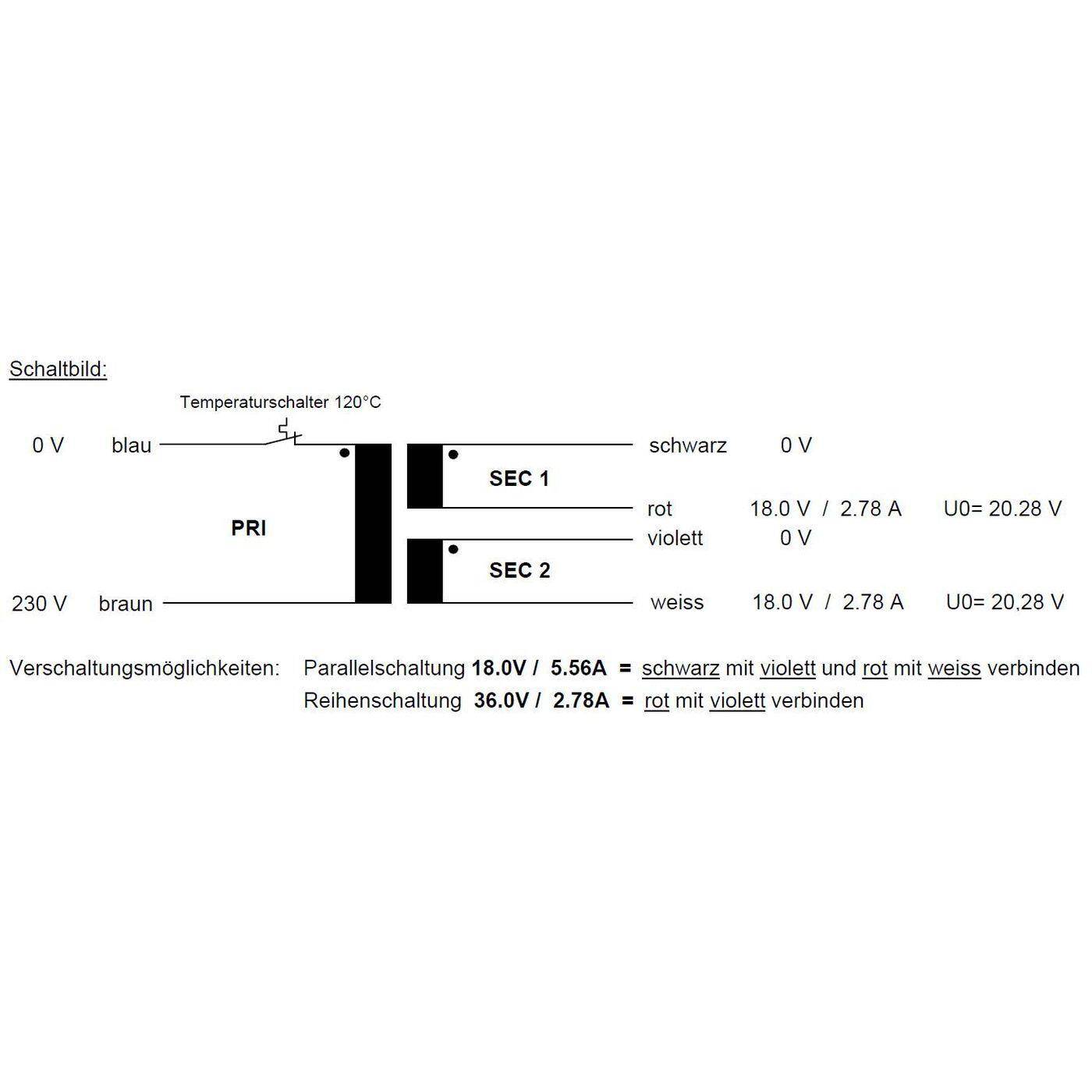

Technical specifications

Power:	100VA
Output voltage:	2x18V 36V
Output current:	2x2,78A
Input voltage:	230V
Frequency:	50/60Hz
Diameter:	95mm
Height:	50mm
Weight:	1,2kg
Open circuit voltage:	2x19,88V
No-load loss:	0,86VA
Max. Temperature:	60°C
Connection Entrance:	Strands, 200mm
Connection Entrance:	Strands, 200mm
Dielectric strength PRI-SEK:	4400V / 4,4kV
Temperature class:	B (130°C)
Thermoswitches:	130°C (automatically resetting)
Transformer grouted:	Yes
Efficiency:	89%
