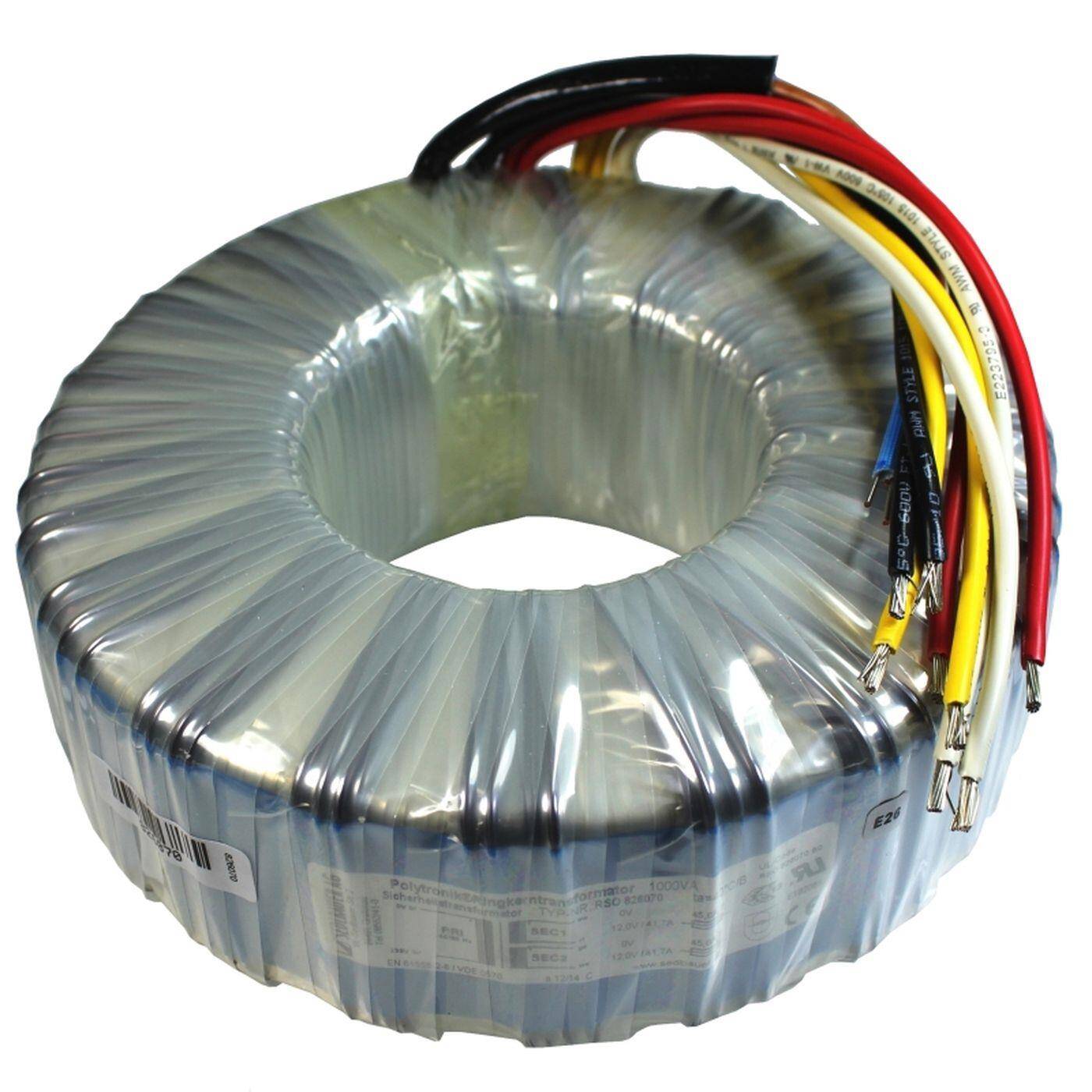

Toroidal transformer 1000VA 230V 2x12V 24V Lumonic RSO-826070
No longer available
Article-No.:
IT-005417
Model:
RSO-826070
Shipping weight:
8.3 kg
Shipping Zone:
90
ROHS:
Ja
Datasheet:
Technical specifications
| Power: | 1000VA |
|---|---|
| Output voltage: | 2x12V 24V |
| Output current: | 2x41,67A |
| Input voltage: | 230V |
| Frequency: | 50/60Hz |
| Diameter: | 195mm |
| Height: | 65mm |
| Weight: | 8,5kg |
| Open circuit voltage: | 2x12,50V |
| No-load loss: | 7,5VA |
| Max. Temperature: | 40°C |
| Connection Entrance: | Strands, 200mm |
| Connection Entrance: | Solid wires, 200mm |
| Dielectric strength PRI-SEK: | 4400V / 4,4kV |
| Temperature class: | B (130°C) |
| Transformer grouted: | No |
| Efficiency: | 93% |
