Top-hat rail power supply unit BDR-30-48 48V 30W Input 100-240VAC Overload protection DIN-Rail switching power supply Switch cabinet
Available, delivery time: 1-3 days
Article-No.:
IT-010359
Model:
BDR-30-48
Shipping weight:
0.142 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€10.00*
|
| 6 - 10 |
€9.80*
|
| 11 - 20 |
€9.60*
|
| 21 - 50 |
€9.50*
|
| 51 - 100 |
€9.40*
|
| From 101 |
€9.30*
|
Product description

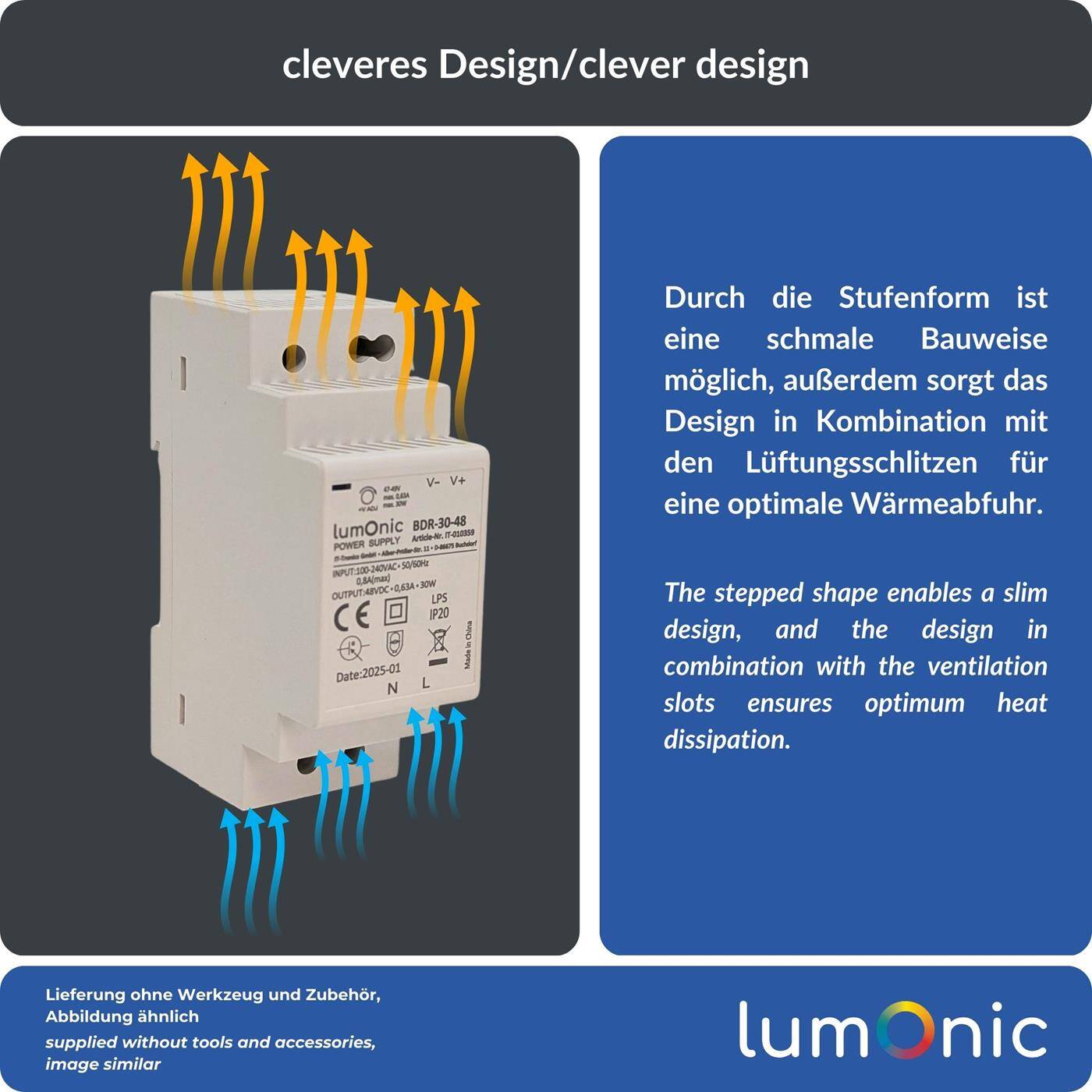

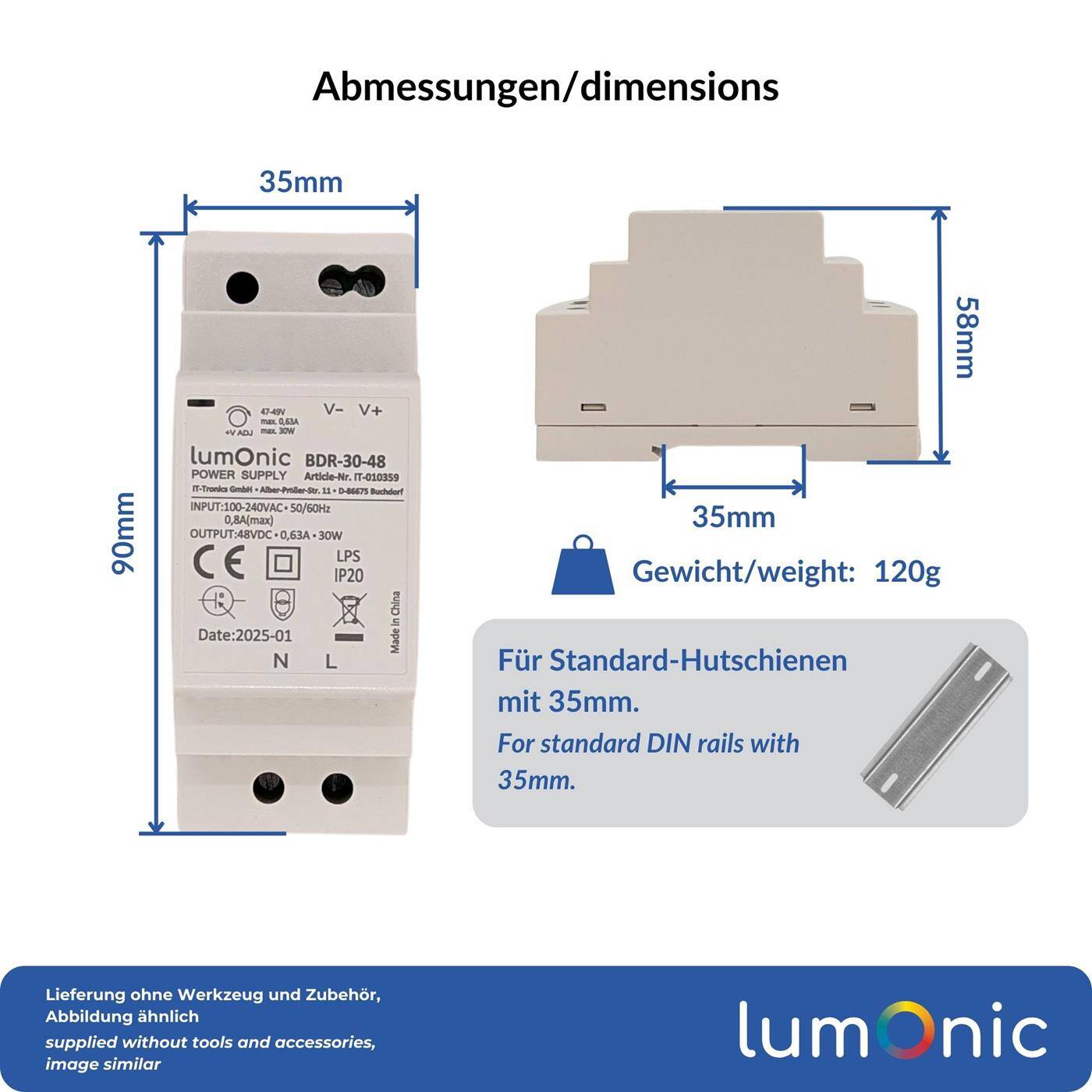

| ✔ COMPACT DIMENSIONS: The powerful power supply can be mounted easily and without tools on 35 mm top-hat rails (TS35/7.5 or TS35/15) and, at 90x35x58 mm (LxWxH), requires only minimal space in the control cabinet. The connection is made via touch-safe screw terminals recessed in the housing for quick and safe installation. |

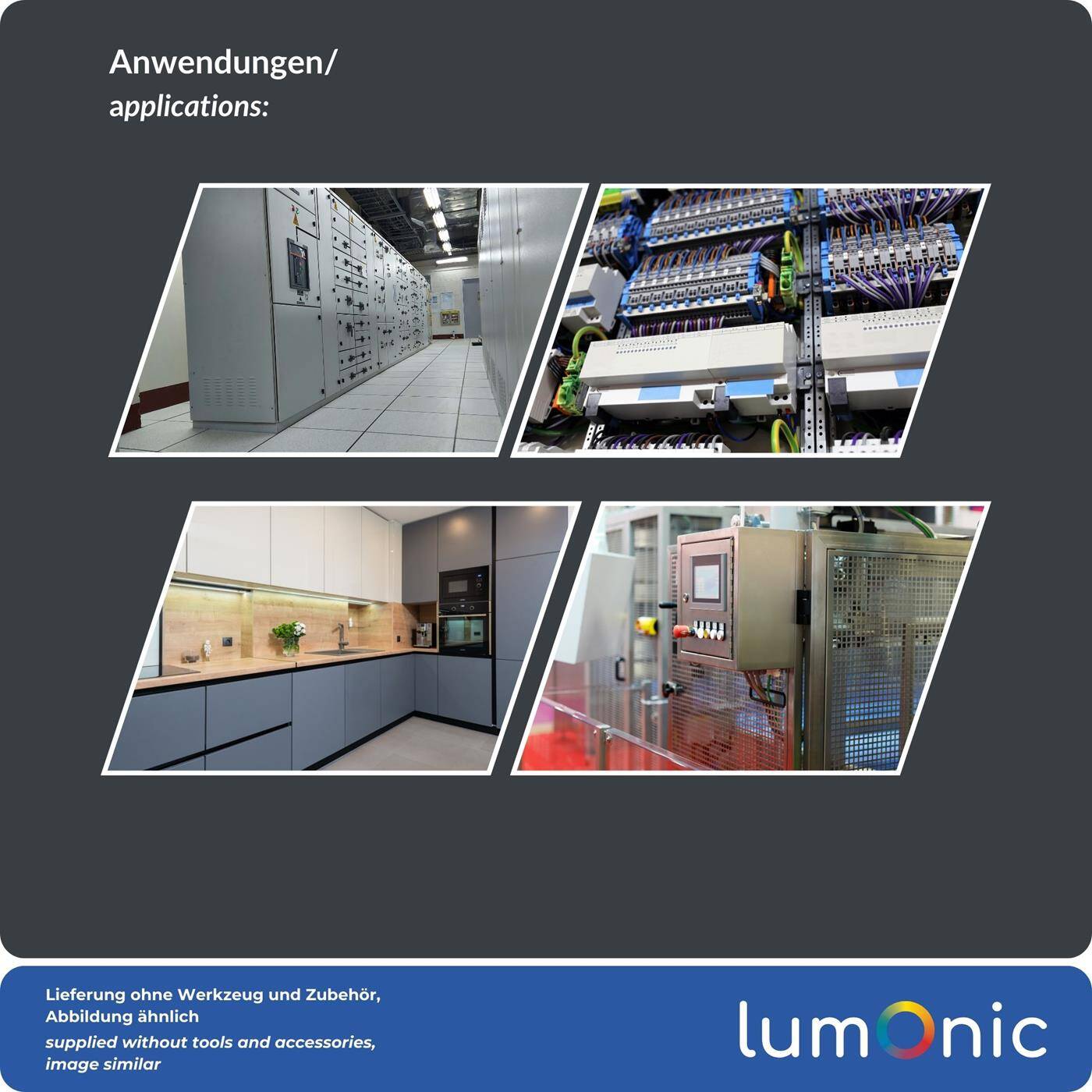

| ✔ RELIABLE PERFORMANCE: Designed for continuous operation, the power supply unit is ideal for industrial applications, switch cabinet construction, LED lighting, alarm and intercom systems and home automation. A status LED indicates that the device is ready for use. The permissible ambient temperature of -20°C to 70°C underlines the very wide range of applications. |

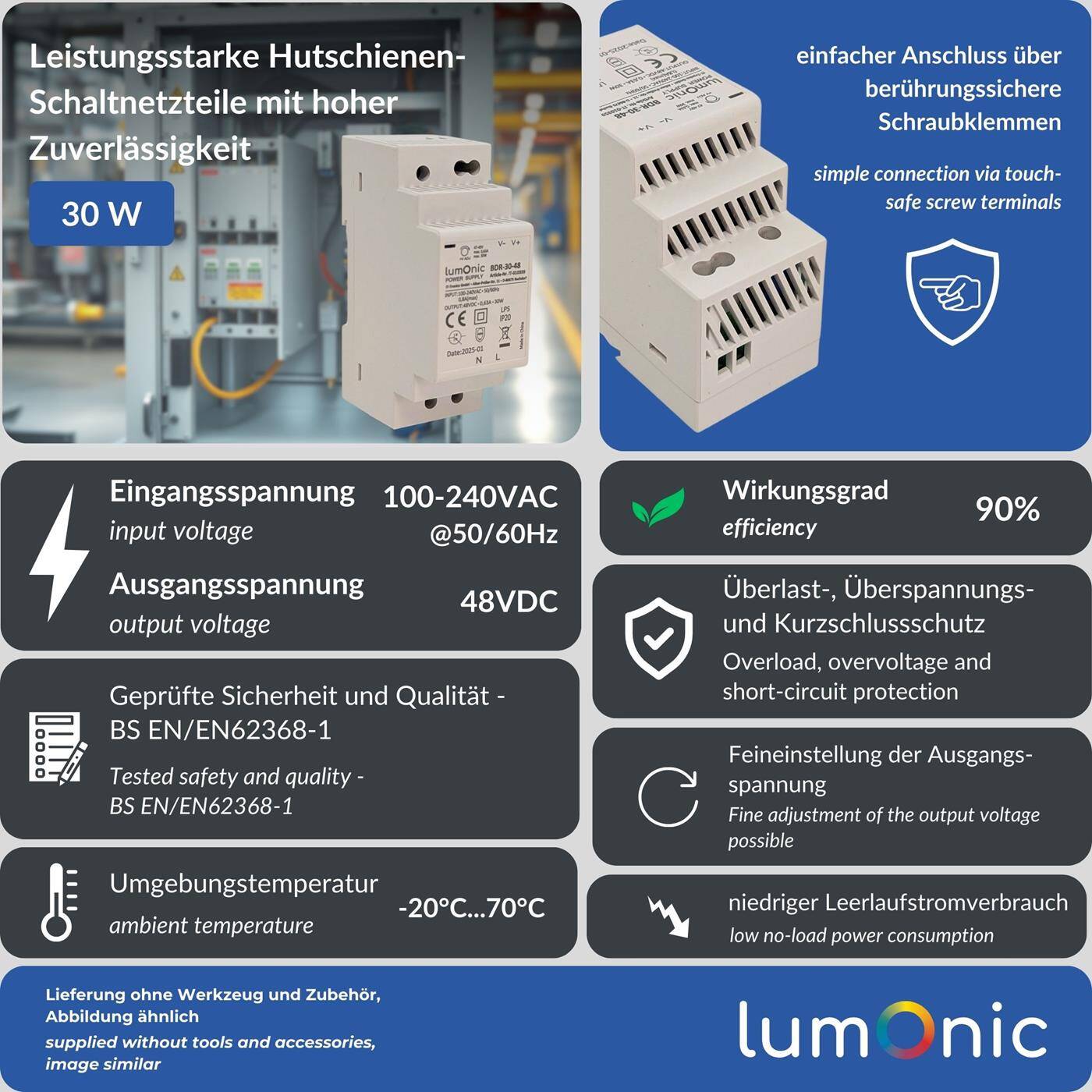

| ✔ STABLE POWER SUPPLY: Thanks to the universal input voltage of 100-240VAC (@50/60Hz), the switching power supply can be used worldwide. The precise 48V DC voltage output delivers max. 30W or 0.63A. |
| ✔ FINE-TUNING AND EFFICIENCY: The output voltage can be finely adjusted between 43.2...55.2VDC using a small screwdriver so that even sensitive projects are reliably supplied.The power supply unit also impresses with its high efficiency of 90% and excellent ripple and noise values of just 240mVp-p. |

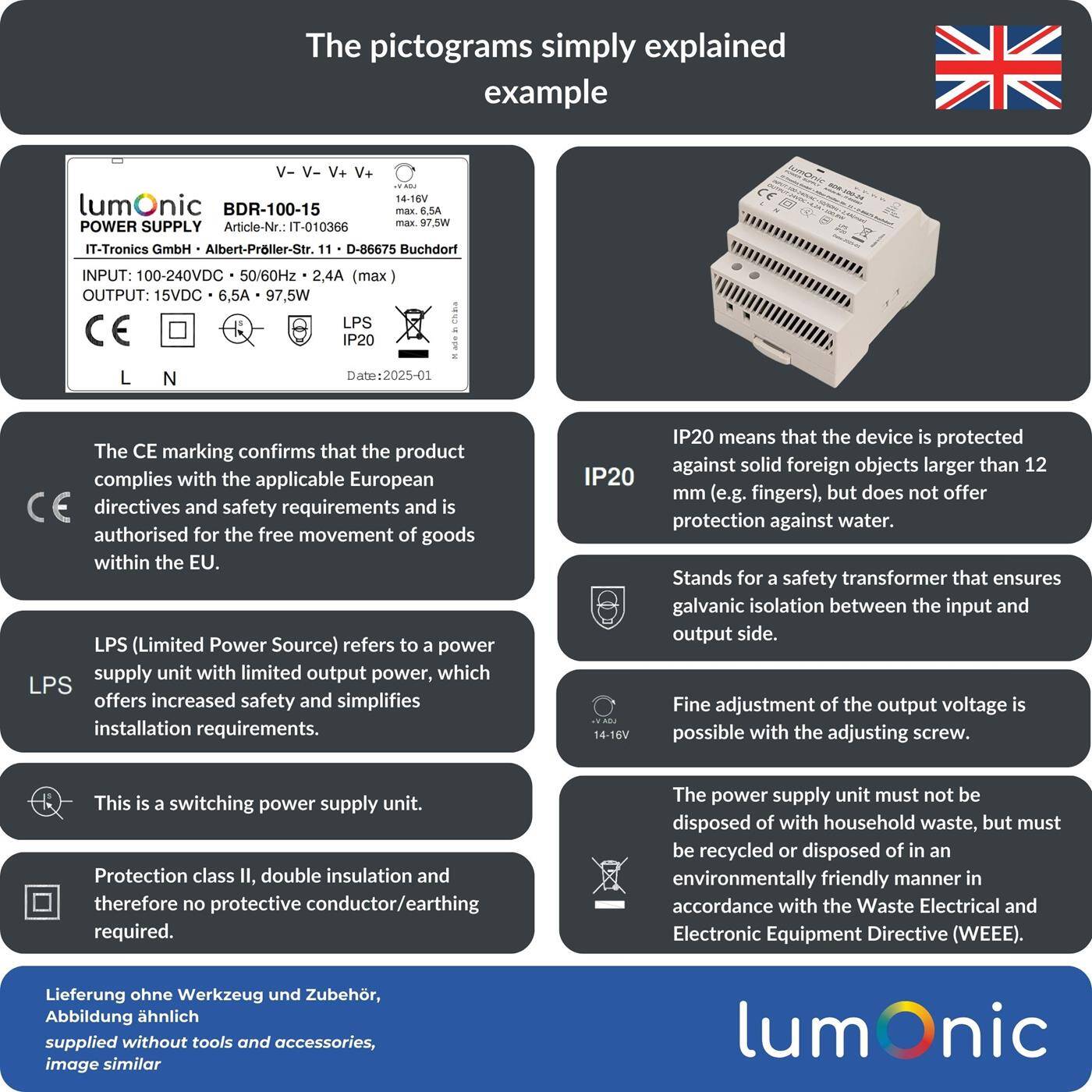

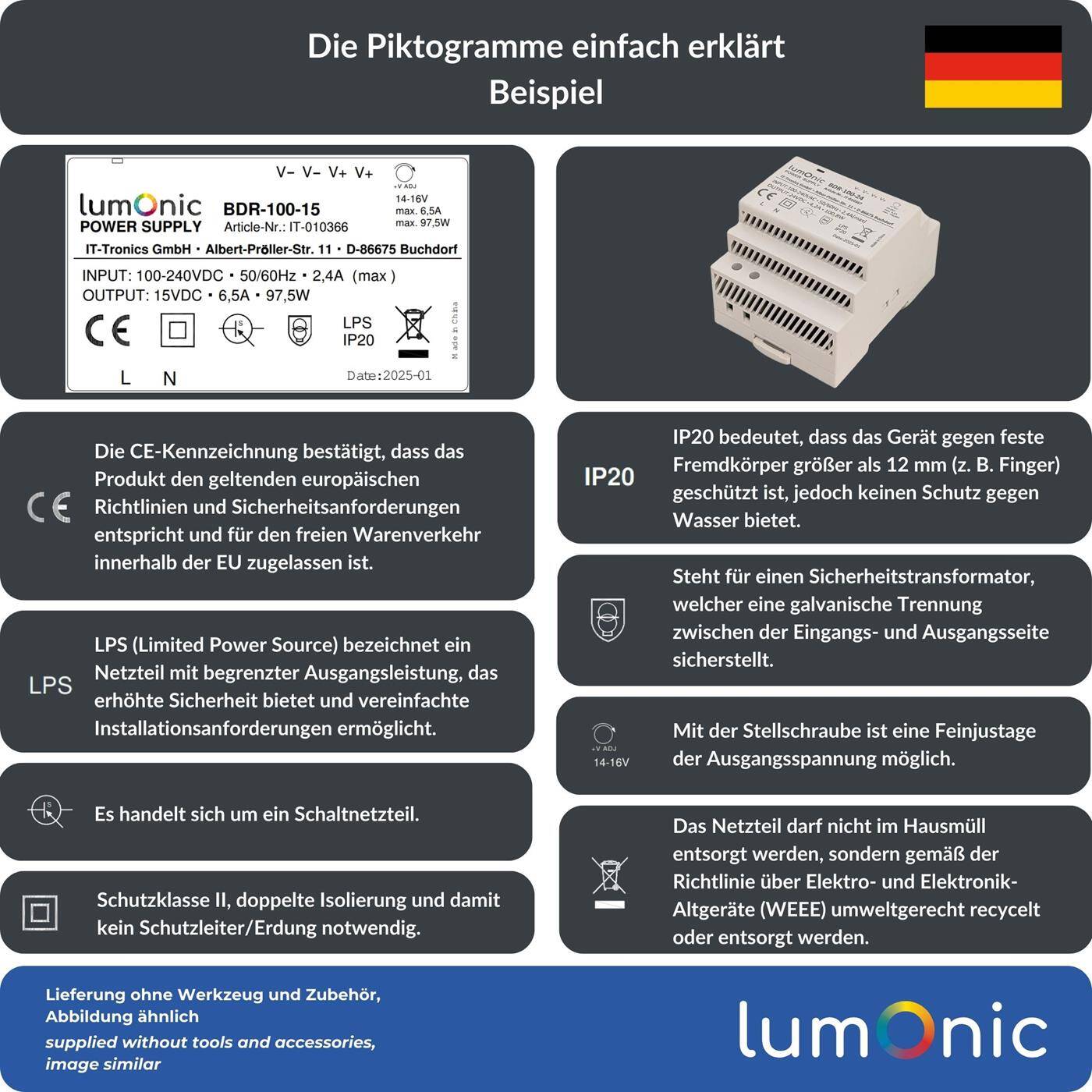

| ✔ SAFETY: The short-circuit-proof DIN rail power supply unit has overvoltage and overload protection. The device complies with the BS/EN 62368-1 standard and corresponds to protection class II. |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 0,63A |
| Power: | 30W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 43,2...55,2VDC |
| Efficiency: | 90% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
| Length: | 90mm |
| Width: | 35mm |
| Height: | 58mm |
