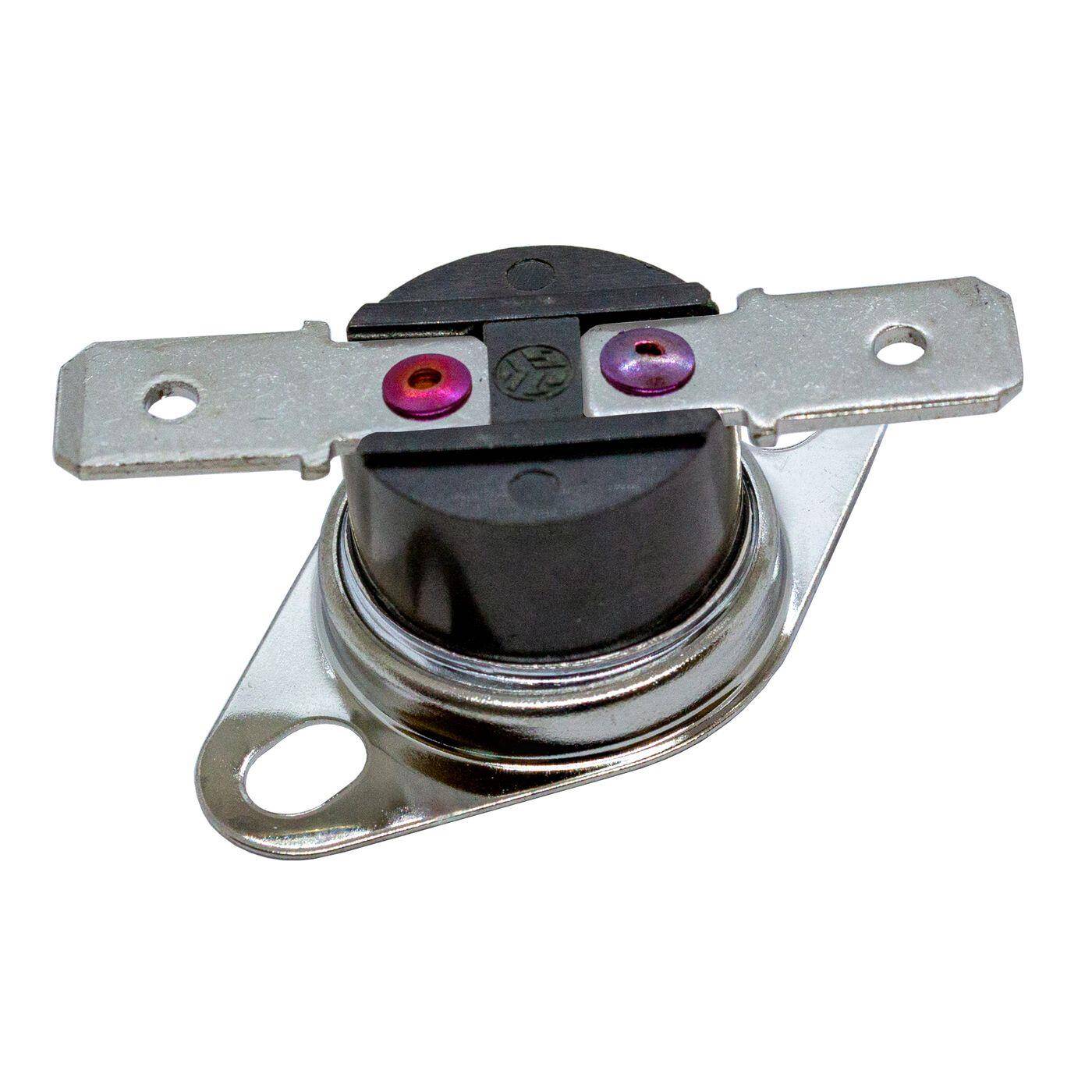

Thermal switch 50°C NO contact 250V 10A Temperature switch thermostat KSD301 Bimetal Thermal protection
Available, delivery time: 1-3 days
Article-No.:
IT-008309
Shipping weight:
0.006 kg
Shipping Zone:
30
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 10 |
€2.50*
|
| 11 - 20 |
€2.45*
|
| 21 - 50 |
€2.40*
|
| 51 - 100 |
€2.38*
|
| 101 - 200 |
€2.35*
|
| From 201 |
€2.33*
|
Product description
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Erfüllt: RoHS, SAE-AMS-DTL-23053/4 |
| ✔ {Min. Temperatur zur vollständigen Schrumpfung}: +110°C |
| ✔ UV resistant |
Technical specifications
| Type: | Temperature switch KSD301 |
|---|---|
| Switching contact: | NO contact |
| Switching temperature: | 50°C |
| Switching temperature Tolerance: | ± 5°C |
| Reset temperature: | 35°C |
| Reset temperature Tolerance: | ± 8°C |
| Maximum load capacity AC: | 250V 10A |
| Contact resistance: | 50mOhm |
| Material Casing: | Metal & Plastic |
| Dimensions Casing: | d15x12mm |
| Connection: | Flat plug 6,3x0,8mm |
