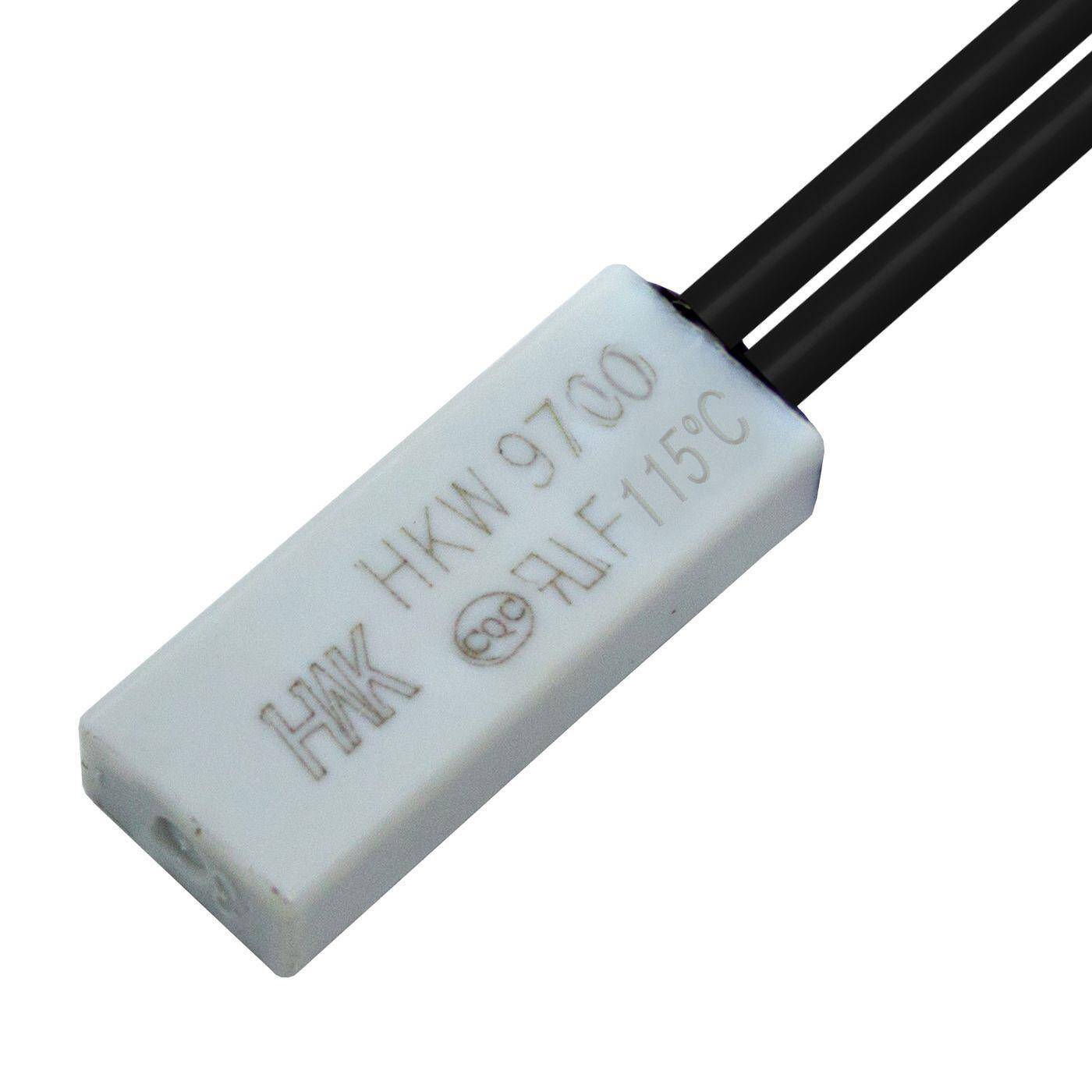

Thermal switch 115°C NO contact 250V 5A Cable Temperature switch thermostat HKW9700 Bimetal Thermal protection
Available, delivery time: 1-3 days
Article-No.:
IT-008289
Shipping weight:
0.003 kg
Shipping Zone:
10
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 20 |
€1.30*
|
| 21 - 50 |
€1.27*
|
| 51 - 100 |
€1.25*
|
| 101 - 200 |
€1.22*
|
| 201 - 500 |
€1.20*
|
| From 501 |
€1.17*
|
Product description
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Erfüllt: RoHS, SAE-AMS-DTL-23053/4 |
| ✔ {Min. Temperatur zur vollständigen Schrumpfung}: +110°C |
| ✔ UV resistant |
Technical specifications
| Type: | Temperature switch HKW9700 |
|---|---|
| Switching contact: | NO contact |
| Switching temperature: | 115°C |
| Switching temperature Tolerance: | ± 5°C |
| Reset temperature: | 80°C |
| Reset temperature Tolerance: | ± 15°C |
| Maximum load capacity AC: | 250V 5A |
| Maximum load capacity DC: | 24V 8A |
| Contact resistance: | 50mOhm |
| Material Casing: | Plastic |
| Dimensions Casing: | 21x8x4mm |
| Connection: | Cable 70mm |
