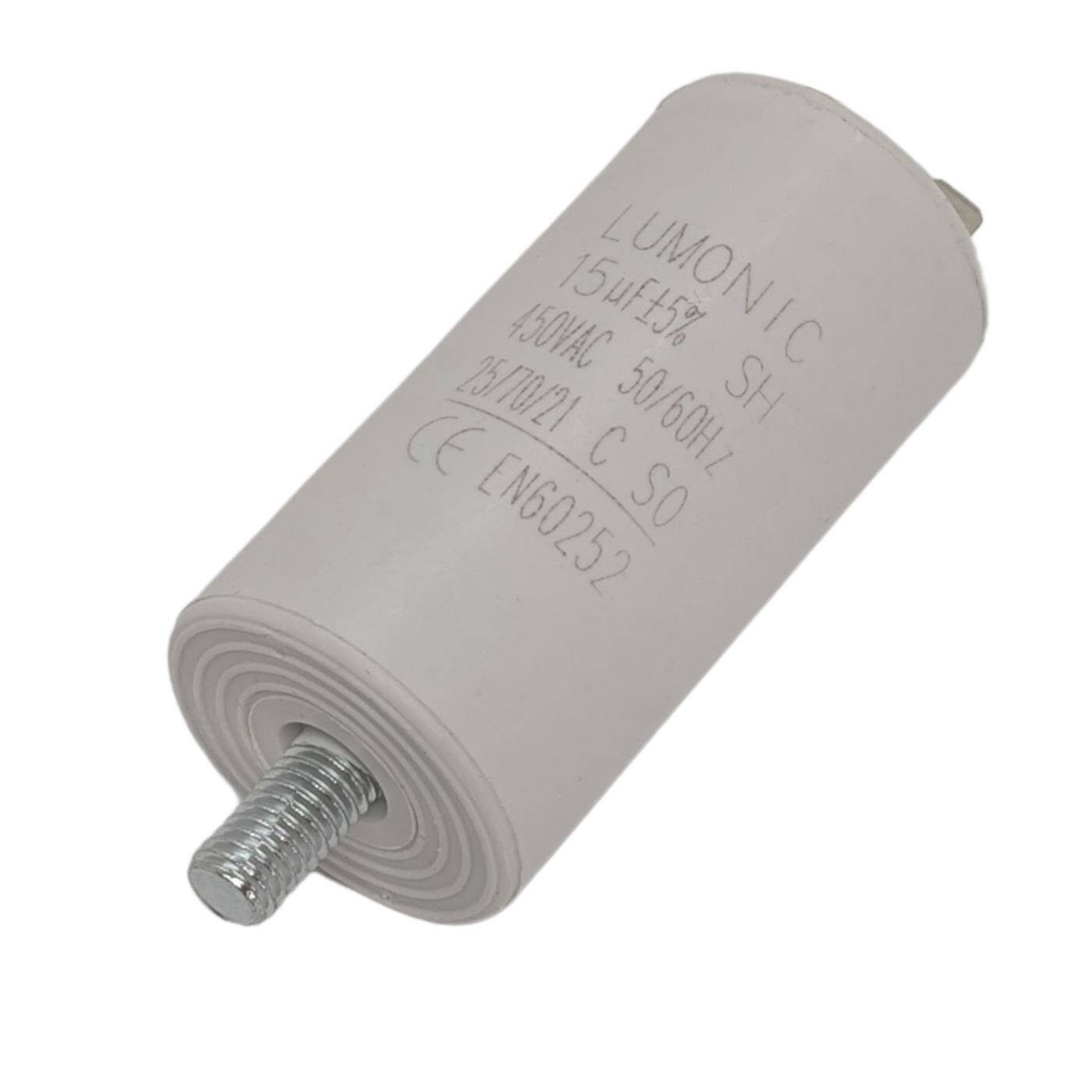

Starting capacitor with Plug 6,3x0,8mm 15µF 450V 34x70mm 15uF Motor capacitor with plastic housing
Available, delivery time: 1-3 days
Article-No.:
IT-010312
Model:
LuMK-PC-0150-450-P
Shipping weight:
0.065 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 10 |
€4.00*
|
| 11 - 20 |
€3.92*
|
| 21 - 50 |
€3.84*
|
| 51 - 100 |
€3.80*
|
| 101 - 200 |
€3.76*
|
| From 201 |
€3.72*
|
Product description
| ✔ SIMPLE INSTALLATION: The polarity-independent connection enables quick and error-free installation. The capacitor can be easily and securely fixed in your application using the M8x10 connection bolt on the underside. |

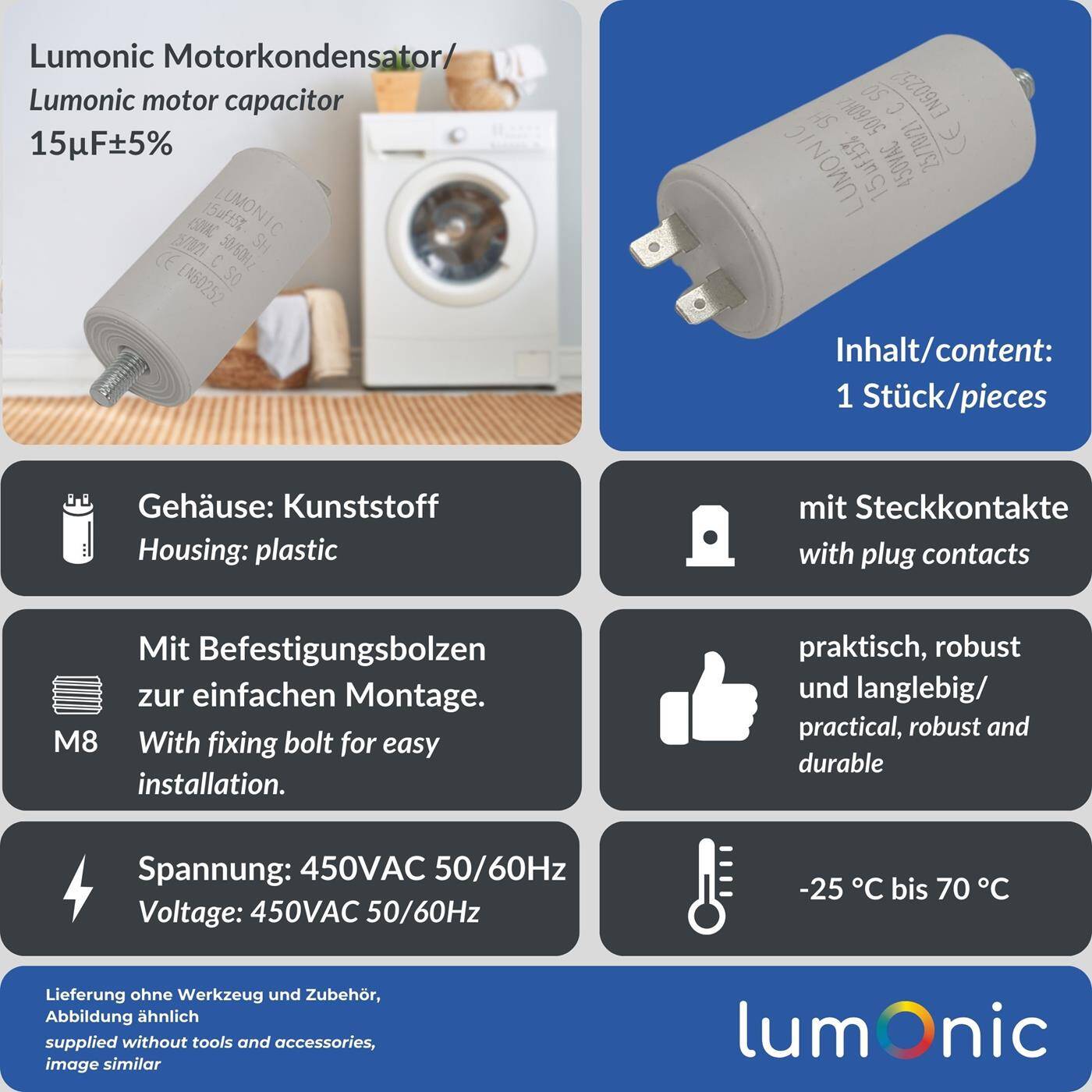

| ✔ HIGH PERFORMANCE: The motor capacitor has a capacitance of 15µF ±5% and is designed for voltages up to 450VAC (50/60Hz). Thanks to the wide temperature range of -25°C to 70°C, the capacitor can also be used in harsh environments. |
| ✔ DURABLE STRUCTURE: The induction-free winding structure made of a metallic polypropylene membrane has self-healing properties and ensures a long service life while taking up little space. |

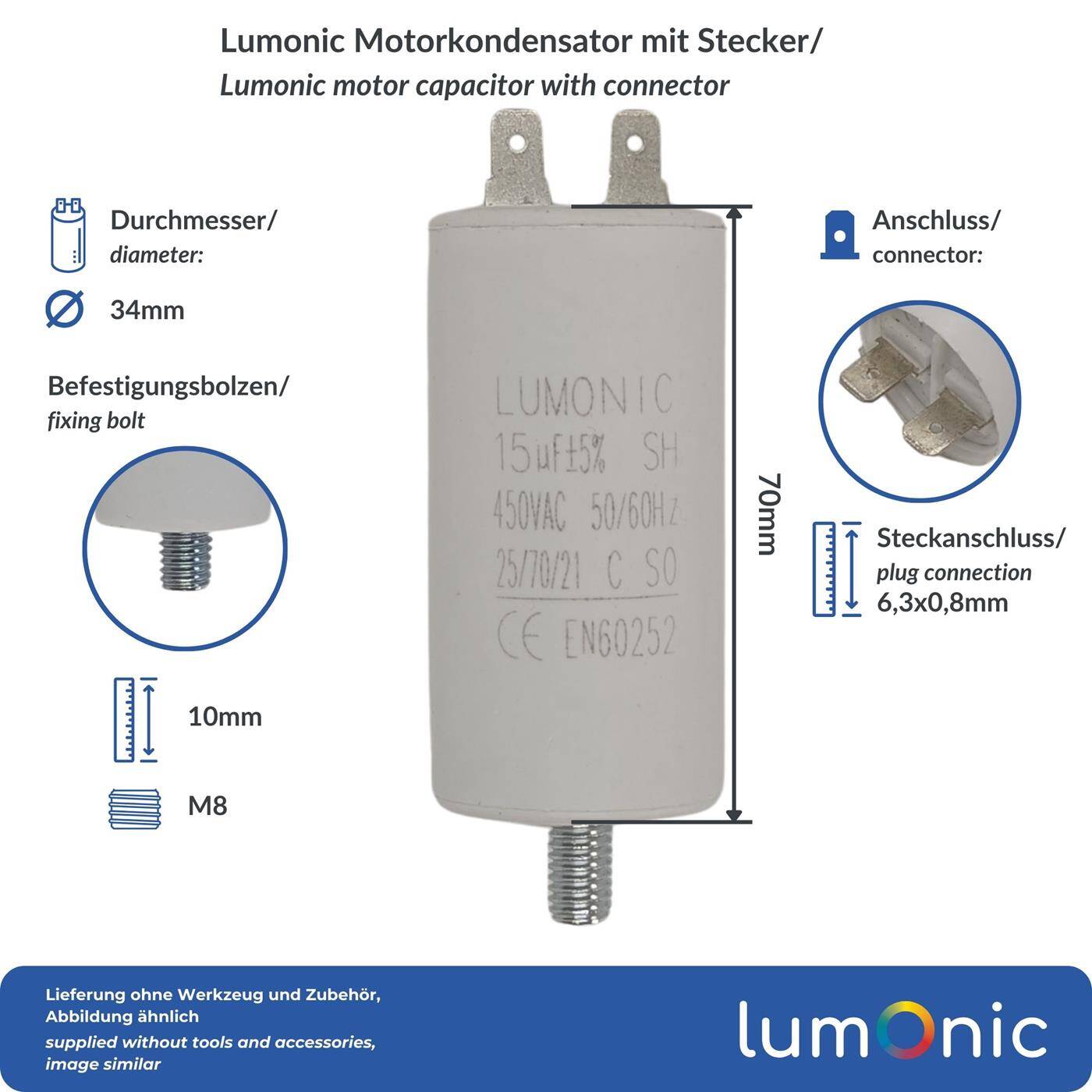

| ✔ COMPACT DIMENSIONS: The starting capacitor in a robust plastic housing measures 34x68mm. The plug connection on the top has the standard dimensions of 6.3x0.8mm and fits perfectly for most applications. |
| ✔ VERSATILE APPLICATION: Suitable for lawn mowers, pumps, compressors, washing machines, log splitters, circular saws, grinders, high-pressure cleaners |
Technical specifications
| Capacitor Type: | Motor Capacitor |
|---|---|
| Design Type: | Radial |
| Capacity: | 15µF |
| Voltage AC: | 450V |
| Tolerance: | ±5% |
| Temperature: | 70°C |
| Connection: | Plug 6,3x0,8mm |
| Height: | 70mm |
| Diameter: | 34mm |
| Casing: | Plasic Case |
| Bolt: | M8x10mm |
