Starting capacitor 65µF 450V with Cable 25cm 50x110mm 65uF Motor capacitor with plastic housing
Available, delivery time: 1-3 days
Article-No.:
IT-010337
Model:
LuMK-PC-0650-450-C
Shipping weight:
0.175 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€9.50*
|
| 6 - 10 |
€9.31*
|
| 11 - 20 |
€9.12*
|
| 21 - 50 |
€9.03*
|
| 51 - 100 |
€8.93*
|
| From 101 |
€8.84*
|
Product description
| ✔ SIMPLE INSTALLATION: The polarity-independent connection enables quick and error-free installation. The capacitor can be easily and securely fixed in your application using the M8x10 connection bolt on the underside. |

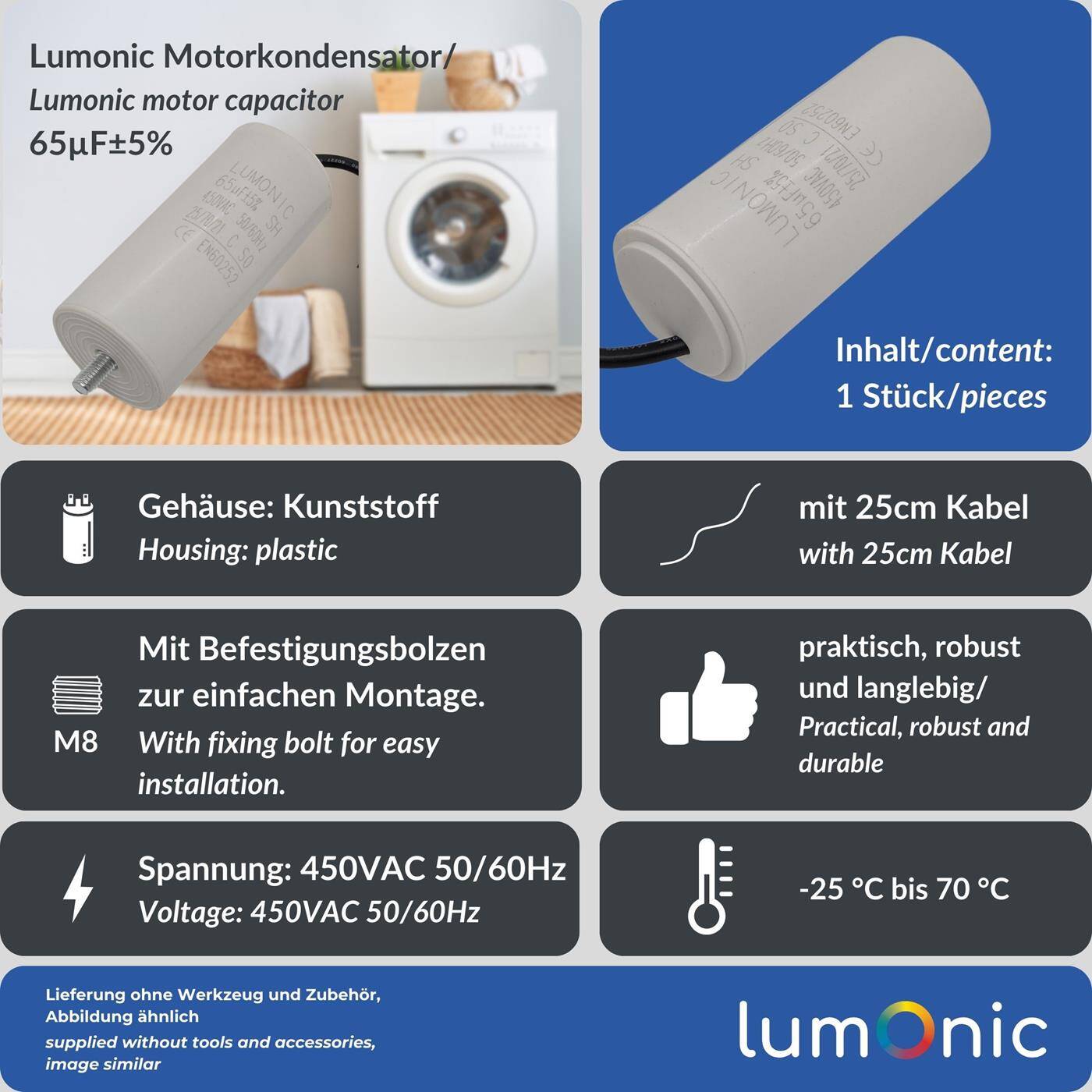

| ✔ HIGH PERFORMANCE: The motor capacitor has a capacitance of 65µF ±5% and is designed for voltages up to 450VAC (50/60Hz). Thanks to the wide temperature range of -25°C to 70°C, the capacitor can also be used in harsh environments. |
| ✔ DURABLE STRUCTURE: The induction-free winding structure made of a metallic polypropylene membrane has self-healing properties and ensures a long service life while taking up little space. |
| ✔ COMPACT DIMENSIONS: The starting capacitor in a robust plastic housing measures 50x100mm. The extra-long connection cable (2x0.5mm²) with a total length of 250mm is already stripped on the first 50mm and enables flexible installation. |
| ✔ VERSATILE APPLICATION: Suitable for lawn mowers, pumps, compressors, washing machines, log splitters, circular saws, grinders, high-pressure cleaners |
Technical specifications
| Capacitor Type: | Motor Capacitor |
|---|---|
| Design Type: | Radial |
| Capacity: | 65µF |
| Voltage AC: | 450V |
| Tolerance: | ±5% |
| Temperature: | 70°C |
| Connection: | Cable |
| Connection dimension: | 25cm |
| Height: | 110mm |
| Diameter: | 50mm |
| Casing: | Plasic Case |
| Bolt: | M8x10mm |
