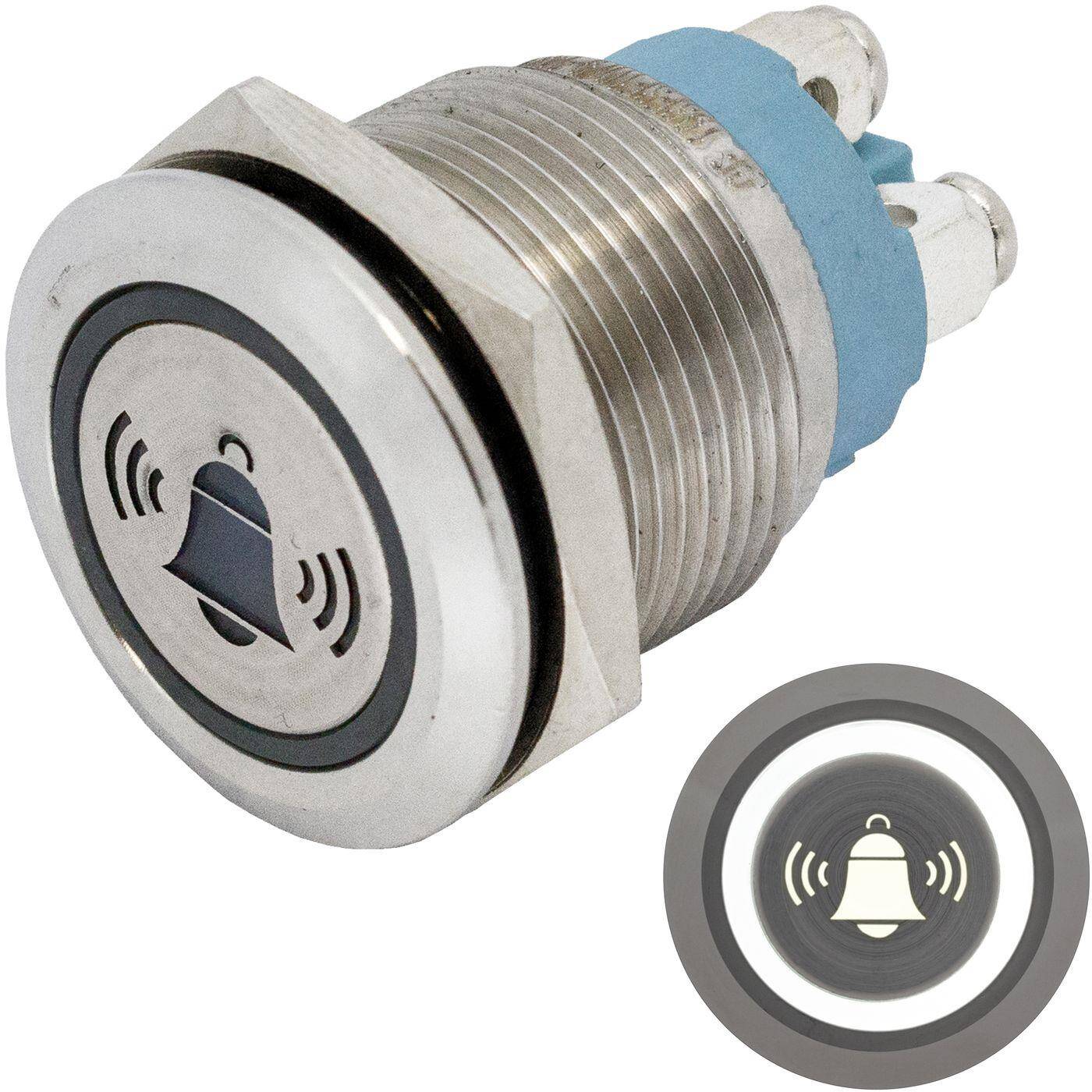

Stainless steel Push button Flat Ø19mm Bell LED Cold White IP65 Screw Connection 250V 3A Vandal-proof
Available, delivery time: 1-3 days
Article-No.:
IT-008414000058
Shipping weight:
0.017 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€6.00*
|
| 6 - 10 |
€5.88*
|
| 11 - 20 |
€5.76*
|
| 21 - 50 |
€5.70*
|
| 51 - 100 |
€5.64*
|
| From 101 |
€5.58*
|
Product description
| ✔ Hohe Flexibilität |
| ✔ Erfüllt: RoHS, Sony-SS-00259 |
| ✔ Min. Schrumpftemperatur: +70°C |
| ✔ Min. Temperatur zur vollständigen Schrumpfung: +100°C |
Technical specifications
| Switch Type: | Stainless steel Push button |
|---|---|
| Version: | NO contact |
| Voltage: | 250V |
| Current: | 3A |
| Head shape: | Flat |
| Colour: | Silver |
| Number of poles: | 1 |
| External dimensions: | Ø22x28mm |
| Installation dimension: | Ø19mm |
| Thread length: | 14mm |
| Material: | Stainless steel |

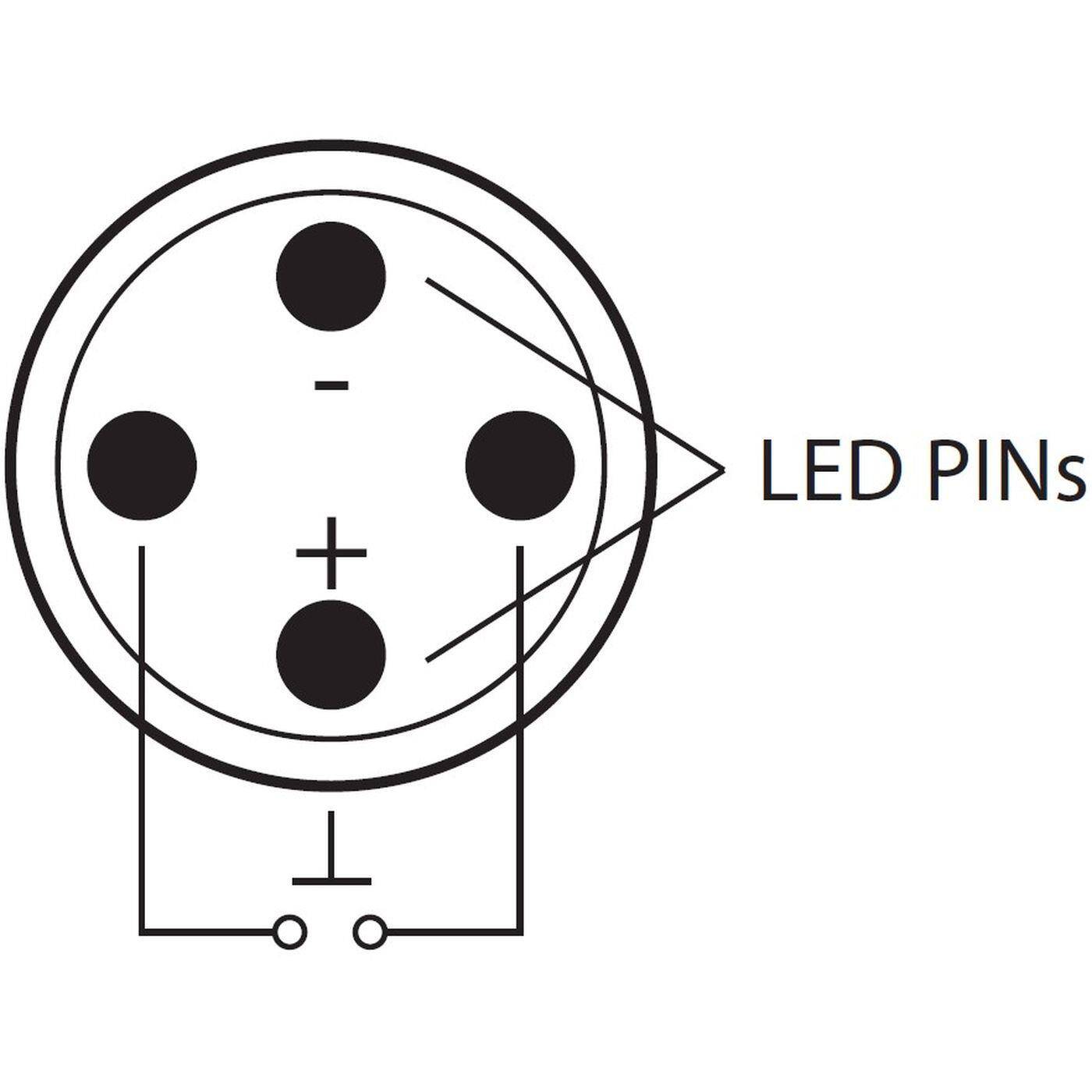

| LED Colour: | Cold White |
| LED Shape: | Bell |
| LED Voltage: | 9...24V AC/DC |

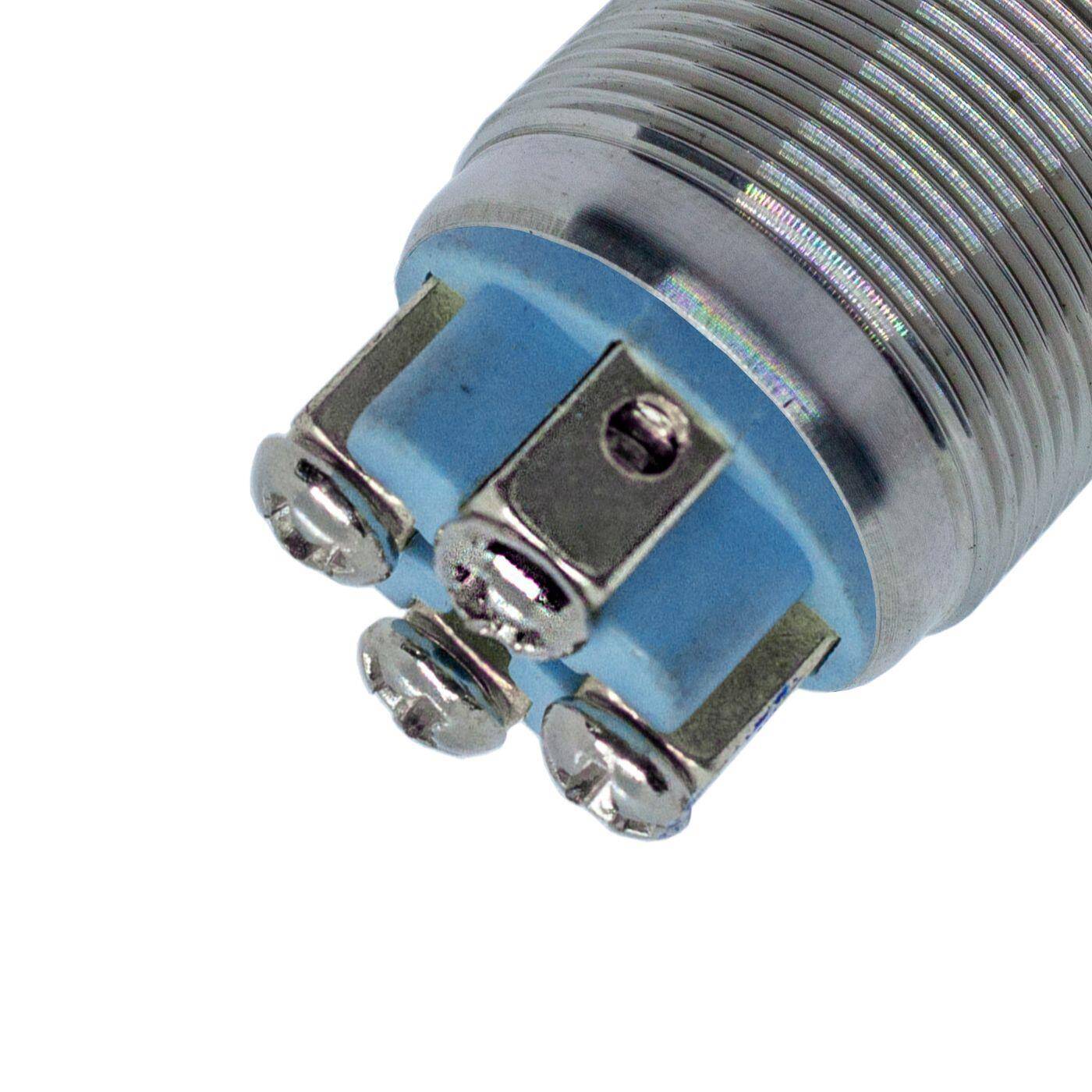

| Connection: | Screw Connection |
| Installation depth: | 27mm |
| Protection class: | IP65 |
| Operating temperature: | -25...+70°C |
| Special feature: | Vandal-proof |
