Stainless steel Pressure switch domed Ø16mm Ring LED Green IP65 2,8x0,5mm Pins 250V 3A Vandal-proof
Available, delivery time: 1-3 days
Article-No.:
IT-008372000061
Shipping weight:
0.013 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 10 |
€3.00*
|
| 11 - 20 |
€2.94*
|
| 21 - 50 |
€2.88*
|
| 51 - 100 |
€2.85*
|
| 101 - 200 |
€2.82*
|
| From 201 |
€2.79*
|
Product description
| Switch Type | Stainless steel Pressure switch |

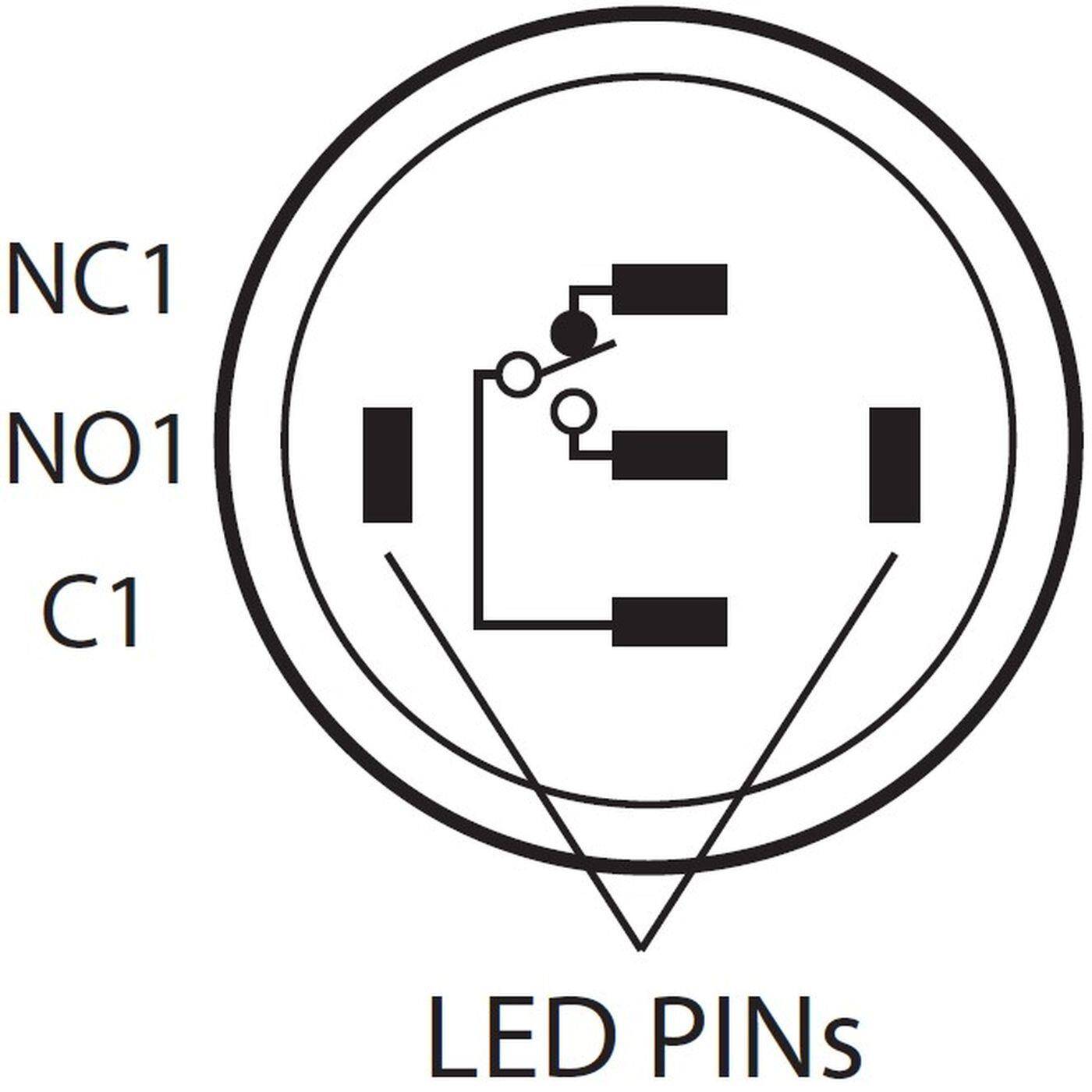

| Version | NC contact + NO contact -> Changeover contact |
| Voltage | 250V |
| Current | 3A |
| Head shape | domed |
| Colour | Silver |
| Number of poles | 1 |
| External dimensions | Ø18x28mm |
| Installation dimension | Ø16mm |
| Thread length | 15mm |
| Material | Stainless steel |
| LED Colour | Green |
| LED Shape | Ring |
| LED Voltage | 9...24V AC/DC |

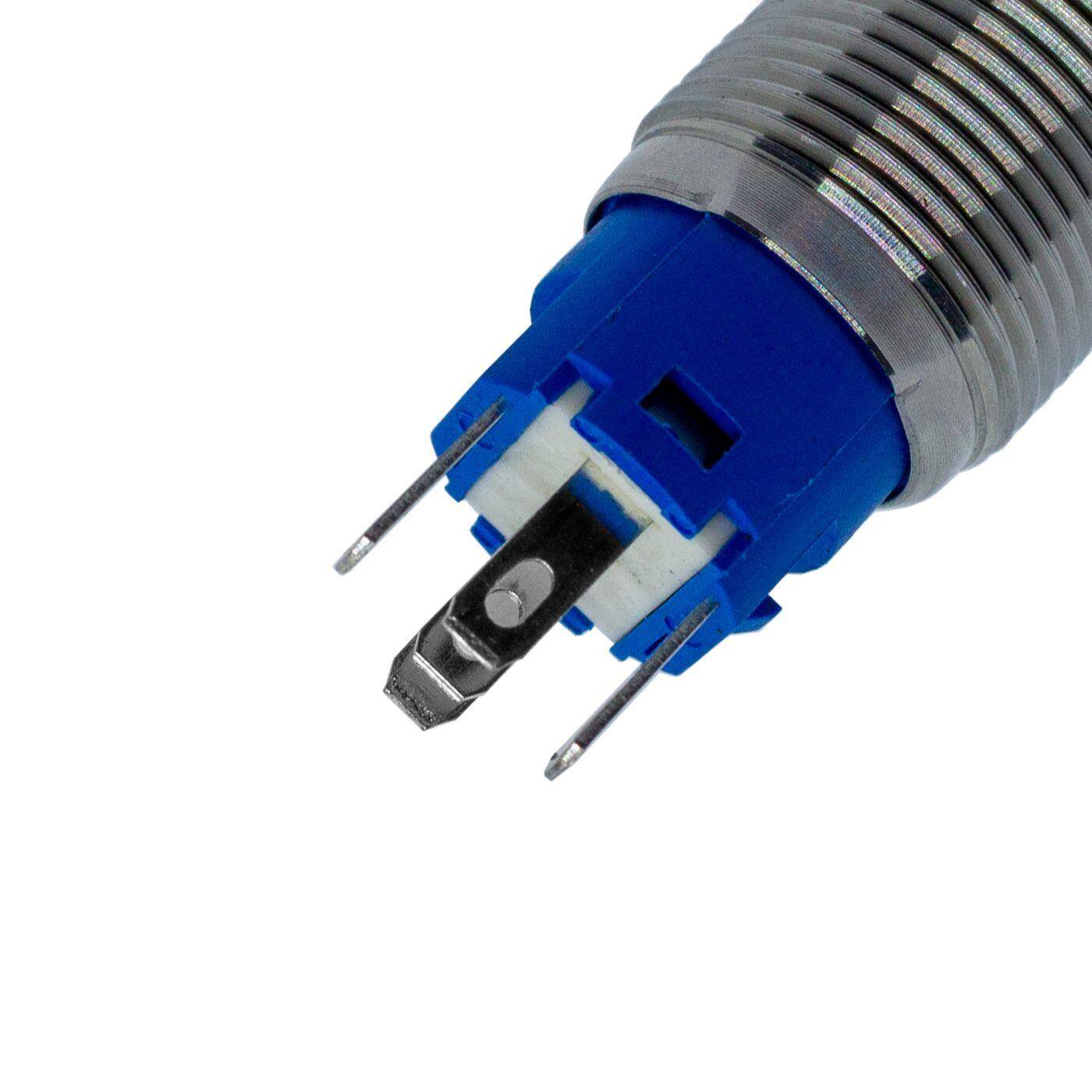

| Connection | 2,8x0,5mm Pins |
| Installation depth | 33mm |
| Protection class | IP65 |
| Operating temperature | -25...+70°C |
| Special feature | Vandal-proof |
Technical specifications
| Switch Type: | Stainless steel Pressure switch |
|---|---|
| Version: | Changeover contact |
| Voltage: | 250V |
| Current: | 3A |
| Head shape: | domed |
| Colour: | Silver |
| Number of poles: | 1 |
| External dimensions: | Ø18x28mm |
| Installation dimension: | Ø16mm |
| Thread length: | 15mm |
| Material: | Stainless steel |
| LED Colour: | Green |
| LED Shape: | Ring |
| LED Voltage: | 9...24V AC/DC |
| Connection: | 2,8x0,5mm Pins |
| Installation depth: | 33mm |
| Protection class: | IP65 |
| Operating temperature: | -25...+70°C |
| Special feature: | Vandal-proof |
