SDR-75-48 75W 48V 1,6A Din Rail power supply
slide 3 of 2
Available, delivery time: 1-3 days
Article-No.:
IT-007395
Model:
SDR-75-48
Shipping weight:
0.51 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ Overload protection by current limiting, switch-off after 3s |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ LED display for DC OK |
| ✔ Peak load function |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 1,6A |
| Power: | 75W |
| Input voltage (min...max): | 88...264VAC |
| Output voltage (min...max): | 48...55VDC |
| Efficiency: | 90% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

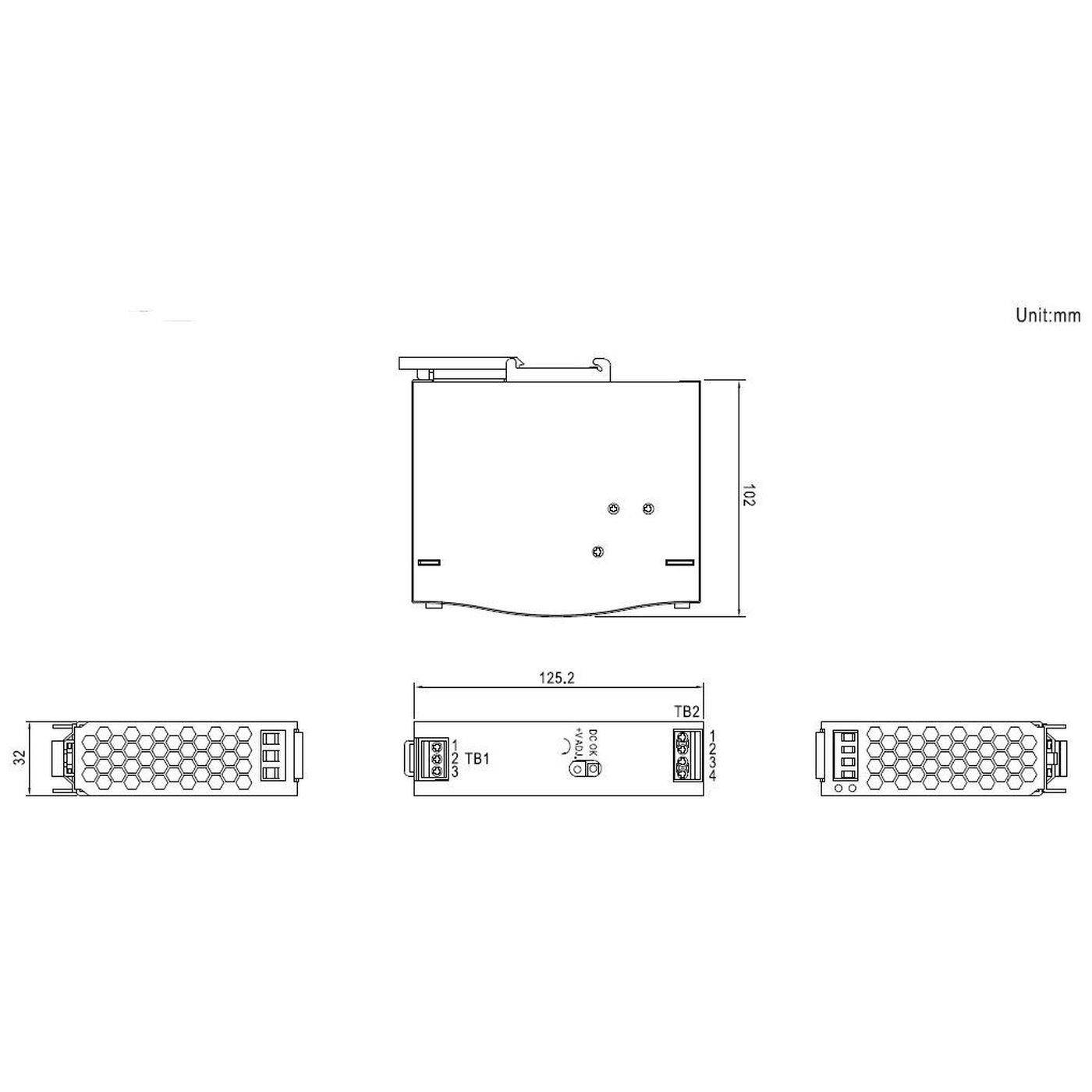

| Length: | 125,5mm |
| Width: | 32mm |
| Height: | 102mm |
