SDR-120-12 120W 12V 10A Din Rail power supply
Available, delivery time: 1-3 days
Article-No.:
IT-007396
Model:
SDR-120-12
Shipping weight:
0.67 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ Overload protection by current limiting, switch-off after 3s |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ LED display for DC OK |
| ✔ DC-OK relay output |
| ✔ Peak load function |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 10A |
| Power: | 120W |
| Input voltage (min...max): | 88...264VAC |
| Output voltage (min...max): | 12...14VDC |
| Efficiency: | 89% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

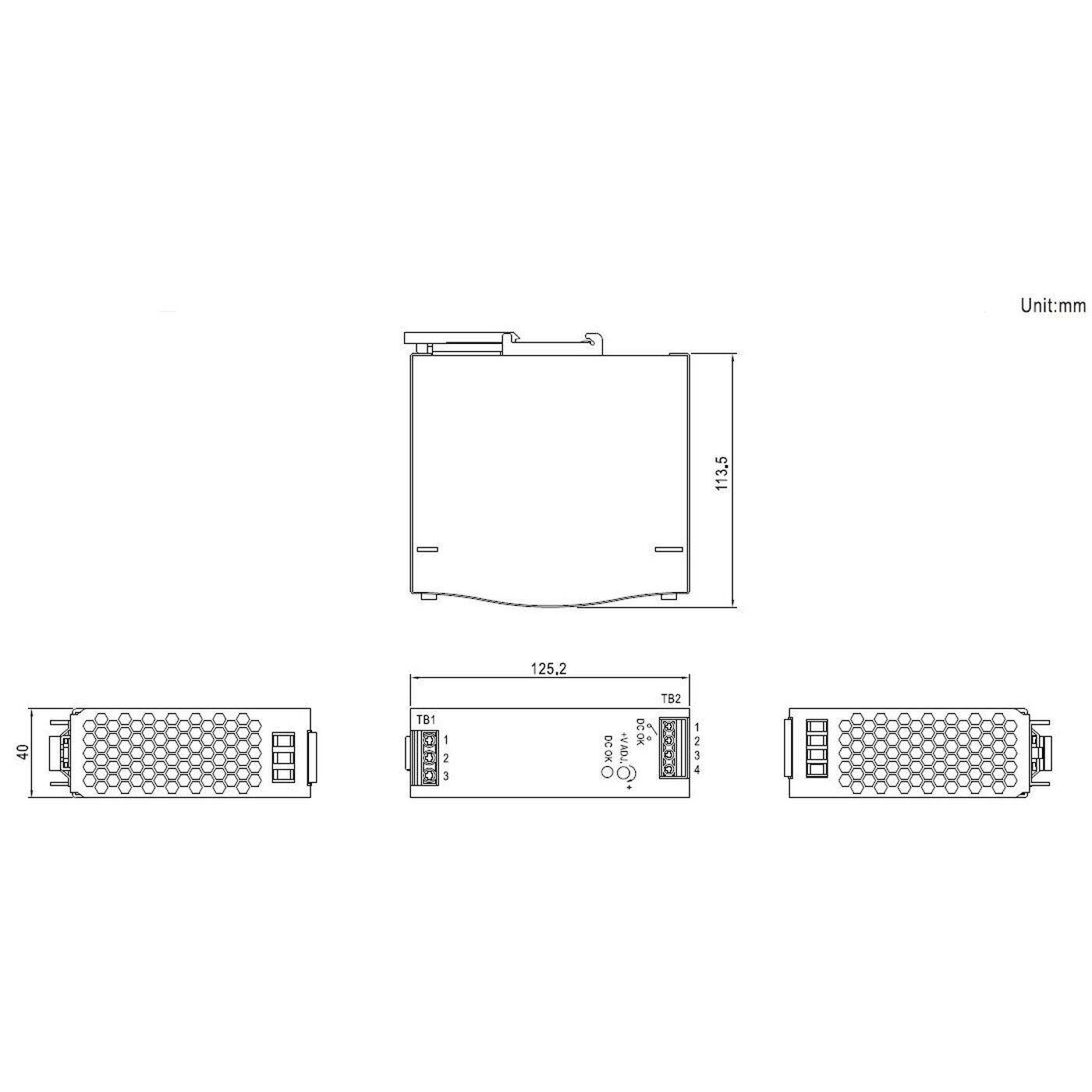

| Length: | 125,5mm |
| Width: | 40mm |
| Height: | 113,5mm |
