RSP-500-15 500W 15V 33,4A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005560
Model:
RSP-500-15
Shipping weight:
1.3 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Low overall height |
| ✔ Switching output voltage on and off via remote signal |
| ✔ Remote sense function |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 15V |
| Output current: | 33,4A |
| Power: | 500W |
| Input voltage (min...max): | 85...264VAC |
| Output voltage (min...max): | 13,5...18VDC |
| Efficiency: | 88% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

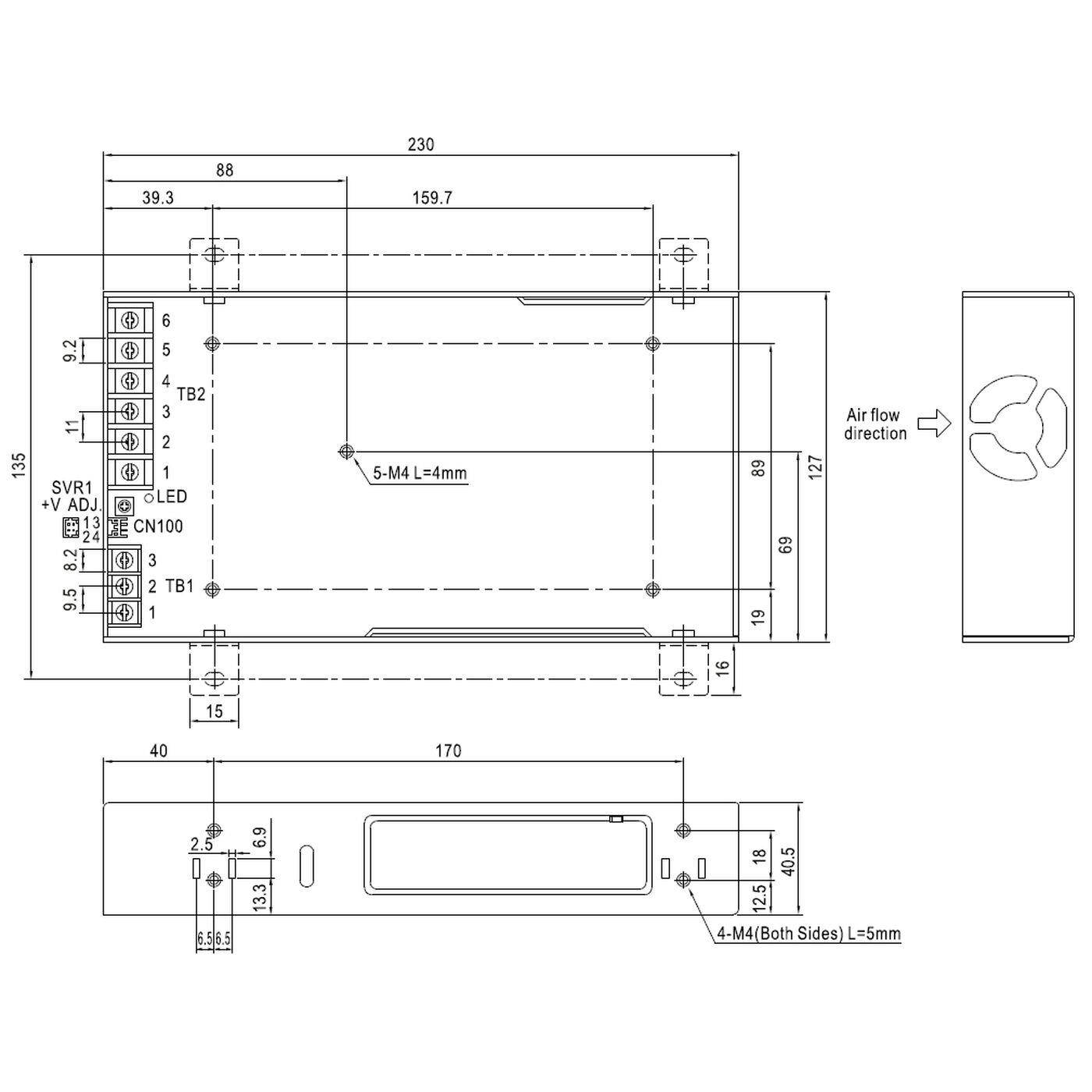

| Length: | 230mm |
| Width: | 127mm |
| Height: | 40,5mm |
