RSP-3000-24 3000W 24V 125A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005588
Model:
RSP-3000-24
Shipping weight:
4 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€520.00*
|
| 3 - 5 |
€514.80*
|
| 6 - 10 |
€509.60*
|
| 11 - 20 |
€504.40*
|
| 21 - 50 |
€504.40*
|
| From 51 |
€504.40*
|
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Low idle power |
| ✔ Parallel function |
| ✔ active AC input current limiting |
| ✔ active current distribution up to 6000W (1+1 power supplies) |
| ✔ Switching output voltage on and off via remote signal |
| ✔ Power-fail signal |
| ✔ Sensor connection for correct voltage at the load |
| ✔ internal auxiliary voltage 12V/0.1A |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 24V |
| Output current: | 125A |
| Power: | 3000W |
| Input voltage (min...max): | 180...264VAC |
| Output voltage (min...max): | 22...28VDC |
| Efficiency: | 90% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

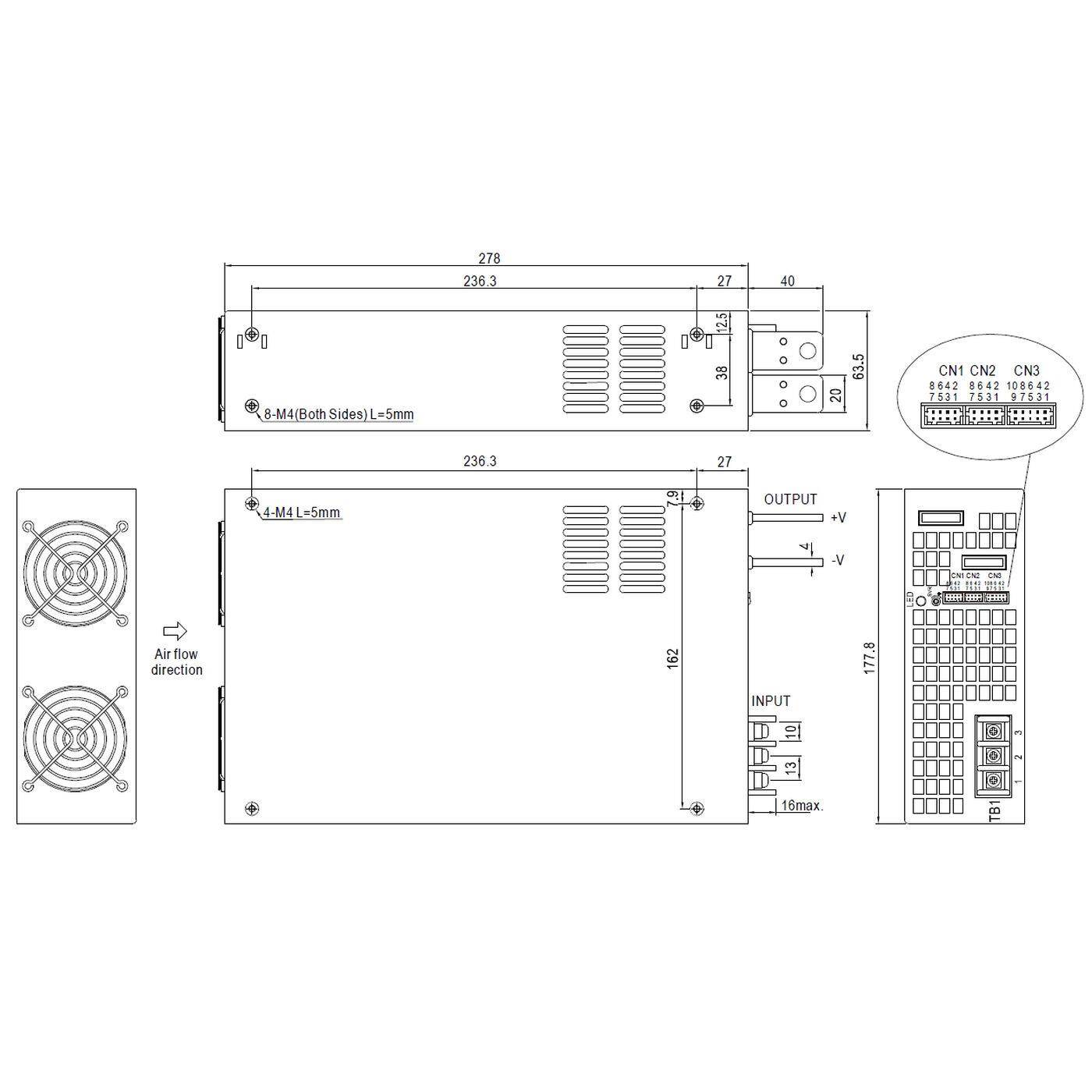

| Length: | 278mm |
| Width: | 177,8mm |
| Height: | 63,5mm |
