RS-50-5 50W 5V 10A Industrial power supply

Quantity	Unit price
1 - 5	€14.00*
6 - 10	€13.86*
11 - 20	€13.72*
21 - 50	€13.58*
51 - 100	€13.58*
From 101	€13.58*

Quantity

Unit price

1 - 5

€14.00*

6 - 10

€13.86*

11 - 20

€13.72*

21 - 50

€13.58*

51 - 100

€13.58*

From 101

€13.58*

Product description

✔ Closed design (case), Screw terminals

✔ Universal input

✔ overload protection by current limiting, auto recovery

✔ protected against short circuit, overload, overvoltage

✔ Long life 105°C electrolytic capacitors

The RS-50-5 is a high-quality switching power supply with a power output of 50W and an output voltage of 5V. It is designed for industrial use and comes with a range of features that make it a reliable and efficient choice for various applications. One of the key features of the RS-50-5 is its screw terminal connectors for both the input and output connections. This allows for easy and secure wiring, ensuring a stable and reliable connection. The output voltage range of 4.75V to 5.5VDC and the output current of 10A make it suitable for a wide range of devices and equipment. The RS-50-5 is a compact power supply with dimensions of 97mm in width, 36mm in height, and 99mm in length. This makes it easy to install and integrate into different systems and applications. Its universal input voltage of 115V / 230V allows for worldwide use, making it a versatile choice for international projects. With a stabilization feature that ensures constant voltage output, the RS-50-5 provides a reliable and stable power supply for your devices. It also features an AC/DC converter topology, which ensures efficient power conversion and minimizes energy loss. With an efficiency rating of 83%, it is an energy-efficient choice that helps reduce power consumption and operating costs. The RS-50-5 comes with several built-in protection features, including overload protection through current limiting and auto-recovery. It is also protected against short circuits, overloads, and overvoltages, ensuring the safety of your devices and equipment. Additionally, the power supply is equipped with long-life 105°C electrolytic capacitors, which ensure durability and reliability even in demanding environments. In summary, the RS-50-5 is a high-quality and versatile switching power supply that offers reliable and efficient power output. With its screw terminal connectors, universal input voltage, stabilization feature, and built-in protection mechanisms, it is an excellent choice for various industrial applications.

Technical specifications

Power supply type:	Industrial power supply
Stabilisation:	Constant voltage
Topology:	AC/DC Converter
Input voltage:	115V / 230V (Universal)
Output voltage:	5V
Output current:	10A
Power:	50W
Input voltage (min...max):	88...264VAC
Output voltage (min...max):	4,75...5,5VDC
Efficiency:	83%
Input connection:	Screw terminals
Connection Output:	Screw terminals

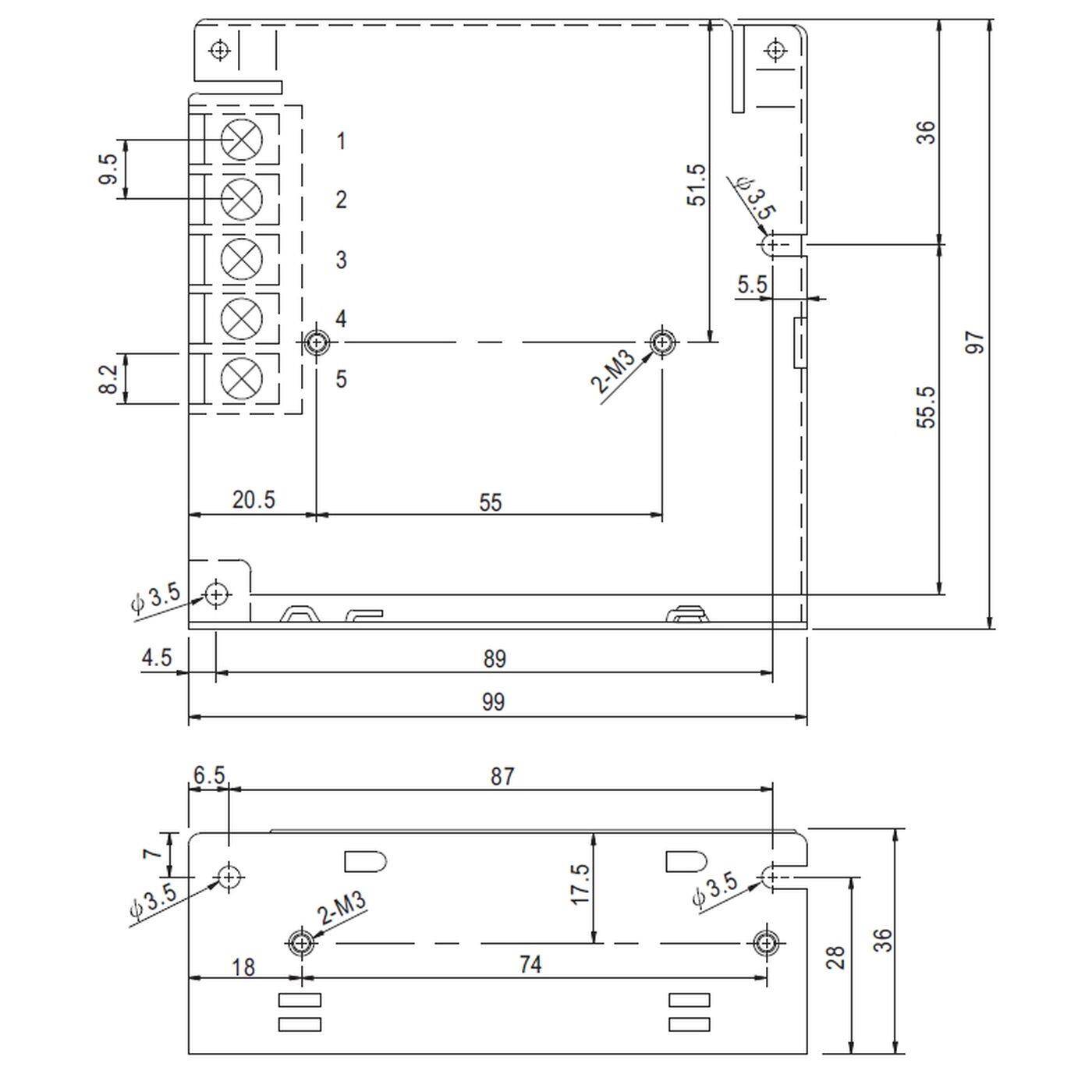

Length:	99mm
Width:	97mm
Height:	36mm
