RS-25-5 25W 5V 5A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005281
Model:
RS-25-5
Shipping weight:
0.2 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€10.40*
|
| 6 - 10 |
€10.19*
|
| 11 - 20 |
€9.98*
|
| 21 - 50 |
€9.88*
|
| 51 - 100 |
€9.78*
|
| From 101 |
€9.67*
|
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ Long life 105°C electrolytic capacitors |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 5V |
| Output current: | 5A |
| Power: | 25W |
| Input voltage (min...max): | 88...264VAC |
| Output voltage (min...max): | 4,75...5,5VDC |
| Efficiency: | 79% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

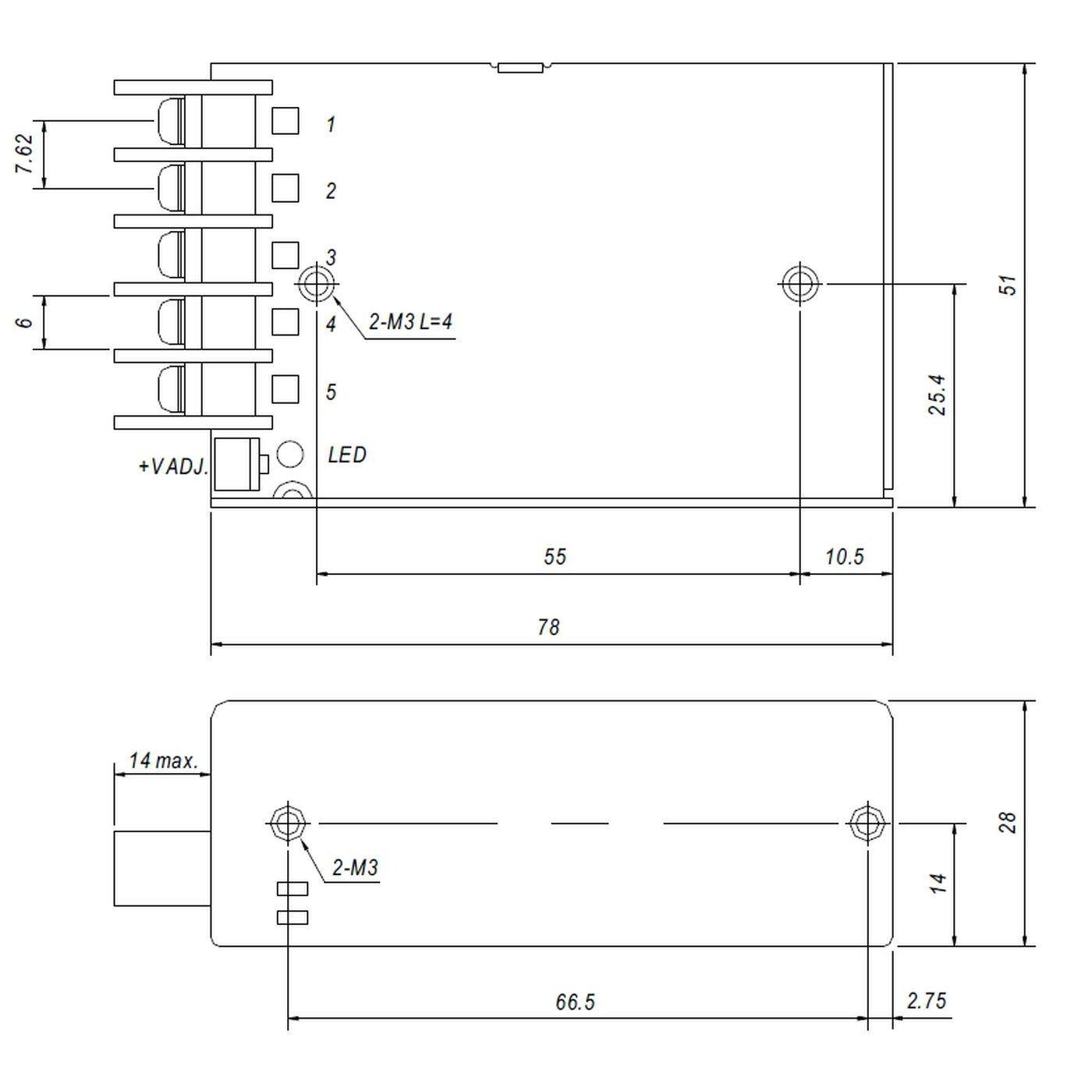

| Length: | 78mm |
| Width: | 51mm |
| Height: | 28mm |
