RS-15-24 15W 24V 0,625A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005278
Model:
RS-15-24
Shipping weight:
0.13 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€8.00*
|
| 6 - 10 |
€7.84*
|
| 11 - 20 |
€7.68*
|
| 21 - 50 |
€7.60*
|
| 51 - 100 |
€7.52*
|
| From 101 |
€7.44*
|
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ Long life 105°C electrolytic capacitors |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 0,625A |
| Power: | 15W |
| Input voltage (min...max): | 85...264VAC |
| Output voltage (min...max): | 22...27,6VDC |
| Efficiency: | 82% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

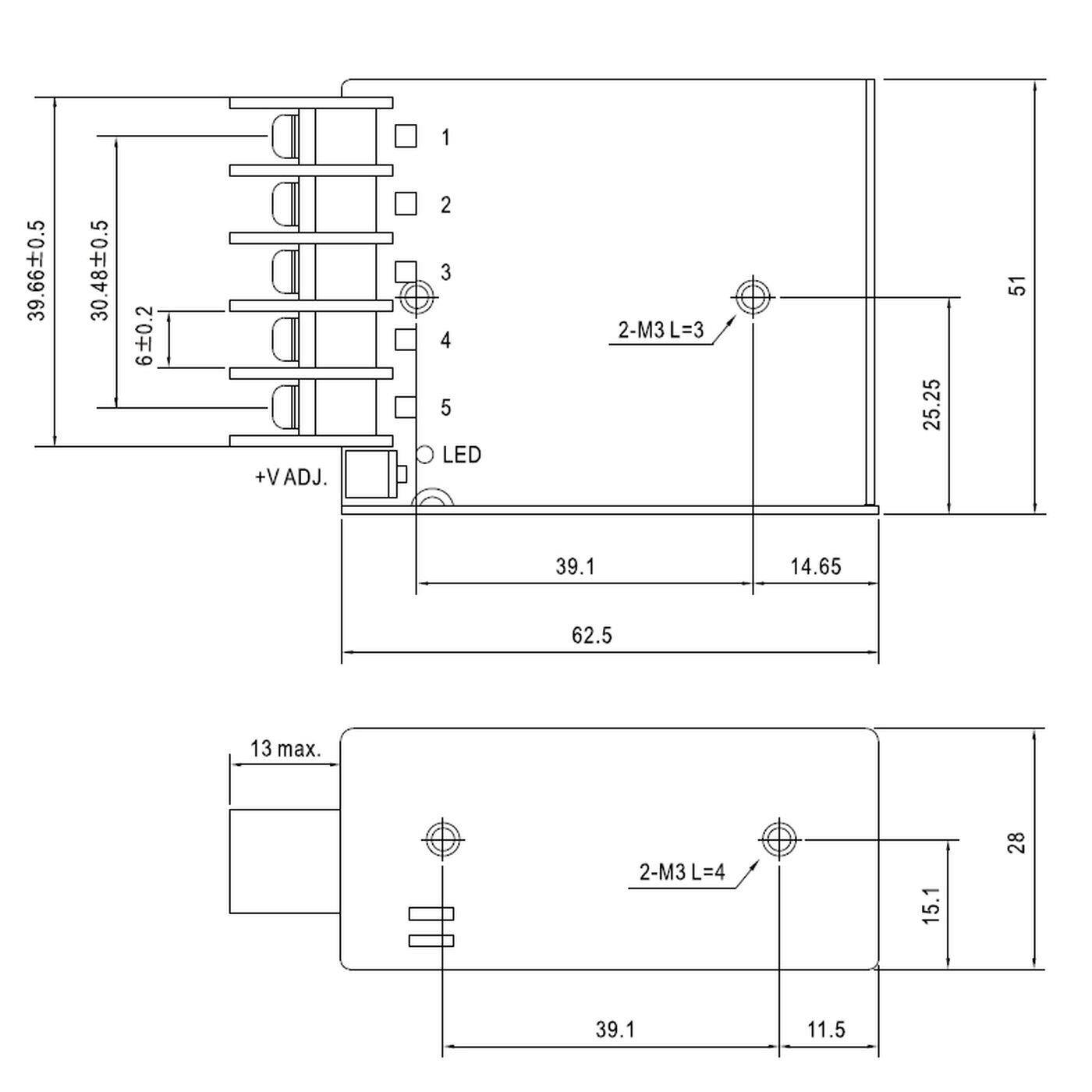

| Length: | 62,5mm |
| Width: | 51mm |
| Height: | 28mm |
