PWM-120-12DA2 120W 12V 10A LED power supply Transformer Driver IP65 Dimmable DALI2 PWM
Available, delivery time: 1-3 days
Article-No.:
IT-009500
Model:
PWM-120-12DA2
Shipping weight:
0.97 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€55.00*
|
| 6 - 10 |
€53.90*
|
| 11 - 20 |
€52.80*
|
| 21 - 50 |
€52.25*
|
| 51 - 100 |
€51.70*
|
| From 101 |
€51.15*
|
Product description
| ✔ Independent operating device |
| ✔ Universal input |
| ✔ Plastic housing |
| ✔ Protection class II |
| ✔ Overload protection by current limitation (hiccup), auto recovery |
| ✔ protected against short circuit, overload, overvoltage, overtemperature |
| ✔ built-in PFC circuit |
| ✔ for LED and lighting applications |
| ✔ PWM output voltage |
| ✔ Safety standards EN61347-1, EN61367-2-13 |
| ✔ EMC standards: EN55015, EN61000-3-2 Class C |
| ✔ 5 years manufacturer warranty |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 10A |
| Power: | 120W |
| Input voltage (min...max): | 90...305VAC |
| Efficiency: | 88,5% |
| Dimmable: | DALI2 |
| Protection class: | IP65 |
| Input connection: | Cable |
| Connection Output: | Cable |

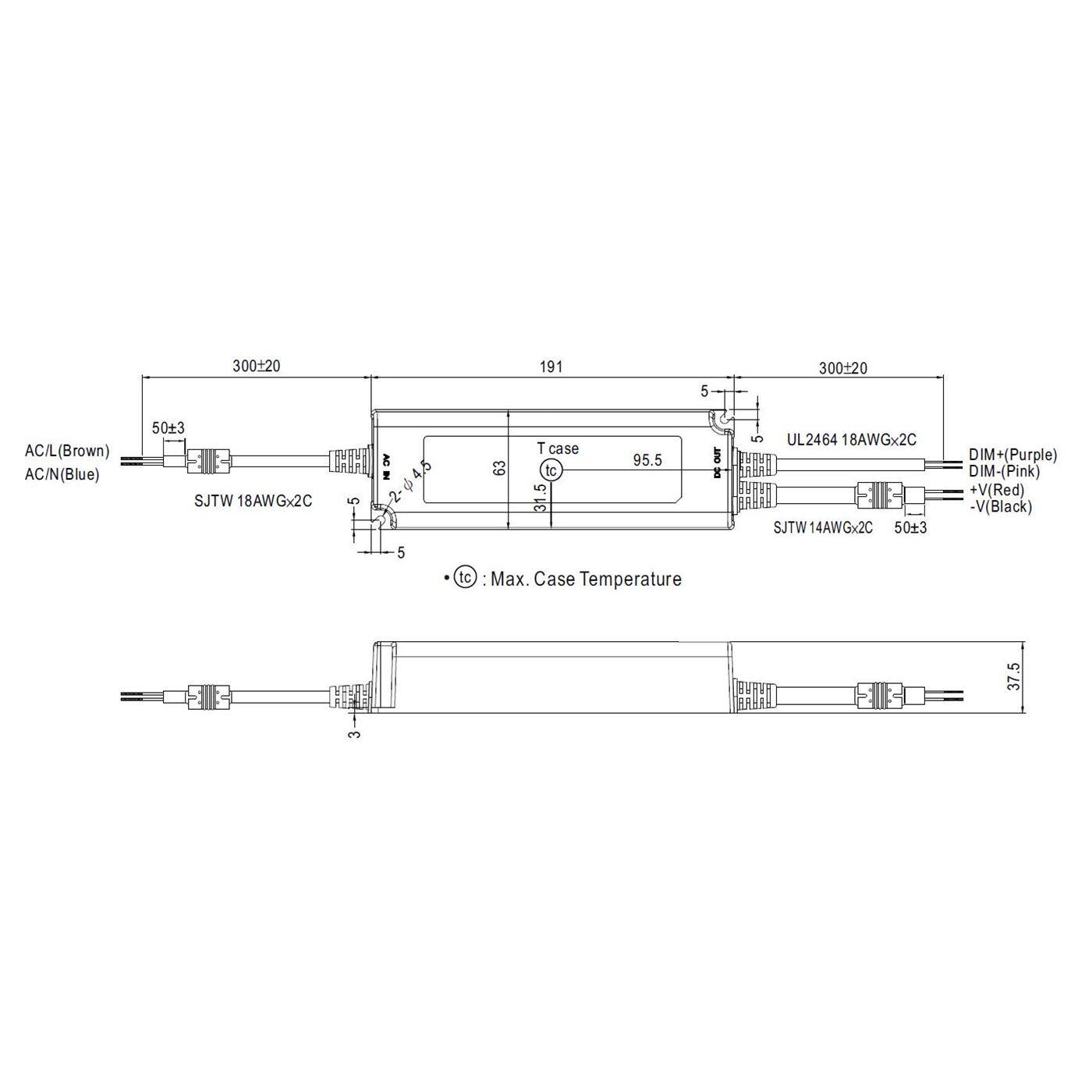

| Length: | 191mm |
| Width: | 63mm |
| Height: | 37,5mm |
