Proximity switch Inductive 30mm M30 PNP NC contact 6...36V DC IP67 Sensor Brass nickel-plated -30...+65°C
Available, delivery time: 1-3 days
Article-No.:
IT-008253
Shipping weight:
0.151 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€6.40*
|
| 6 - 10 |
€6.27*
|
| 11 - 20 |
€6.14*
|
| 21 - 50 |
€6.08*
|
| 51 - 100 |
€6.02*
|
| From 101 |
€5.95*
|
Product description
| Diameter | 30mm M30 |
| Sensor technology | Inductive |
| Polarity | PNP |
| Switching contact | NC contact |
| Voltage | 6...36V DC |
| Total length | 70mm |

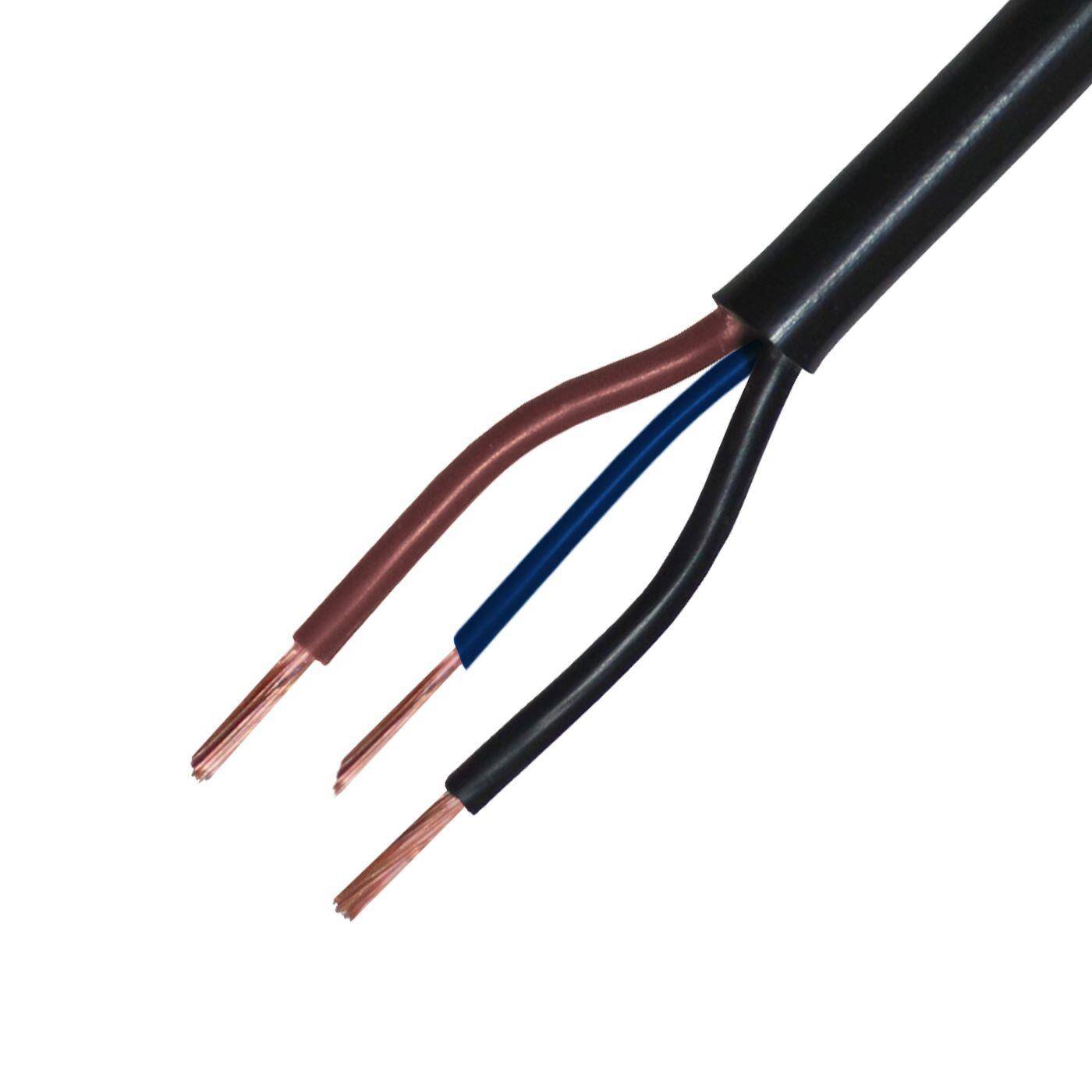

| Connection | Cable 120cm (3 wire) |
| Detection range | < 15mm |
| Switching current | 200mA |
| Insulation resistance | 50 MOhm |
| Protection class | IP67 |
| Casing Material | Brass nickel-plated |
| Temperature range | -30...+65°C |
Technical specifications
| Sensor technology: | Inductive |
|---|---|
| Polarity: | PNP |
| Switching contact: | NC contact |
| Voltage: | 6...36V DC |
| Switching current: | 200mA |
| Insulation resistance: | 50 MOhm |
| Detection range: | < 15mm |
| Temperature range: | -30...+65°C |
| Protection class: | IP67 |
| Casing Material: | Brass nickel-plated |
| Connection: | Cable 120cm (3 wire) |
| Diameter: | 30mm M30 |
| Total length: | 70mm |
