Print Relay 12V Song Chuan 842-1C-S 12VDC 12VDC 3A 125V Changeover contact
Available, delivery time: 1-3 days
Article-No.:
IT-007063
Model:
842-1C-S 12VDC
Shipping weight:
0.01 kg
Shipping Zone:
30
ROHS:
Ja
Datecode:
2012
| Quantity | Unit price |
|---|---|
| 1 - 20 |
€1.50*
|
| 21 - 50 |
€1.47*
|
| 51 - 100 |
€1.44*
|
| 101 - 200 |
€1.41*
|
| 201 - 500 |
€1.38*
|
| From 501 |
€1.35*
|
Product description
| ✔ Coil tension: 12VDC |
| ✔ Configuration: 1x Changeover contact |
| ✔ Load: 3A @ 125VAC |
| ✔ Contact resistance: 100mOhm |

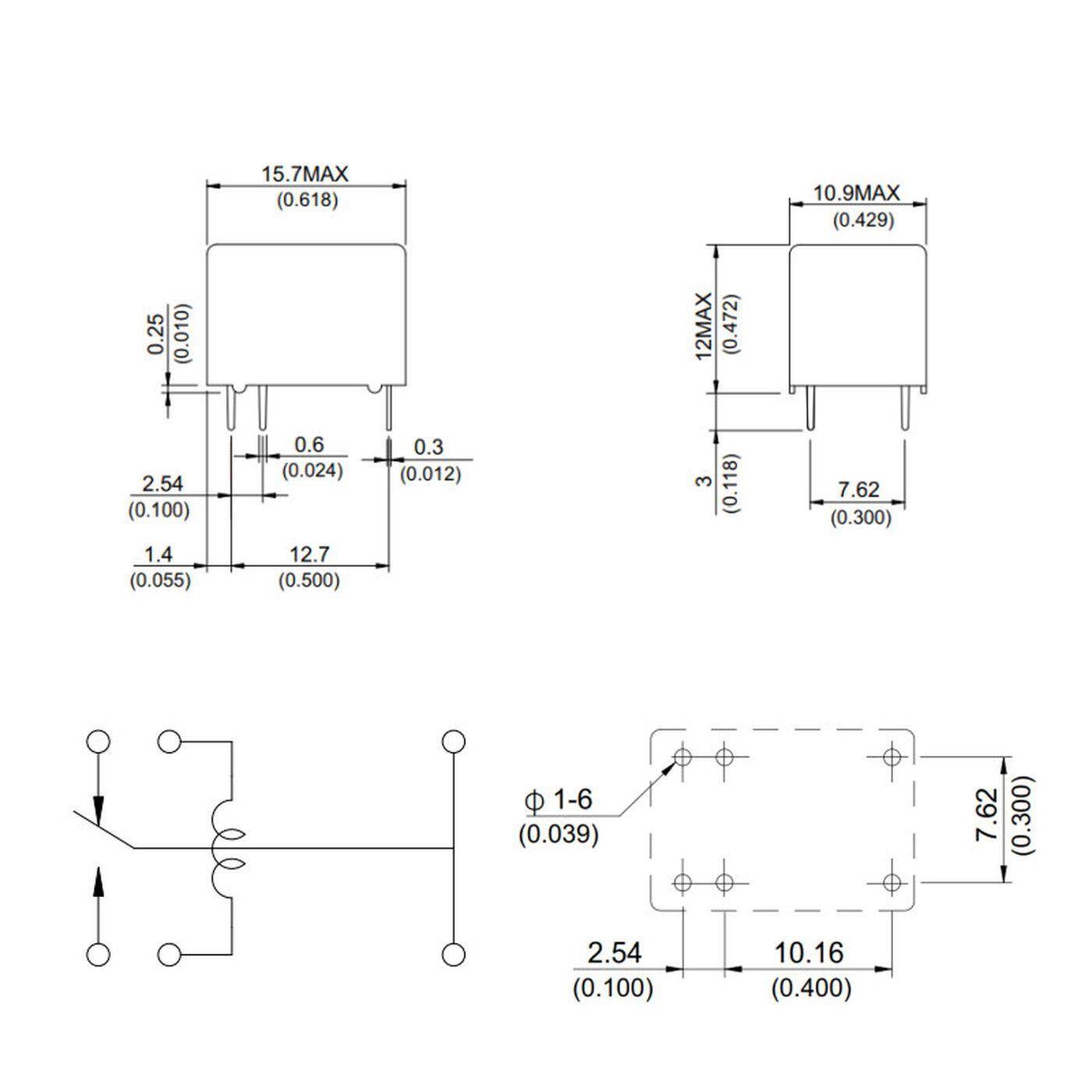

| ✔ External dimensions: 15,7x10,9x12mm |
| ✔ Contact material: AgNi |
| ✔ respectively: -40...+85°C |
| ✔ Mechanical durability: 10Mio. Zyklen |
| ✔ Electrical life at nominal load: 100000 Zyklen |
| ✔ Operating time: 10ms |
| ✔ Release time: 5ms |
