NSP-3200-48 3216W 48V 67A Industrial power supply
No longer available
Article-No.:
IT-009511
Model:
NSP-3200-48
Shipping weight:
2.24 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€550.00*
|
| 3 - 5 |
€544.50*
|
| 6 - 10 |
€539.00*
|
| 11 - 20 |
€533.50*
|
| 21 - 50 |
€533.50*
|
| From 51 |
€533.50*
|
Product description
| ✔ universal AC input |
| ✔ built-in active PFC function |
| ✔ built-in ON/OFF remote control, remote sense, DC/OK signal, auxiliary power supply |
| ✔ Output voltage programmable |
| ✔ high efficiency of up to 94.5 |
| ✔ Protection functions: Short circuit / overload / overvoltage / overtemperature |
| ✔ 5 years warranty |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 67A |
| Power: | 3216W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 47,5…58,8VDC |
| Efficiency: | 94,5% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

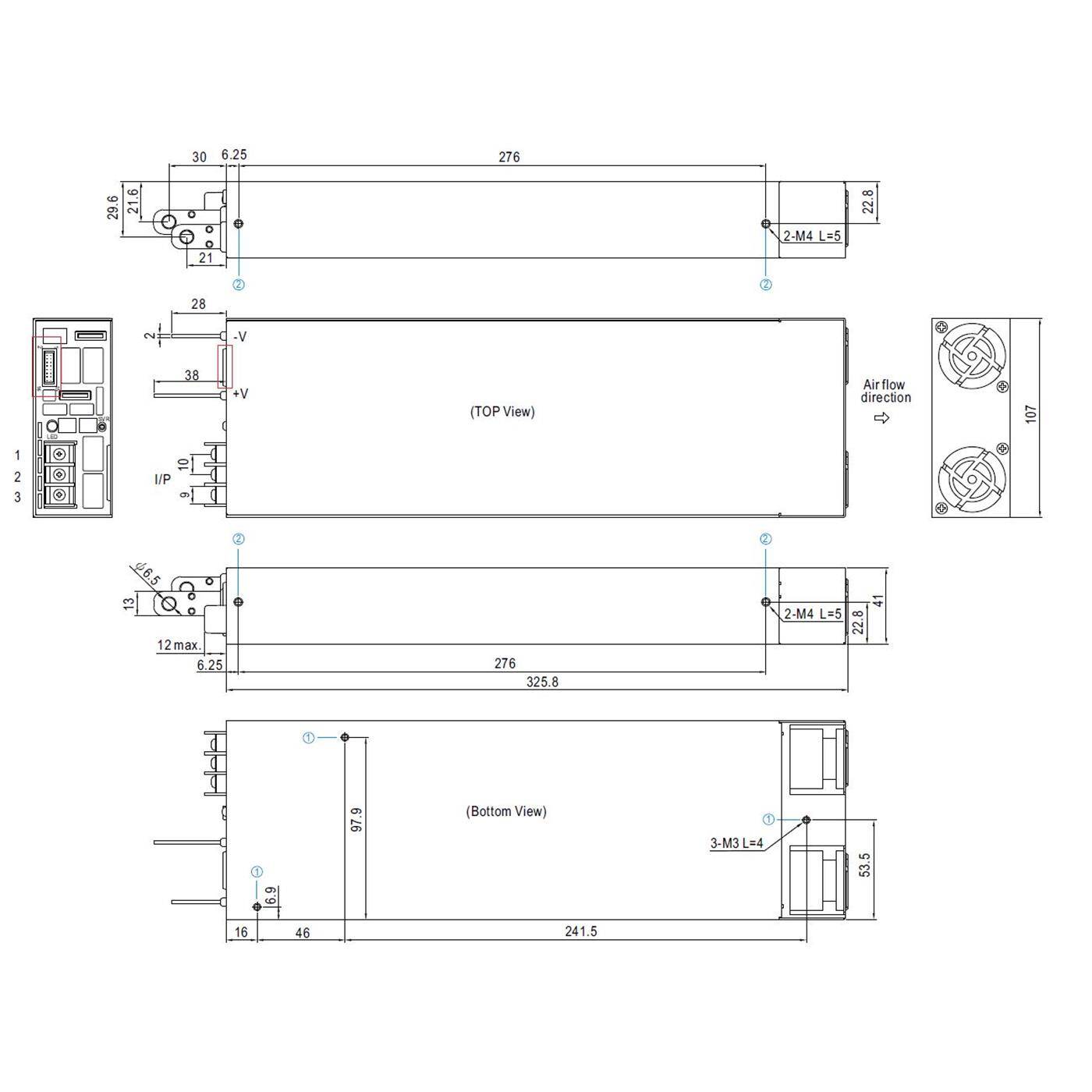

| Length: | 325,8mm |
| Width: | 107mm |
| Height: | 41mm |
