NSP-1600-12 1500W 12V 125A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-009506
Model:
NSP-1600-12
Shipping weight:
1.8 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€370.00*
|
| 3 - 5 |
€366.30*
|
| 6 - 10 |
€362.60*
|
| 11 - 20 |
€358.90*
|
| 21 - 50 |
€358.90*
|
| From 51 |
€358.90*
|
Product description
| ✔ universal AC input |
| ✔ built-in active PFC function |
| ✔ built-in ON/OFF remote control, remote sense, DC/OK signal, auxiliary power supply |
| ✔ Output voltage programmable |
| ✔ high efficiency of up to 92.5 |
| ✔ Protection functions: Short circuit / overload / overvoltage / overtemperature |
| ✔ 5 years warranty |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 125A |
| Power: | 1500W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 11,5…15VDC |
| Efficiency: | 89% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

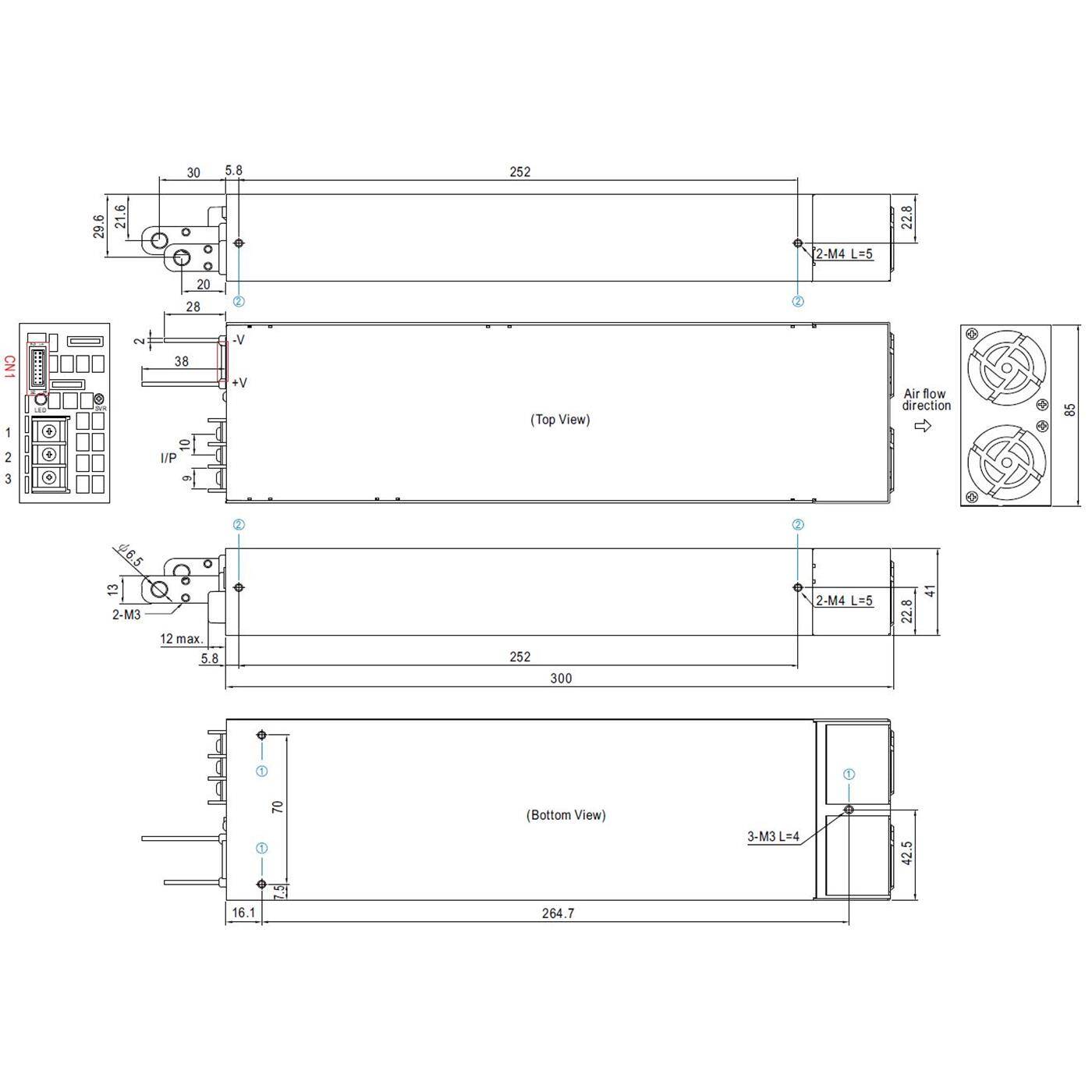

| Length: | 300mm |
| Width: | 85mm |
| Height: | 41mm |
