NDR-240-48 240W 48V 5A Din Rail power supply
Available, delivery time: 1-3 days
Article-No.:
IT-006399
Model:
NDR-240-48
Shipping weight:
1 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€55.00*
|
| 6 - 10 |
€53.90*
|
| 11 - 20 |
€52.80*
|
| 21 - 50 |
€52.25*
|
| 51 - 100 |
€51.70*
|
| From 101 |
€51.15*
|
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ LED display for DC OK |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 5A |
| Power: | 240W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 48...55VDC |
| Efficiency: | 90% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

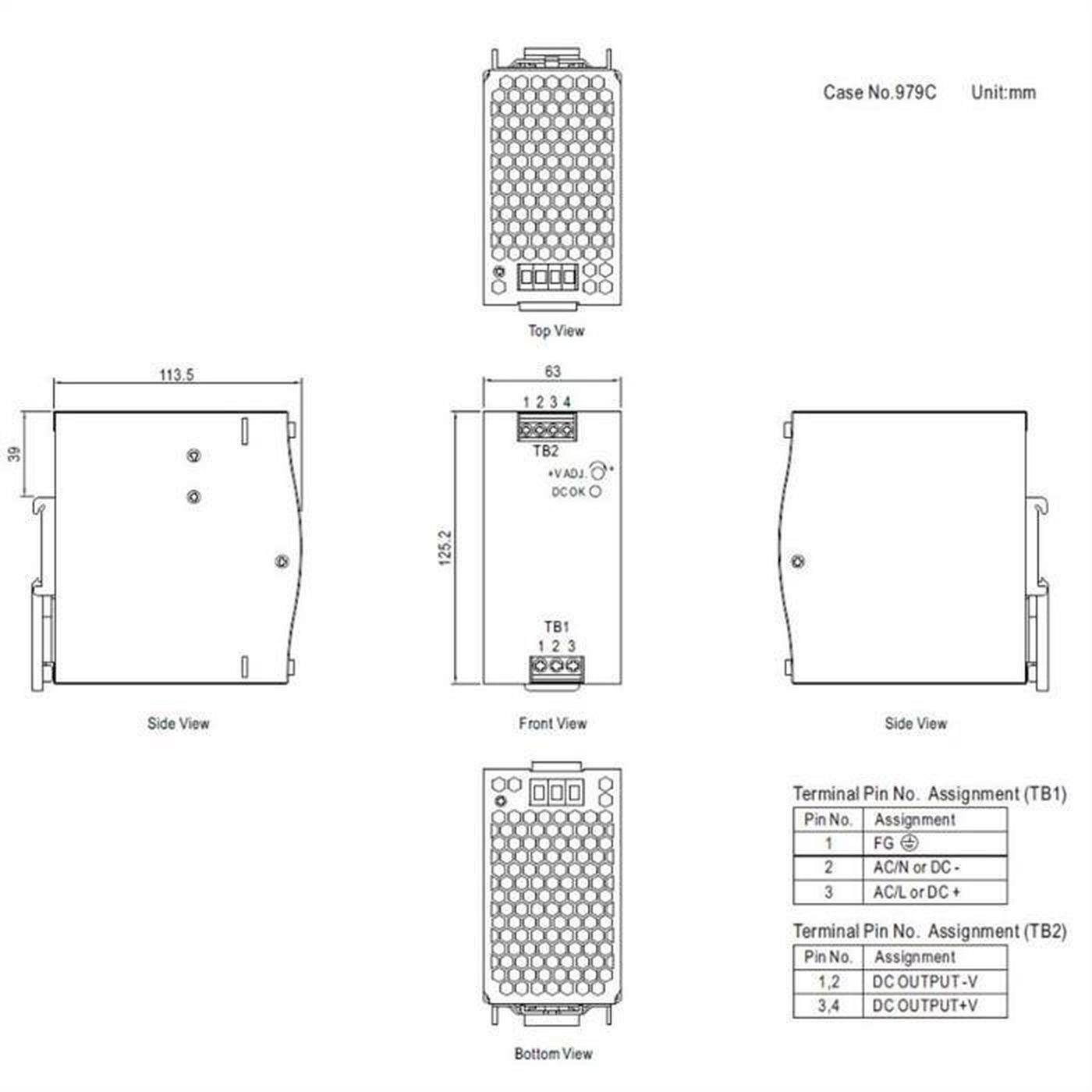

| Length: | 125,5mm |
| Width: | 63mm |
| Height: | 113,5mm |
