MEAN WELL RSP-750-48 750W 48V 15,7A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005569
Model:
RSP-750-48
Shipping weight:
1.7 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
Regular price:
€145.00
(€0.00* / )
Content:
1 Stück
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Low overall height |
| ✔ Switching output voltage on and off via remote signal |
| ✔ Sensor connection for correct voltage at the load |
| ✔ DC-OK signal |
| ✔ Internal auxiliary voltage 5V/0.5A |
| ✔ Trimming function: output voltage and current 40...110%, each with external voltage 2...5.5V DC |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 15,7A |
| Power: | 750W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 43...55VDC |
| Efficiency: | 92% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

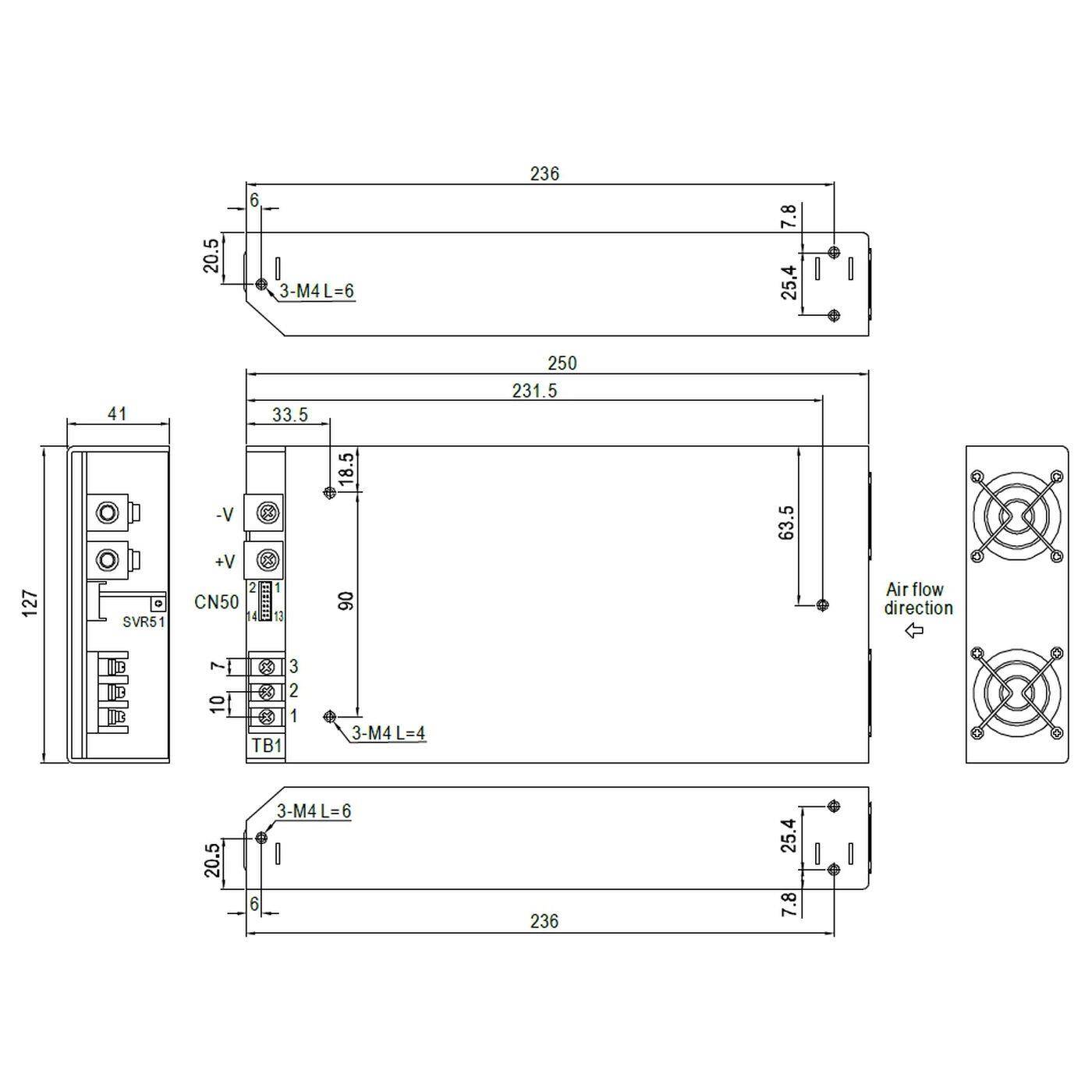

| Length: | 250mm |
| Width: | 127mm |
| Height: | 41mm |
