MEAN WELL RSP-3000-12 2400W 12V 200A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005587
Model:
RSP-3000-12
Shipping weight:
4 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
Regular price:
€500.00
(€0.00* / )
Content:
1 Stück
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Low idle power |
| ✔ Parallel function |
| ✔ active AC input current limiting |
| ✔ active current distribution up to 6000W (1+1 power supplies) |
| ✔ Switching output voltage on and off via remote signal |
| ✔ Power-fail signal |
| ✔ Sensor connection for correct voltage at the load |
| ✔ internal auxiliary voltage 12V/0.1A |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 12V |
| Output current: | 200A |
| Power: | 2400W |
| Input voltage (min...max): | 180...264VAC |
| Output voltage (min...max): | 10,8...13,2VDC |
| Efficiency: | 87,5% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

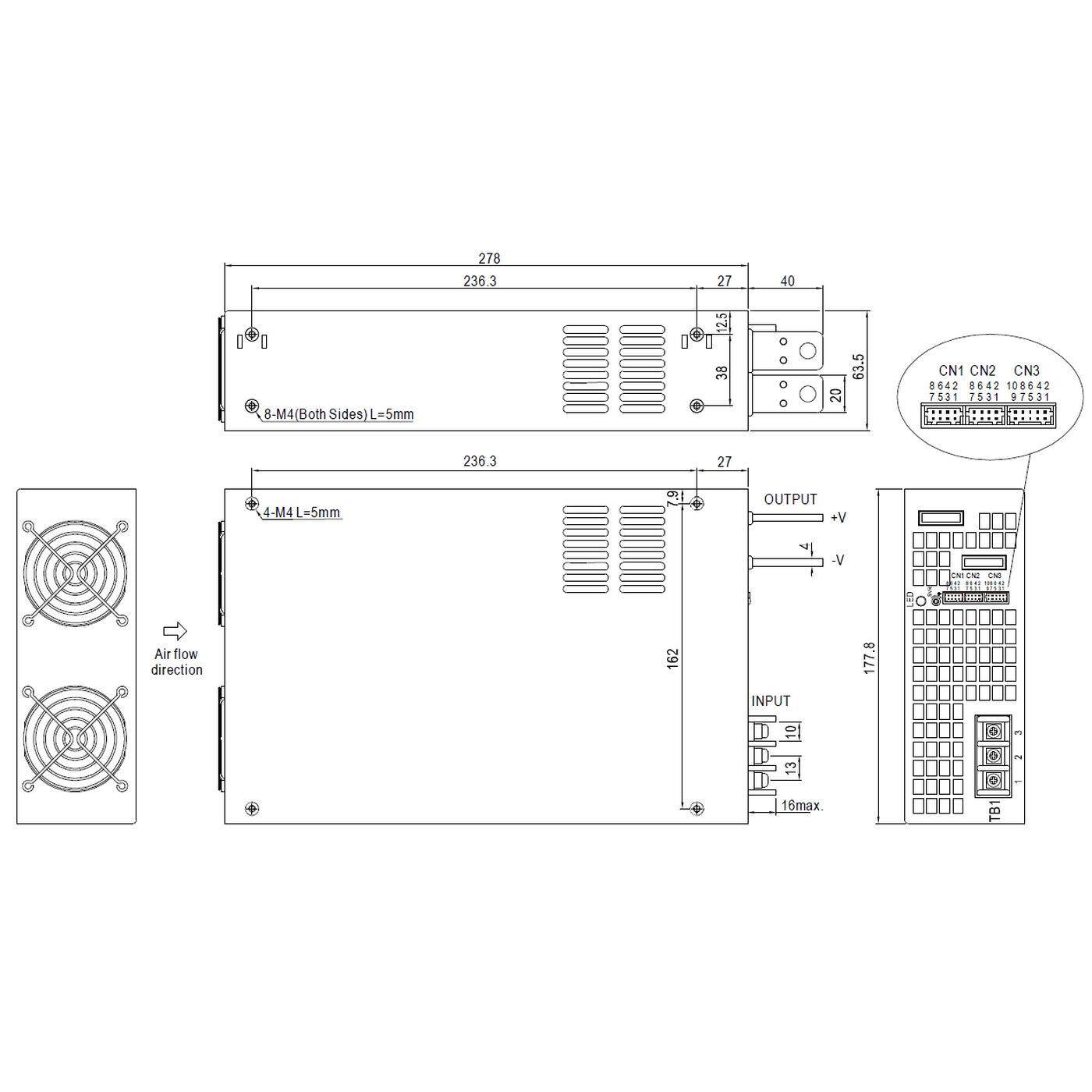

| Length: | 278mm |
| Width: | 177,8mm |
| Height: | 63,5mm |
