MEAN WELL NDR-480-24 480W 24V 20A Din Rail power supply DIN-RAIL
Available, delivery time: 1-3 days
Article-No.:
IT-006400
Model:
NDR-480-24
Shipping weight:
1.5 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€85.00
|
| 3 - 5 |
€84.15
|
| 6 - 10 |
€83.30
|
| 11 - 20 |
€82.45
|
| 21 - 50 |
€82.45
|
| From 51 |
€82.45
|
Content:
1 Stück
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ LED display for DC OK |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 20A |
| Power: | 480W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 24...28VDC |
| Efficiency: | 93% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

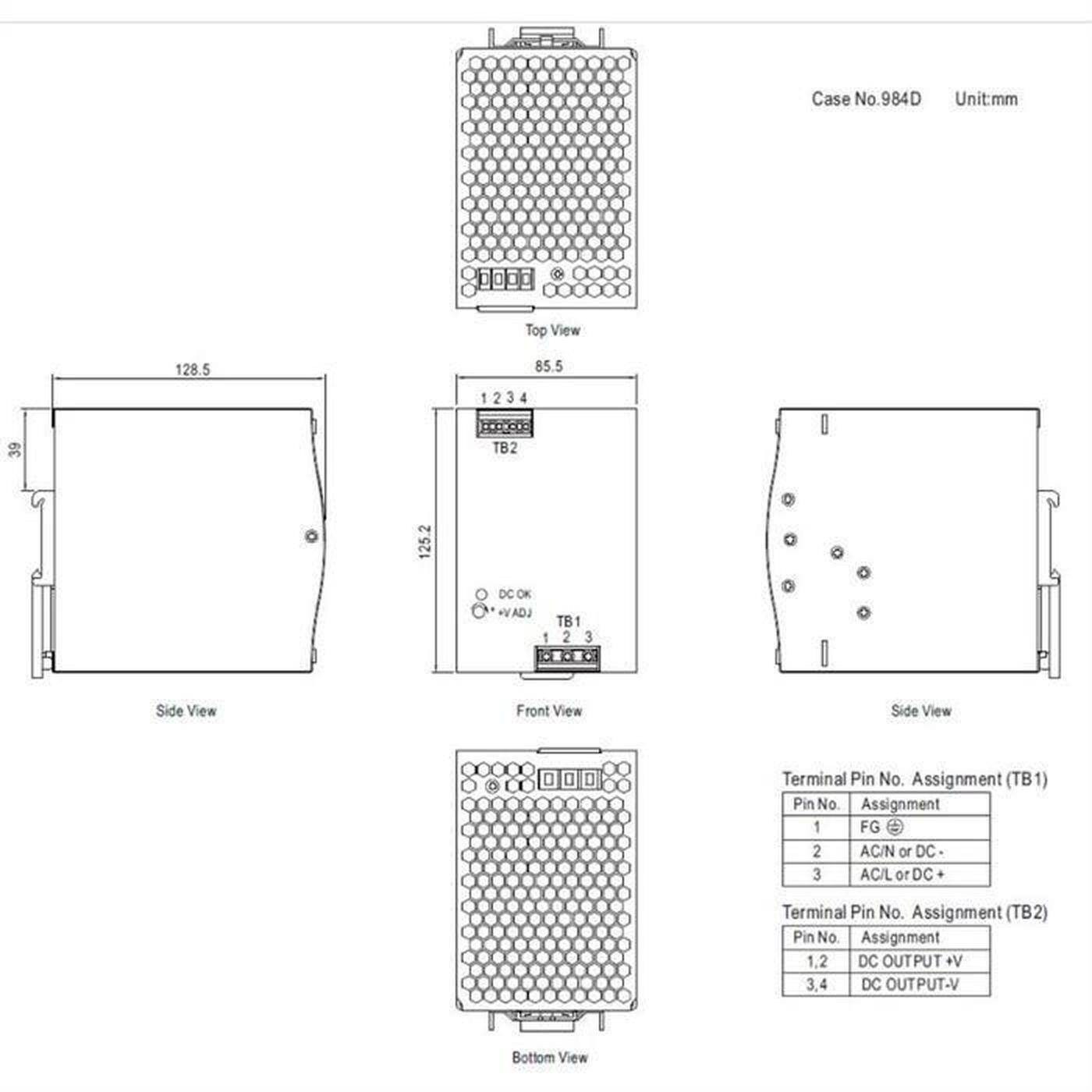

| Length: | 125,5mm |
| Width: | 85,5mm |
| Height: | 128,5mm |
